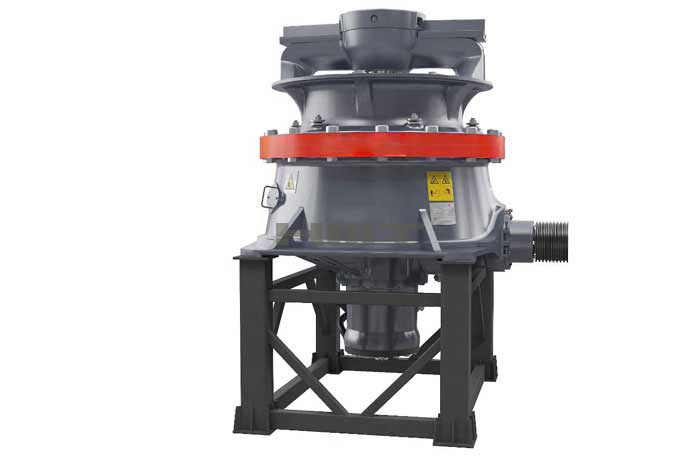

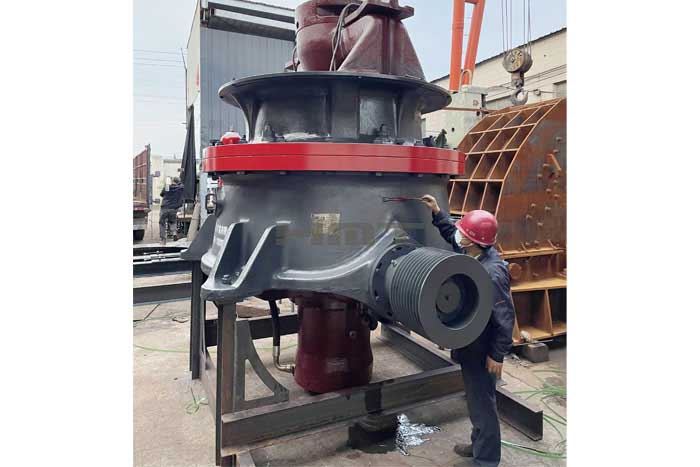

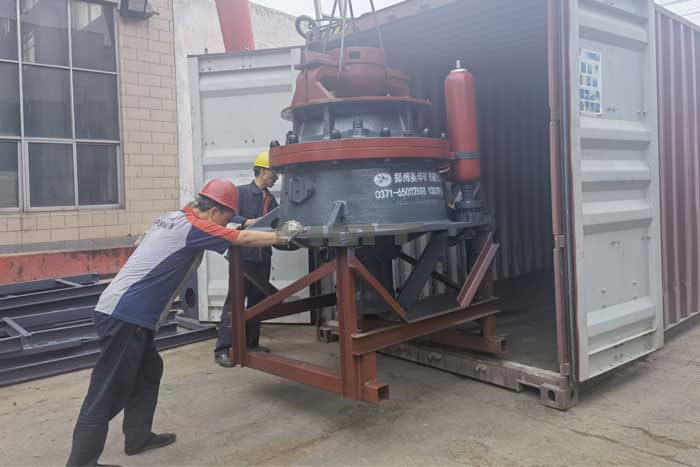

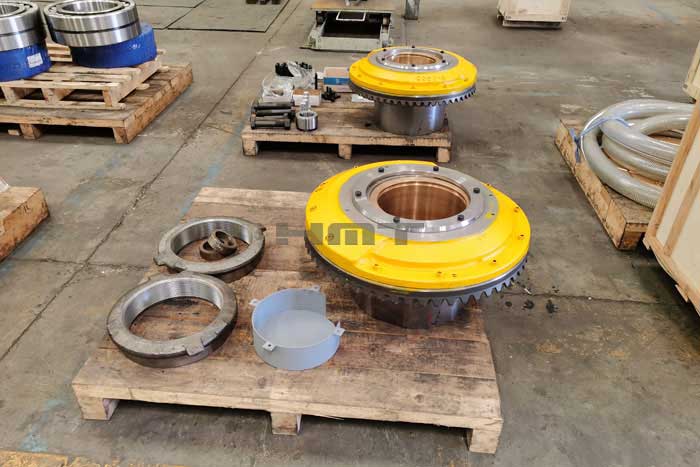

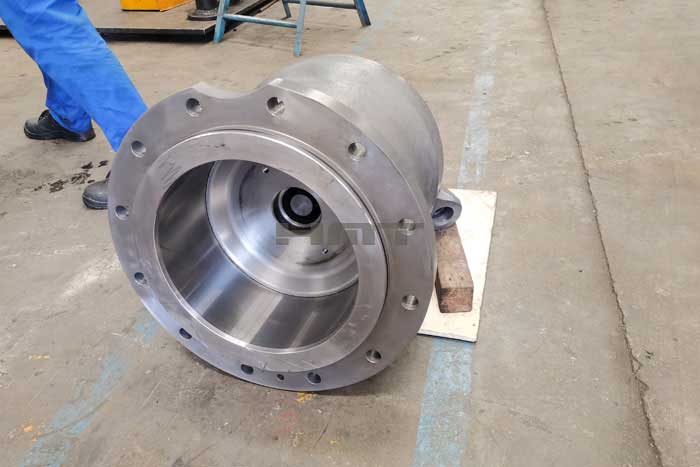

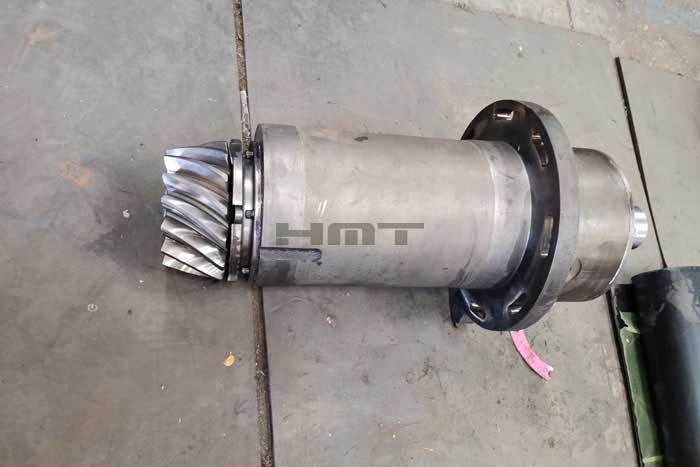

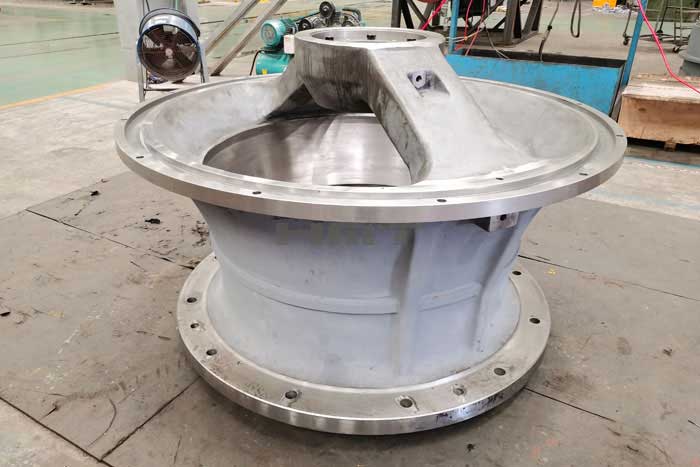

MCS/MCH Single-cylinder Hydraulic Cone Crusher

CAPACITY : 30-740t/h

MAX FEEDING SIZE : 18-300mm

APPLICATION : Metallurgical, aggregate, building material industries, etc.

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

Iron ore
Copper ore
Slag
Diabase

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

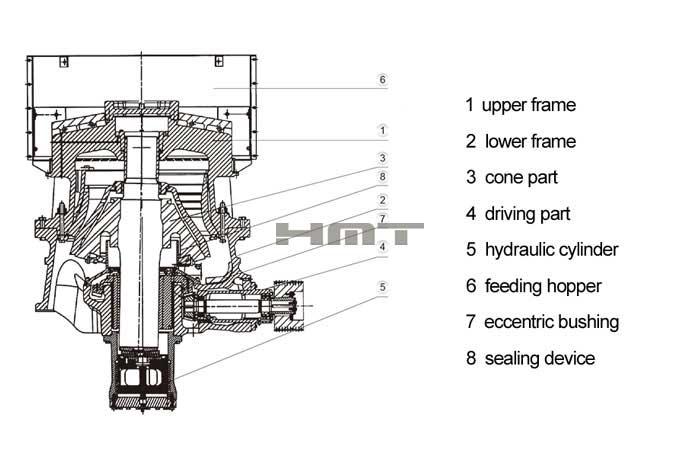

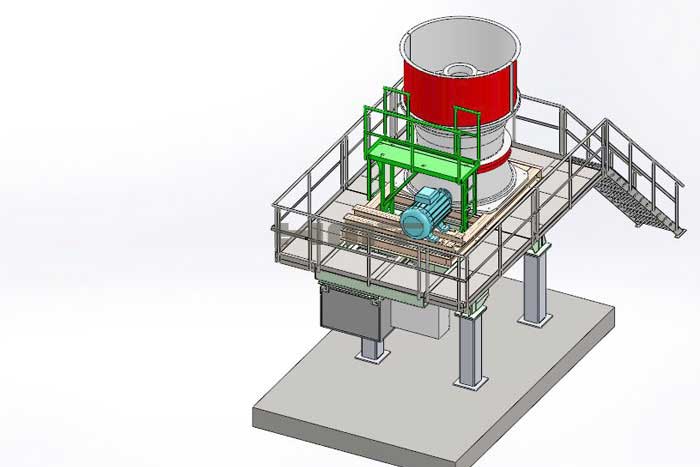

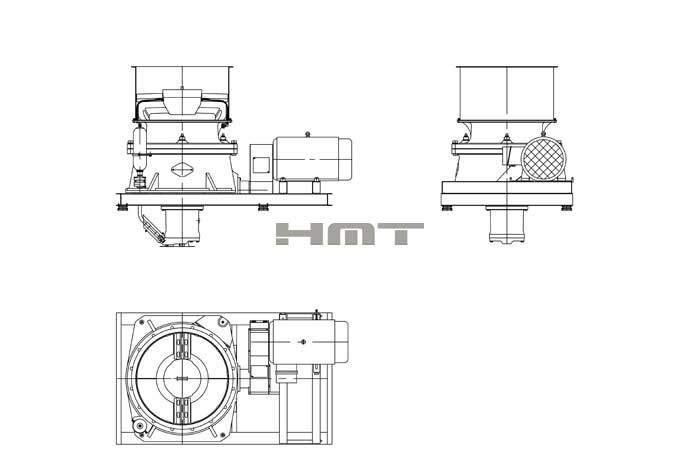

MCS/MCH single cylinder hydraulic cone crusher has H and S two series, S series moving cone liner Angle is large, mainly used for large feed particle size of the second stage crushing or pebble primary crushing; The Angle of H series moving cone liner is smaller than that of S series, and the downward crushing force in the crusher is larger, which is mainly used for secondary or tertiary crushing.

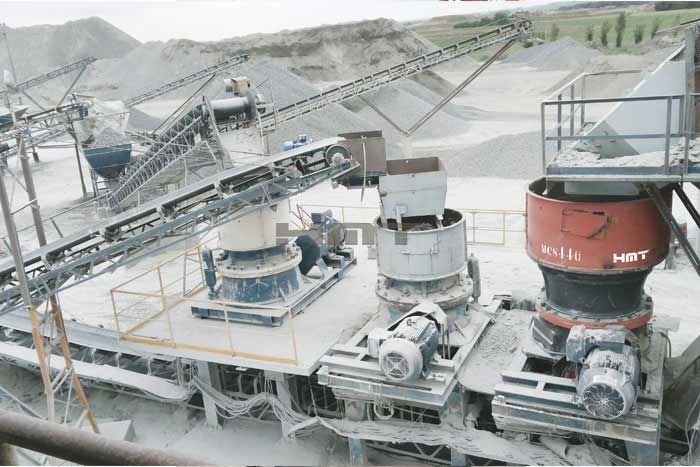

Application: Widely used in metallurgy, construction, hydropower, transportation, building materials and other industrial fields.

Features

1 Advanced hydraulic technology offers easy operation and maintenance

2 Resistant wear part consumption and low operation cost

3 Optimized cavity, higher capacity,better quality

4 Large feeding opening design

5 Easy cavities exchange

PRODUCT DATA:

MCS - Medium Crushing

Model	Cavity Type	Max Feed edge	Motor Power	Capacity at CSS (Close side setting) （t/h）									Weight
Model	Cavity Type	(mm)	(kw)	16mm	19mm	22mm	25mm	32mm	38mm	44mm	51mm	54mm	(t)
MCS420	Extra Coarse (EC)	240	90		80-90	85-100	90-130	105-195	120-170				6.8
MCS420	Coarse (C)	200	90	65-75	70-80	75-110	80-145	95-130					6.8
MCS430	Extra Coarse (EC)	360	160			115-135	125-145	145-265	165-355	185-395	205-295	215-245	12
MCS430	Coarse (C)	300	160		100-115	110-155	115-165	135-290	150-330	170-305			12
MCS440	Extra Coarse (EC)	450	250		235-270	250-290	315-540	350-600	365-525				19.3
MCS440	Coarse (C)	400	250	205-235	225-325	240-345	300-515	335-385					19.3
MCS660	Extra Coarse (EC)	560	315			295-340	370-635	410-825	430-985	490-1125	525-1210	560-1130	35.7
MCS660	Coarse (C)	500	315		265-305	285-405	355-710	392-905	410-945	470-945	505-725		35.7

MCH - Fine Crushing

Model	Cavity Type	Max Feed edge	Motor Power	Capacity at CSS (Close side setting) （t/h）									Weight
Model	Cavity Type	(mm)	(kw)	6mm	8mm	10mm	13mm	16mm	19mm	32mm	38mm	51mm	(t)
MCH420	Extra Coarse (EC)	130	90			45-55	50-100	55-105	60-115	75-145			5.3
	Coarse (C)	90				45-60	45-105	50-110	55-120	70-80
	Medium (M)	64			35-50	40-85	40-90	45-90	50-70
	Medium Fine (MF)	48		35-40	40-75	40-80	45-80	45-60
	Fine (F)	38		30-60	30-60	36-85	35-55	40-55
	Extra Fine (EF)	18		30-40（80% finess is less than 4.5-5.5mm）
MCH430	Extra Coarse (EC)	190	160				70-125	75-170	80-185	105-240	115-240		9.2
	Coarse (C)	145				70-85	65-150	70-165	75-175	100-225	110-170
	Midium Coarse (MC)	115				55-65	60-160	65-175	70-185	95-165
	Midium (M)	90			60-75	65-100	70-150	75-165	80-175	105-120
	Medium Fine (MF)	65			60-70	65-120	70-130	75-145	80-145
	Fine (F)	50		50-90	50-95	55-100	60-110	65-120	70-120
	Extra Fine (EF)	26		70-90（80% finess is less than 5-5.6mm）
MCH440	Extra Coarse (EC)	210	250					115-230	120-315	160-410	175-455		14.3
	Coarse (C)	170					100-115	110-250	115-335	150-435	165-385
	Midium Coarse (MC)	140					95-140	105-300	115-325	145-380	160-280
	Midium (M)	105					115-215	125-320	135-345	175-325	195-225
	Medium Fine (MF)	80				115-130	125-260	135-280	145-300	185-285
	Fine (F)	65		80-95	90-155	95-200	105-220	110-235	120-255	155-240
	Extra Fine (EF)	35		100-125（80% finess is less than 6-7.5mm）
MCH660	Extra Coarse (EC)	300	315					175-205	190-390	235-630	270-695	330-585	24.2
	Coarse (C)	210						170-220	185-425	240-670	265-740	315-405
	Midium Coarse (MC)	170						160-290	175-490	225-635	250-575
	Midium (M)	130					180-220	195-340	210-505	275-575	300-465
	Medium Fine (MF)	100					190-220	205-425	220-455	285-520	320-415
	Fine (F)	75				165-260	195-350	210-375	225-405	290-460	325-370
	Extra Fine (EF)	55				150-180	210-335	225-365	245-345

Note
1)The reference weight of the machine in the table does not include the weight of the motor, electronic control equipment, lubrication station and hydraulic station.
2)The above capacity of the crusher in the table is for the design throughput capacity as per below conditions:
1. Water content in raw material does not exceed 4%, does not contain clay.
2. The fine granular material with feed size smaller than the discharge port accounts for less than 10% of the total feed.
3. feed loose density 1.6t /m3, compressive strength 150 Mpa.
4. The data of "capacity" in the table will be different according to the physical properties of mine stone, feeding method, feeding particle size, water content and clay water content. The "power" of closed circuit production is slightly lower than that of open circuit production.
