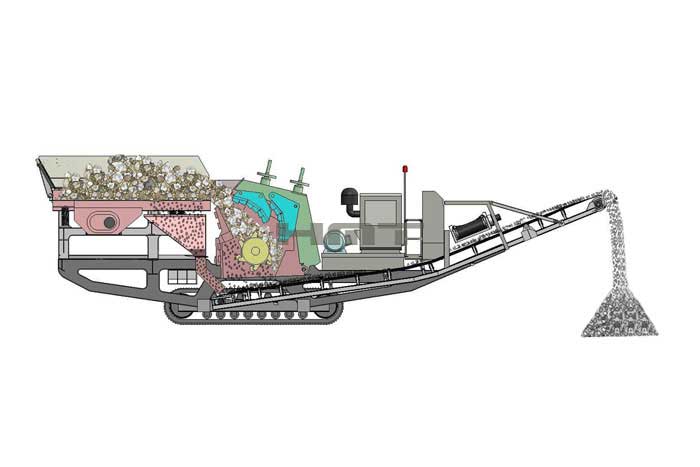

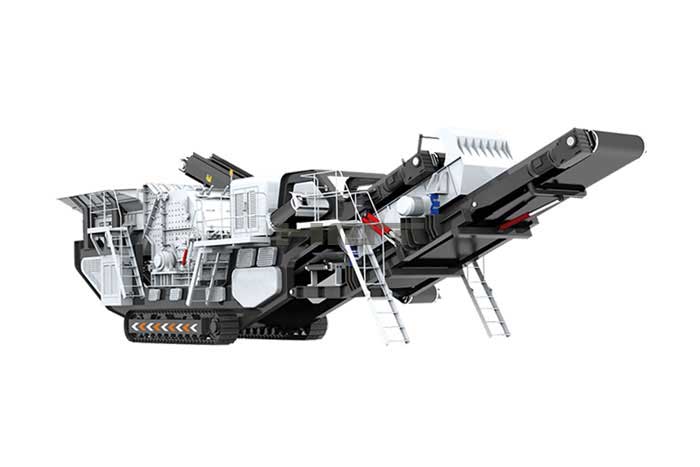

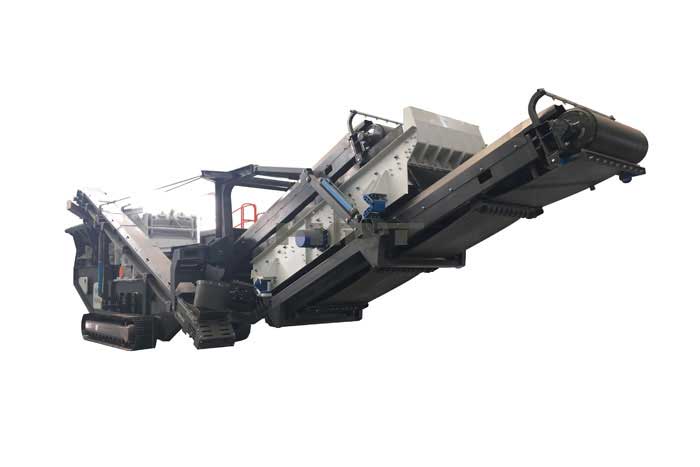

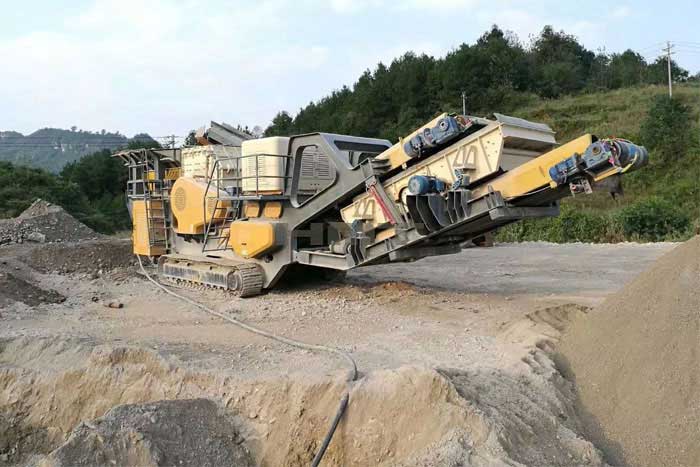

MT-I Tracked Mobile Impact Crushing Plant

CAPACITY : 30-200t/h

MAX FEEDING SIZE : 50-700mm

APPLICATION : limestone, granite, basalt, river stone, iron ore, gold ore, copper ore, andesite, gabbro

RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.

River pebbles
limestone
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

Tracked mobile crushing plant is a kind of high efficiency crushing equipment, which adopts self-drive mode, advanced technology and complete functions. This device can reach any location on the work site under any terrain conditions. This can reduce the handling of materials and facilitate the coordination of all auxiliary mechanical equipment. With wireless remote control, the crusher can be easily driven onto a trailer and transported to the work site. Because there is no need for assembly time, the equipment can be put into work immediately upon arrival at the work site. The mobile crushing station has a large crushing ratio, and its optimized design can meet the most needed technical characteristics of the crusher, with high productivity and uniform particle size of the finished material.
A new type of mobile crushing station developed by engineers combining the advantages of the most advanced and stable mobile crushing station in the world.

Features

1. Light weight, small size, especially suitable for narrow site work;

2. Convenient transportation, track walking, no damage to the road surface, equipped with multi-functional accessories, a wide range of adaptation;

3. Through the combination of different models, a powerful crushing operation line can be formed to complete multi-demand processing operations;

4. The whole machine adopts all-wheel drive, which can realize in-situ steering, standard configuration, quick change device, with perfect safety protection function, especially suitable for narrow and complex areas;

5. Fuel saving, fuel saving rate of up to 25%;

6. Random attached power group - optimal design;

7. Can climb operations to meet the crushing requirements of mines, hydropower stations, coal mines and other projects

PRODUCT DATA:

Model		MT-I150FS	MT-I150F	MT-I250FS	MT-I250F	MT-I350FS	MT-I350F
Feeder	Model	GZT/ZSW3895	GZT/ZSW3895	GZT/ZSW4211	GZT/ZSW4211	GZT1245	GZT1245
	Power(kw)	2×5.5kw	2×5.5kw	2×5.5kw	2×5.5kw	2×7.5kw	2×7.5kw
	Feeding Capacity(t/h)	100-380t/h	100-380t/h	200-400t/h	200-400t/h	220-500t/h	220-500t/h
	Feeding Height(mm)	3850mm	3850mm	4300mm	4300mm	4400mm	4400mm
	Hopper Volume(m3)	4.5m³	4.5m³	6m³	6m³	8m³	8m³
Impact crusher	Model	NP1110M/CI150	NP1110M/CI150	NP1213M/CI250	NP1213M/CI250	NP1313M	NP1313M
	Power(kw)	160kw	160kw	250kw	250kw	250kw	250kw
	Adjusting mode for discharge open	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Main Belt Conveyor	Size WxL (mm)	1000×10000mm	1000×10000mm	1000×10000mm	1000×10000mm	1200×10000mm	1200×10000mm
	Discharge Height(mm)	3150mm	3150mm	3150mm	3150mm	3150mm	3150mm
	Power(kw)	11kw	11kw	11kw	11kw	15kw	15kw
Side Belt Conveyor	Size WxL (mm)	500×3800mm	500×3800mm	500×3800mm	500×3800mm	500×3800mm	500×3800mm
	Discharge Height(mm)	2200mm	2200mm	2200mm	2200mm	2200mm	2200mm
	Power(kw)	3kw	3kw	3kw	3kw	3kw	3kw
Small Vibrating Screen	Model	2KS1535	————	2KS1545	————	2KS1545	————
Small Vibrating Screen	Power(kw)	2×3.7kw	————	2×5.5kw	————	2×5.5kw	————
Discharge Belt Conveyor under Vibrating Screen 1#	Size WxL (mm)	1200×6500mm	————	1200×6500mm	————	1200×6500mm	————
	Discharge Height(mm)	2600mm	————	2600mm	————	2600mm	————
	Power(kw)	7.5kw	————	7.5kw	————	7.5kw	————
Transition Belt Conveyor 1#	Size WxL (mm)	500×2000mm	————	500×2000mm	————	500×2000mm	————
	Discharge Height(mm)	1300mm	————	1300mm	————	1300mm	————
	Power(kw)	2.2kw	————	2.2kw	————	2.2kw	————
Transition Belt Conveyor 2#	Size WxL (mm)	500×2000mm	————	500×2000mm	————	500×2000mm	————
	Discharge Height(mm)	900mm	————	900mm	————	900mm	————
	Power(kw)	2.2kw	————	2.2kw	————	2.2kw	————
Discharge Belt Conveyor 2#	Size WxL (mm)	500×4500mm	————	500×4500mm	————	500×4500mm	————
	Discharge Height(mm)	2000mm	————	2000mm	————	2000mm	————
	Power(kw)	3kw	————	3kw	————	3kw	————
Returning Belt Conveyor	Size WxL (mm)	500×8600mm	————	500×8600mm	————	500×8600mm	————
Returning Belt Conveyor	Power(kw)	4kw	————	4kw	————	4kw	————
Magnetic Separator	Model	RCYQ-10	RCYQ-10	RCYQ-10	RCYQ-10	RCYQ-12	RCYQ-12
Magnetic Separator	Motor Power(kw)	3kw	3kw	3kw	3kw	4kw	4kw
Dual-power Assembly	Driving Mode	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity
Capacity(t/h)		100-300t/h	100-300t/h	160-400t/h	160-400t/h	200-500t/h	200-500t/h
Weight		55t	46t	60t	54T	68T	59T
Overall Sizes	Transportation Length(mm)	16500mm	15000mm	17500mm	14500mm	18500mm	15000mm
	Transportation Width(mm)	3400mm	3100mm	3460mm	3350mm	3650mm	3300mm
	Transportation Height(mm)	3700mm	3700mm	3850mm	3700mm	3900mm	3800mm

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
