CAPACITY : 70-800t/h
MAX FEEDING SIZE : 30-100mm
APPLICATION : Engineering, highway,railway, passenger line, bridges,airport runways,municipal engineering,high-rise
RAW MATERIALS :Iron ore, copper ore, cement, artificial sand, fluorite, limestone, slag, etc.
Iron ore
copper ore
Artificial sand
Slag
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

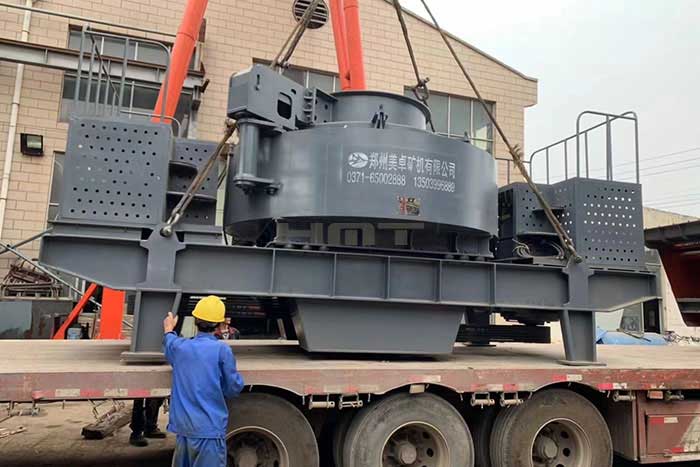

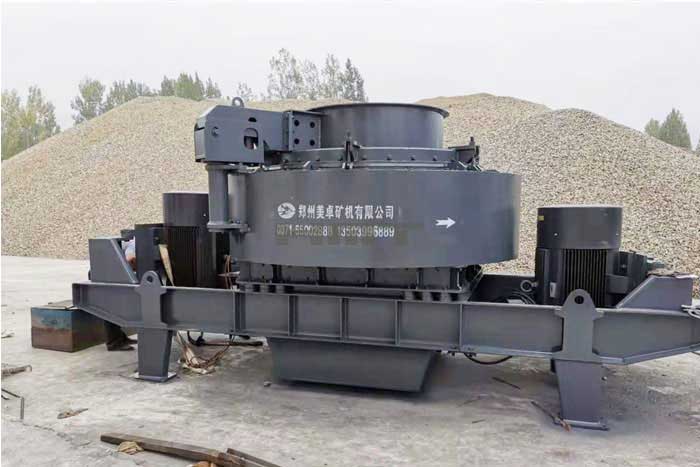

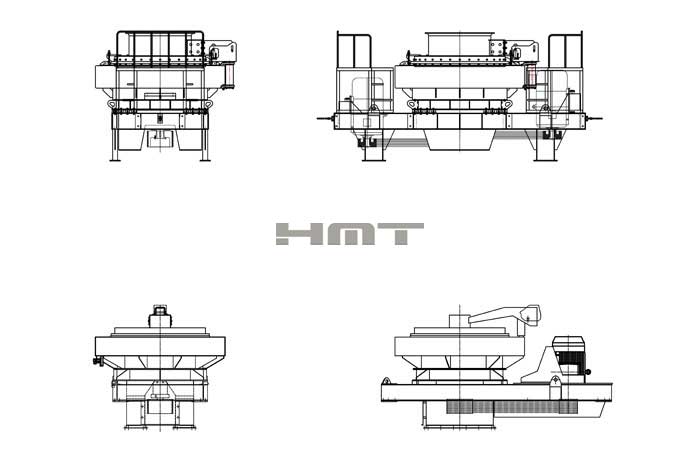

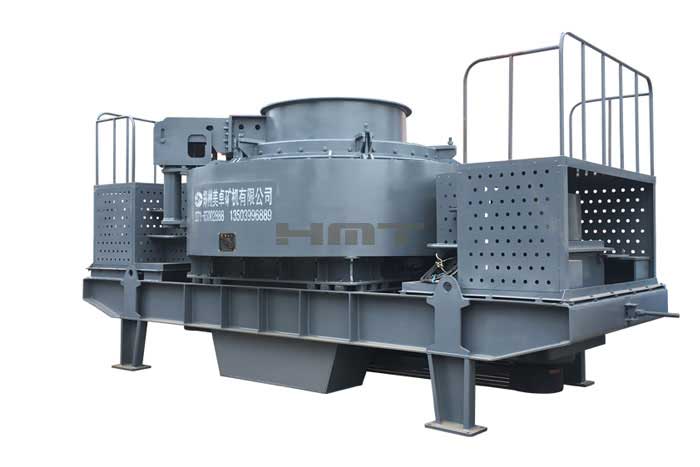

MRV series high speed centrifugal impact crusher (also known as sand making machine, shaping machine) is a high speed crusher developed by our company by absorbing foreign technology and studying the working conditions of domestic market. It has the characteristics of "one machine multi-purpose", make and, reshape stone and produce sand and aggregates.
It has been improved to avoid the problems of blockage, low production capacity, poor grain shape, small feed particle size and other defects from some other sand making machines, the finished products are of full grain shape, reasonable grading, stable output. It is widely used in cement building materials, commercial concrete mortar stations, sand and stone fields, highways, asphalt mixing stations, municipal engineering, water conservancy and hydropower and other fields of mechanical sand production and stone shaping operations, as well as the grinding process in the mining field and building materials, metallurgy, chemical industry, mining, refractory materials, cement, abrasives and other industries.
1. Large feed size, production capacity increased by 50%, energy consumption reduced by 40-50%;
2. Deep cavity rotor optimization, the use of double-cavity rotor structure;
3. Thin oil lubrication, air cooling and cooling system.;
4. Rotor modular design, no need to reserve the impeller during use;
6. Optimize the launch port and internal streamline design;
7. Optimize the structure of the feeding port;
8. Optimize bearing position structure design;
9. A multi-purpose machine, a variety of working modes;
10. Hydraulic cover opening device;
| Model | Max feeding size | Capacity | Motor Power | Discharge Outlet | Linear Speed | Bearing Lubrication Mode | High Performance Hydraulic Lubrication Station | ||||||
| (mm) | (t/h) | (kw) | （m/s） | Oil Pump Power（kw） | Safeguard | Flow （L/min） | Tank Volume（L） | Oil Pump Presure（bar） | Tank Heater Power (kw) | ||||
| MRV0722 | ≤30（35） | 70-150 | single motor 90-160kw | 2 | 65-80 | Thin Oil Lubrication | 2×0.75kw | Double Oil Pump Intelligent Switching, No Oil Flow, No Oil Pressure Automatic Stop; Air Cooling Intelligent Cooling; Automatic Start Heating In Winter. | 10L/min | 200L | 150bar | 2×4kw | |
| MRV0922 | ≤30（40） | 100-250 | single motor 160-250kw | 2×90-132kw | 2 | ||||||||
| MRV1022 | ≤30（50） | 150-350 | single motor 250-315kw | 2×132-200kw | 2 | ||||||||
| MRV1222 | ≤40（80） | 220-580 | single motor 315-400kw | 2×200-250kw | 2 | ||||||||
| MRV1233 | ≤50（100） | 280-650 | 2×250-315kw | 2 | |||||||||
| MRV1426 | ≤50（100） | 300-795 | 2×355-400kw | 2 | |||||||||
Note:
1. The above processing capacity in the table is the parameter corresponding to the rock with a loose density of 1.6t/m3;
2. The above processing capacity will be changed as per the nature of the material, feeding method, feeding particle size, rotor linear speed.
