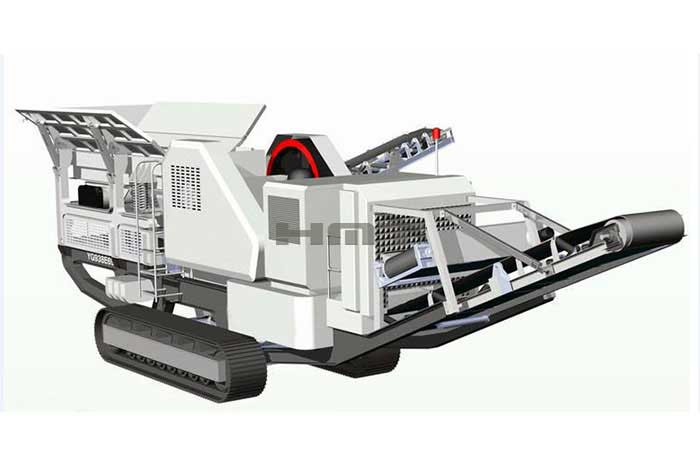

MT-J Tracked Mobile Jaw Crushing Plant

CAPACITY : 30-200t/h

MAX FEEDING SIZE : 50-700mm

APPLICATION : limestone, granite, basalt, river stone, iron ore, gold ore, copper ore, andesite, gabbro

RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.

River pebbles
limestone
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

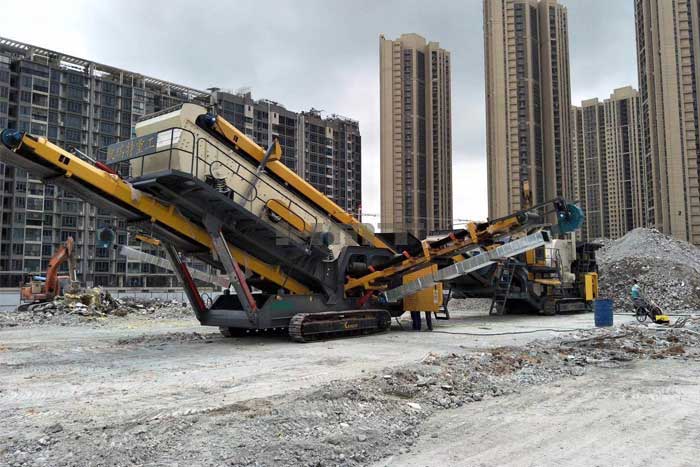

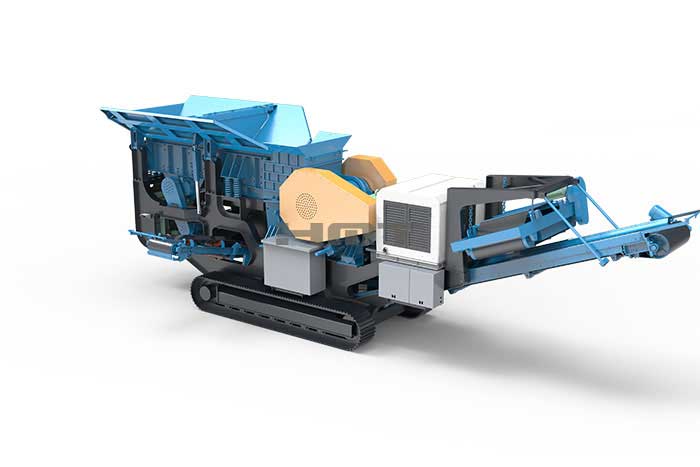

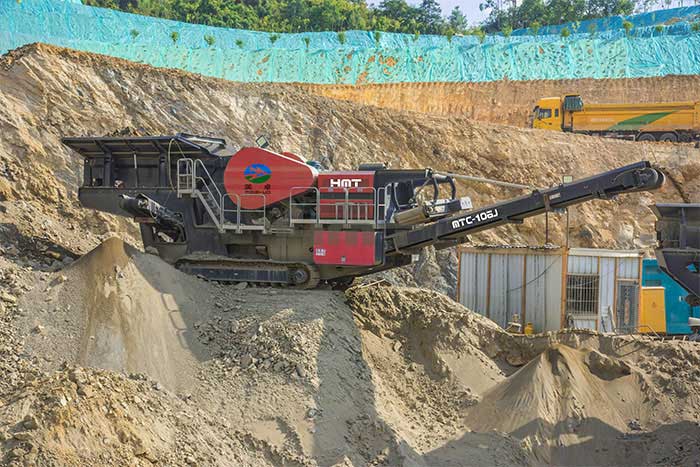

Tracked mobile crushing plant is a kind of high efficiency crushing equipment, which adopts self-drive mode, advanced technology and complete functions. This device can reach any location on the work site under any terrain conditions. This can reduce the handling of materials and facilitate the coordination of all auxiliary mechanical equipment. With wireless remote control, the crusher can be easily driven onto a trailer and transported to the work site. Because there is no need for assembly time, the equipment can be put into work immediately upon arrival at the work site. The mobile crushing station has a large crushing ratio, and its optimized design can meet the most needed technical characteristics of the crusher, with high productivity and uniform particle size of the finished material.
A new type of mobile crushing station developed by engineers combining the advantages of the most advanced and stable mobile crushing station in the world.

Features

1. Light weight, small size, especially suitable for narrow site work;

2. Convenient transportation, track walking, no damage to the road surface, equipped with multi-functional accessories, a wide range of adaptation;

3. Through the combination of different models, a powerful crushing operation line can be formed to complete multi-demand processing operations;

4. The whole machine adopts all-wheel drive, which can realize in-situ steering, standard configuration, quick change device, with perfect safety protection function, especially suitable for narrow and complex areas;

5. Fuel saving, fuel saving rate of up to 25%;

6. Random attached power group - optimal design;

7. Can climb operations to meet the crushing requirements of mines, hydropower stations, coal mines and other projects

PRODUCT DATA:

Model		MT-JC96	MT-JC106	MT-JC116	MT-JC120	MT-JC1380	MT-JC130
Jaw Crusher	Model	MC96	MC106	MC116	MC120	MC3054	MC130
	Size of Feed Opening(mm)	930x580mm	1060x700mm	1150x800mm	1200x870mm	1380x760mm	1300x1000mm
	Discharge Opening (mm)	60-175mm	70-200mm	70-200mm	70-175mm	70-200mm	100-250mm
	Max Feed edge(mm)	500mm	580mm	650mm	700mm	650mm	800mm
	Motor Power(kw)	90kw	110kw	132kw	160kw	160kw	160kw
Vibrating Feeder	Model	GZT/ZSW3895	GZT/ZSW4211	GZT/ZSW4211	GZT1245	GZT1345	GZT/ZSW1345
	Hopper Volume(m3)	4m3	5m3	6m3	7m3	7m3	10m3
	Hopper Volume(m3)	Foldable	Foldable	Foldable	Foldable	Foldable	Foldable
	Feeding Height(mm)	3600mm	3900mm	4000mm	4400mm	4000mm	5800mm
	Motor Power(kw)	11kw	15kw	15kw	15kw	22kw	22kw
Main Conveyor	Model	B1000-12m	B1000-12m	B1200-13m	B1200-13m	B1200-13m	B1200-13m
	Discharge Height(mm)	3200mm	3200mm	3200mm	3400mm	3400mm	3500mm
	Motor Power(kw)	11kw	11kw	11kw	11kw	11kw	11kw
Side Conveyor	Model	B500-3.8m	B500-3.8m	B500-3.8m	B500-3.8m	B500-3.8m	B650-4m
	Discharge Height(mm)	1800mm	1800mm	1800mm	2200mm	2200mm	2500mm
	Motor Power(kw)	3kw	3kw	3kw	3kw	3kw	3kw
Magnetic Separator	Model	RCYQ-10	RCYQ-10	RCYQ-12	RCYQ-12	RCYQ-12	RCYQ-12
Magnetic Separator	Motor Power(kw)	3kw	3kw	4kw	4kw	4kw	4kw
Dual-power Assembly	Driving Mode	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity
class="bg283"Capacity(t/h)		100-250t/h	150-360t/h	200-450t/h	250-520t/h	210-650t/h	300-750t/h
Weight		32t	45t	52t	62t	63t	108t
Overall Sizes	Transportation Length(mm)	12450mm	14000mm	15600mm	16000mm	15500mm	19500mm
	Transportation Width(mm)	2500mm	2800mm	3000mm	3000mm	3000mm	3500mm
	Transportation Height(mm)	3100mm	3400mm	3700mm	3700mm	3600mm	3900mm

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
