PE/PEX Jaw Crusher

CAPACITY : 20-1300t/h

MAX FEEDING SIZE : 210-1200mm

APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

Basalt
Pebbles
Granite
Andesite

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

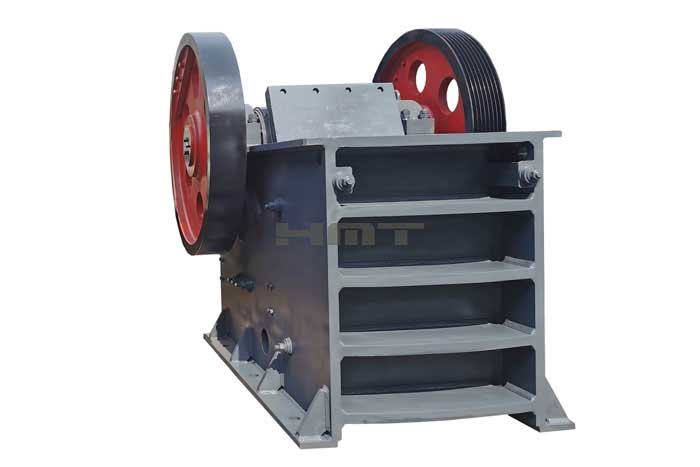

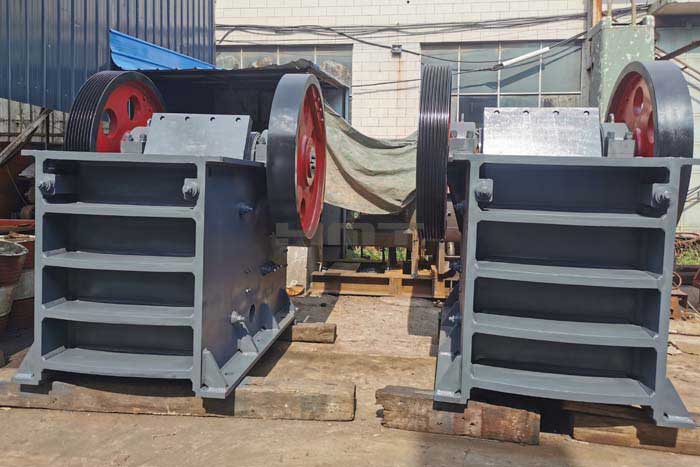

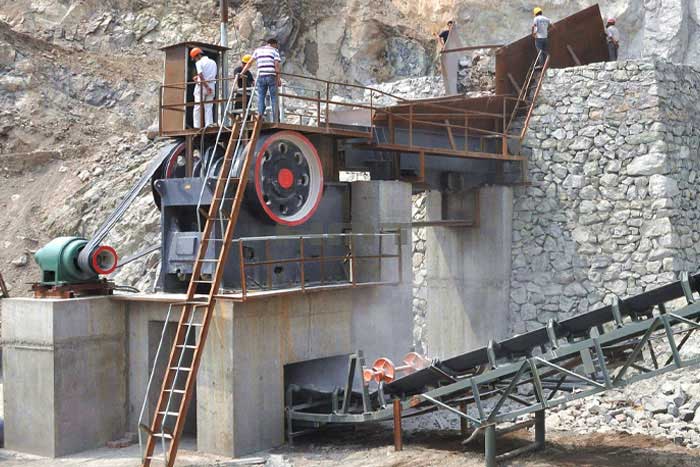

PE/PEX series jaw crusher is the earliest crushing equipment, because of its simple structure, strong and stable work, easy maintenance & maintenance & production and construction costs are relatively low, therefore, often used as a primary crusher for a variety of stone production line, ore crushing production line.

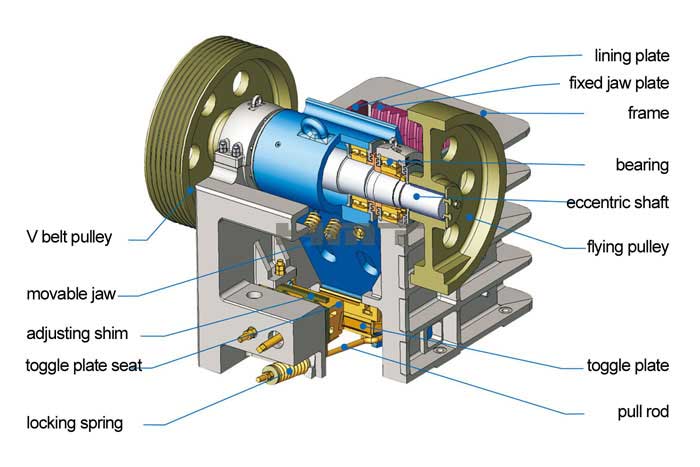

Widely used in mining, metallurgy, building materials, highway, railway, water conservancy and chemical industry and other industries, it can process all kinds of ores with compressive strength not higher than 320MPa to medium size at one time. The product is crushed by extruding, rubbing and grinding the material in the crushing chamber through the reciprocating motion of the moving jaw and the fixed jaw plate.
In recent years, in order to meet the needs of metallurgy, mining, construction and other crushing high-strength, high-hardness mines, specially developed heavy-duty jaw crusher.

Features

1. Deep cavity crushing, energy saving and environmental protection: Optimized crushing chamber, feed and crushing efficiency is greatly improved, single energy saved 15~30% for single machine while energy saved more than double for full system;

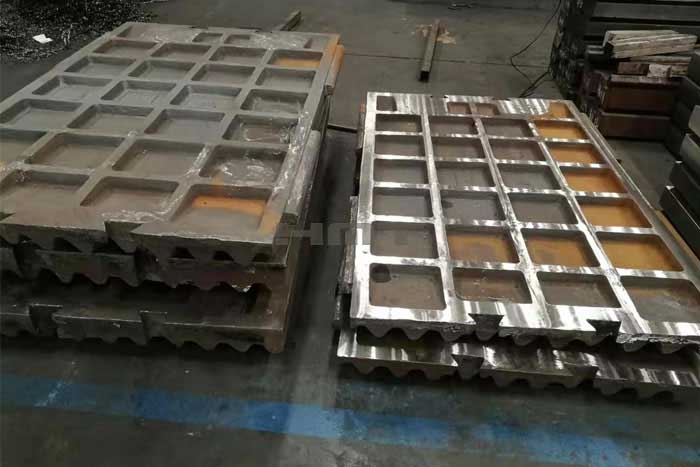

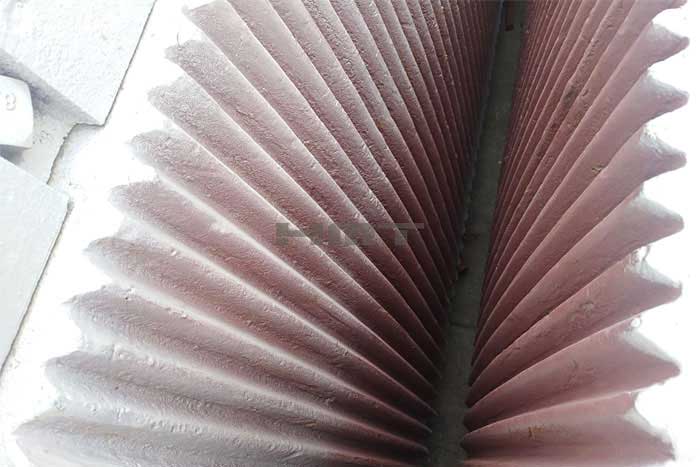

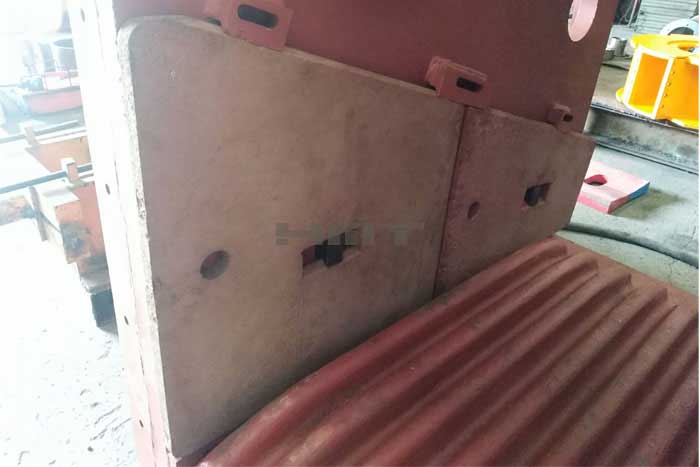

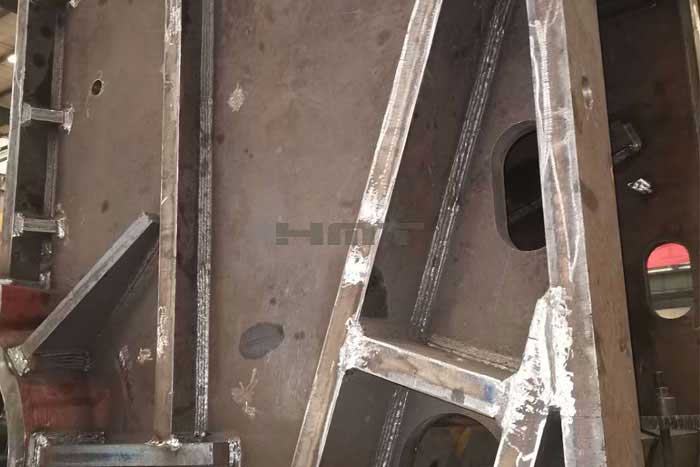

2. Strong bearing capacity, high stability: eccentric shaft forging billet processing, cast steel moving jaw assembly and high manganese steel jaw plate, equipment bearing capacity and stability is better;

3. Centralized lubrication, easy maintenance;

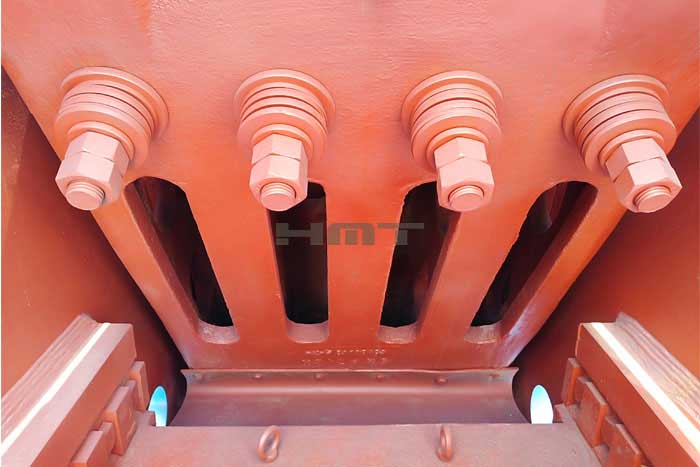

4. Gasket type discharge adjustment, large discharge adjustment range, can meet a variety of customer processing requirements;

5. Low noise, less dust;

6. Tilting principle, simple structure, easy operation and maintenance, low operating costs;

PRODUCT DATA:

Model	Size of Feed Opening	Max Feed edge	Discharge Opening Range	Eccentric Shaft speed	Capacity	Motor Power	Overall Dimension
Model	(mm)	(mm)	(㎜)	（r/min）	(t/h)	(kw)	(mm)
PE250×400	250×400	220	20-60	300	5-20	15	1300×1090×1270
PE400×600	400×600	340	40-100	275	15-60	30	1730×1730×1630
PE500×750	500×750	425	50-100	275	40-110	45-55	2053×1921×2000
PE600×900	600×900	500	65-160	250	90-180	75	2290×2206×2370

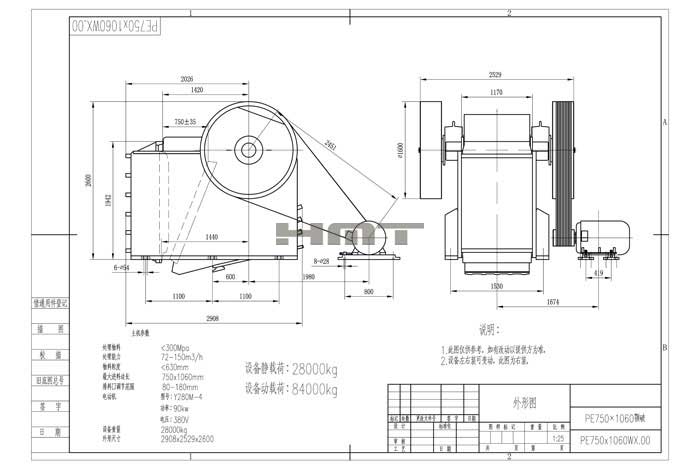

PE750×1060	750×1060	630	80-140	250	110-320	110	2655×2302×3110
PE870×1060	870×1060	700	170-270	250	190-375	110-132	2810×2430×2800
PE900×1200	900×1200	720	95-165	200	220-450	132-160	3800×3166×3045
PE1000×1200	1000×1200	800	200-300	200	280-560	160-185	5350×4280×3050
PE1200×1500	1200×1500	1000	150-300	180	400-800	200-220	6380×5310×3170
PE1500×1800	1500×1800	1200	210-360	180	700-1280	355-400	7460×6235×4249
PEX250×750	250×750	210	25-60	330	13-35	30	1380×1750×1540
PEX250×1000	250×1000	210	25-60	330	16-55	30	1560×1950×1390
PEX250×1200	250×1200	210	25-60	330	20-60	37	2140×1660×1500
PEX300×1300	300×1300	250	20-90	300	30-90	55-75	1750×2320×1724

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
