CAPACITY : 30-750t/h
MAX FEEDING SIZE : 45-80mm
APPLICATION : Stone mining, metallurgy industry, building material, highway, railway, and chemical,etc.
RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.)
River pebbles
limestone
Granite
Basalt
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

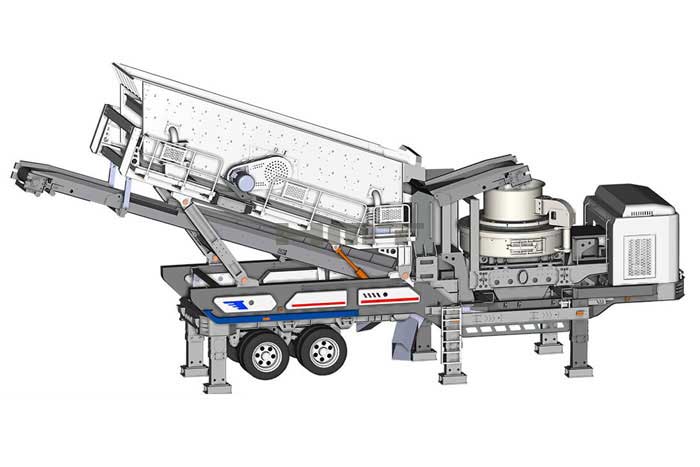

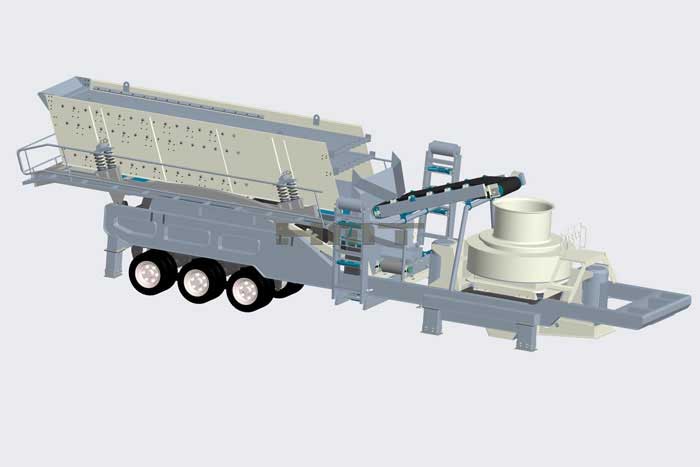

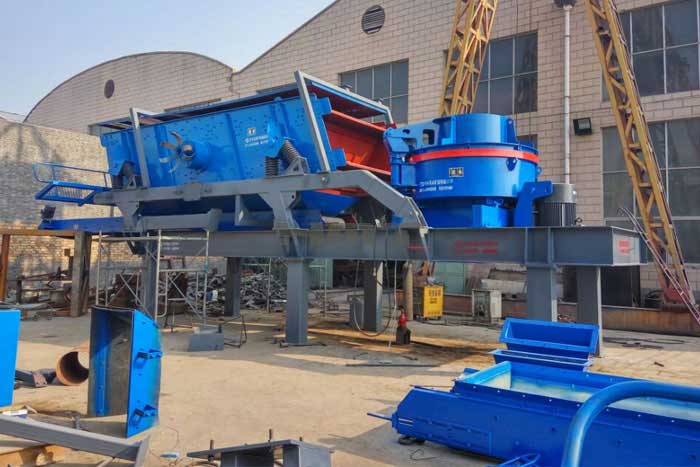

PW-V Tyre mounted sand making plant is equipped with mechanical high performance impact crusher (sand making machine). And tyre-mounted type feeder or strength vibrating screen.
Short length, light weight; Flexibility and adaptability to reduce material transport costs. Flexible combination - whether coarse crushing, fine crushing or sand making operations.

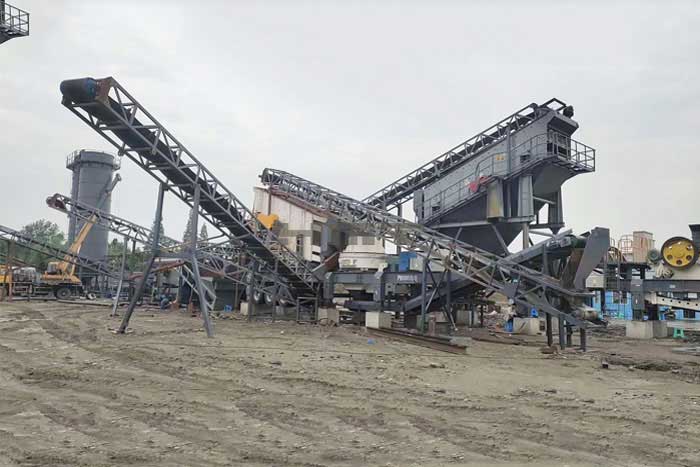

The mobile crushing station fills the gap in the field of mobile sand making, and its design purpose is to stand on the customer's position, to eliminate the obstacles brought by the crushing site and environment to the customer's crushing operation as the primary solution, and to provide customers with efficient and cost-reducing project operation hardware facilities.
1. Optimized matching for different models;
2. Excellent mobility, convenient operation;
3. Reliable performance, high efficiency;
4. Lower the cost of transportaion;
5. Reliable performance and convenient maintenance;

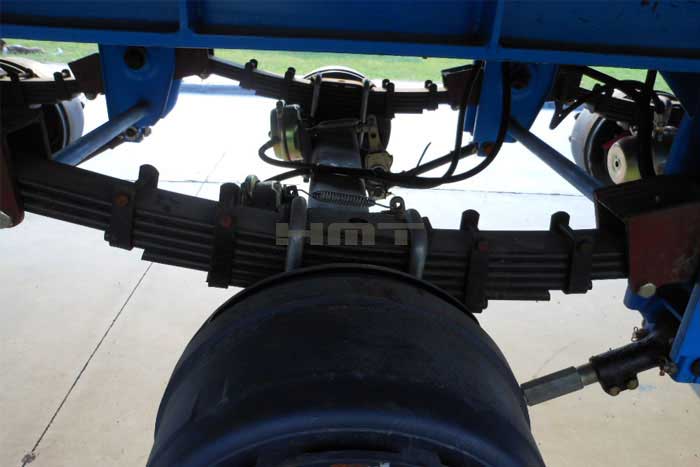

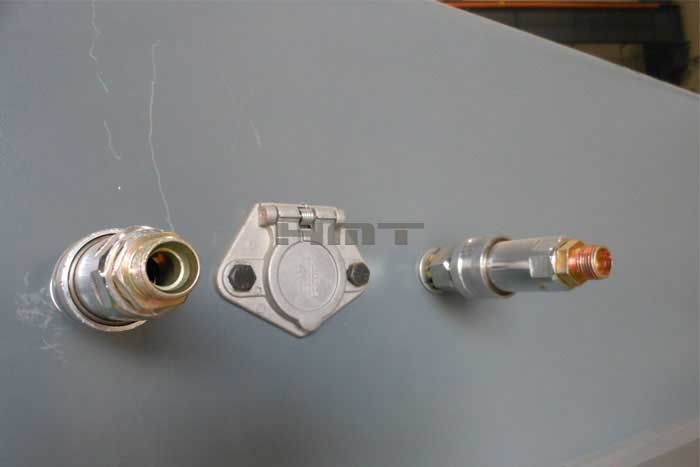

6. Standard lighting and braking system;

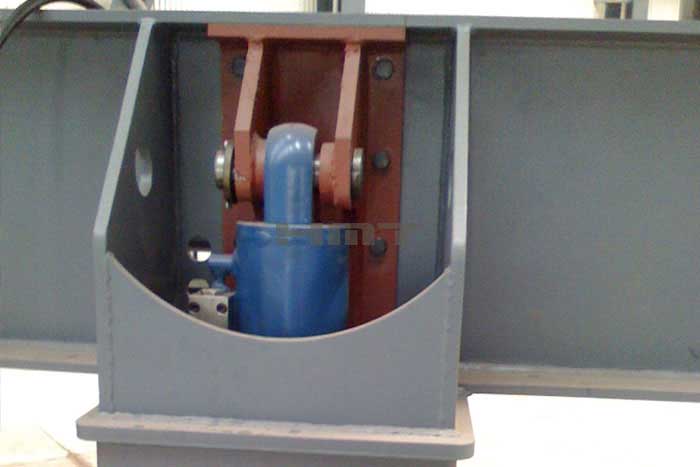

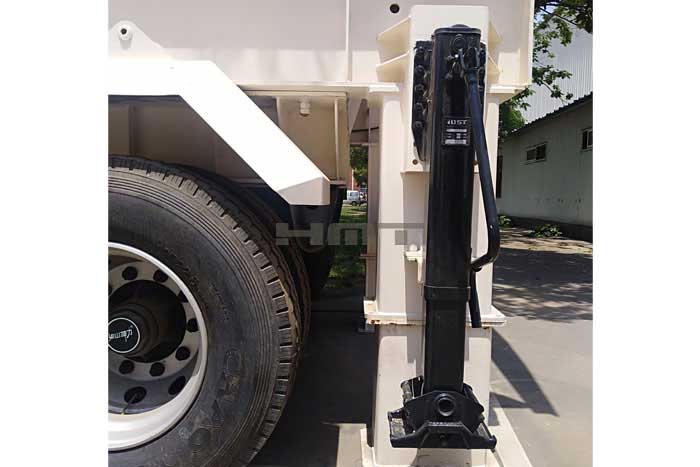

7. Hydraulic lifting system.
8. High safety standard. Safety guards.
9. Provide customized design and manufacturing services.
| Model | PW-V60S1860 | PW-V100S2160 | |
| Sand Maker | Model | MRV0922/MVS7150 | MRV1222/MVS9100 |
| Motor Power(kw) | 160-200kw | 315-400kw | |
| Vibrating Screen | Model | 2/3YKS1860 | 2/3YKS2160 |
| Motor Power(kw) | 22-30kw | 30kw | |
| Belt Conveyor Under Vibrating Screen | Model | B800×8000 | B1000×8000 |
| Motor Power(kw) | 5.5kw | 7.5kw | |
| Capacity (t/h) | 100-250 | 200-400 | |
| Weight | 36 | 49 | |
| Overall Sizes | Transportation Length(mm) | 15600 | 15600 |
| Transportation Width(mm) | 2830 | 3100 | |
| Transportation Height(mm) | 4350 | 4480 | |
| Axle Qty | 2 | 3 | |
Note:
1. The treatment capacity of crusher is related to the hardness of stone, feed granularity, discharge granularity and other factors.
2. Optional: iron remover, dustproof spray system, belt cover, feeding belt, returning belt and discharging belt.
3. Provide customized design and manufacturing services.
4. As the technology of our company is constantly updated, the parameters will be changed without notice. If you need other models, please contact HMT engineer.
