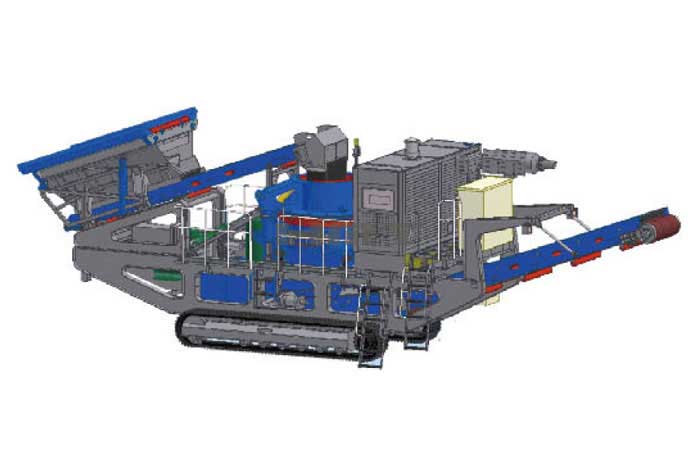

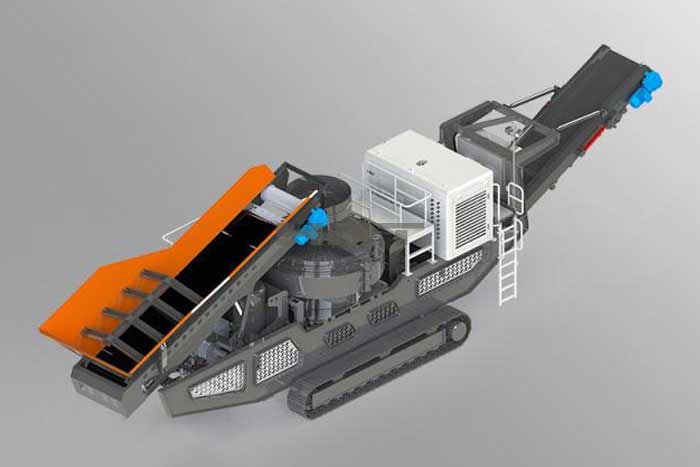

MT-V Tracked Mobile Sand Making Plant

CAPACITY : 30-200t/h

MAX FEEDING SIZE : 50-700mm

APPLICATION : limestone, granite, basalt, river stone, iron ore, gold ore, copper ore, andesite, gabbro

RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.

River pebbles
limestone
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

Tracked mobile crushing plant is a kind of high efficiency crushing equipment, which adopts self-drive mode, advanced technology and complete functions. This device can reach any location on the work site under any terrain conditions. This can reduce the handling of materials and facilitate the coordination of all auxiliary mechanical equipment. With wireless remote control, the crusher can be easily driven onto a trailer and transported to the work site. Because there is no need for assembly time, the equipment can be put into work immediately upon arrival at the work site. The mobile crushing station has a large crushing ratio, and its optimized design can meet the most needed technical characteristics of the crusher, with high productivity and uniform particle size of the finished material.
A new type of mobile crushing station developed by engineers combining the advantages of the most advanced and stable mobile crushing station in the world.

Features

1. Light weight, small size, especially suitable for narrow site work;

2. Convenient transportation, track walking, no damage to the road surface, equipped with multi-functional accessories, a wide range of adaptation;

3. Through the combination of different models, a powerful crushing operation line can be formed to complete multi-demand processing operations;

4. The whole machine adopts all-wheel drive, which can realize in-situ steering, standard configuration, quick change device, with perfect safety protection function, especially suitable for narrow and complex areas;

5. Fuel saving, fuel saving rate of up to 25%;

6. Random attached power group - optimal design;

7. Can climb operations to meet the crushing requirements of mines, hydropower stations, coal mines and other projects

PRODUCT DATA:

Model		MT-V60	MT-V100
Belt Conveyor	Hopper Volume(m3)	5m3	5m3
	Model	800*7000mm	1000*8000mm
	Power(kw)	7.5kw	11kw
	Feeding Height(mm)	2680mm	2680mm
Sand Maker	Model	MRV0922/MVS7150	MRV1222/MVS9100
	Max Feed Size(mm)	≤40mm	≤40mm
	Power(kw)	160&200kw	315&400kw
Main Belt Conveyor	Model	1000*9000mm	1200*10000mm
	Power(kw)	11kw	15kw
	Feeding Height(mm)	2800mm	2800mm
Magnetic Separator	Model	RCYQ-8	RCYQ-10
Magnetic Separator	Power(kw)	2.2kw	3kw
Dual-power Assembly	Driving Mode	Diesel or electricity	Diesel or electricity
Capacity(t/h)		100-250t/h	200-400t/h
Weight		32t	62t
Overall Sizes	Transportation Length(mm)	16750mm	19000mm
	Transportation Width(mm)	3000mm	3700mm
	Transportation Height(mm)	3400mm	4000mm

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
