CAPACITY : 1-100t/h
MAX FEEDING SIZE : 25mm
APPLICATION : Cement, silicate products, building materials, refractory materials, fertilizer, black and non-ferrous metal mineral processing and glass ceramics and other production industries.
RAW MATERIALS :iron ore, gold ore, copper ore, chromium ore, etc
chromium
copper ore
gold ore
iron ore
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

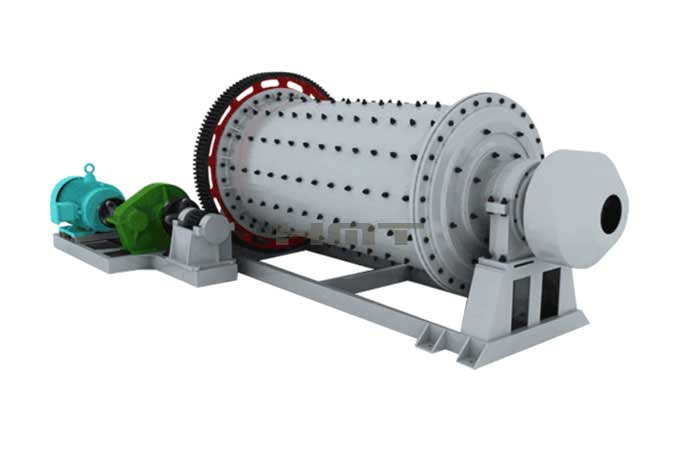

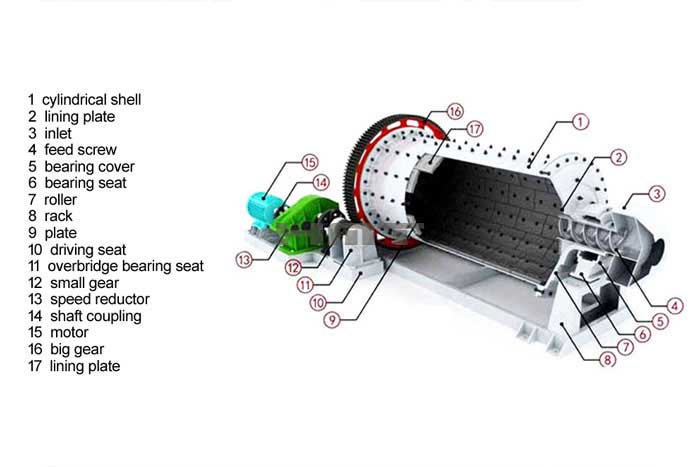

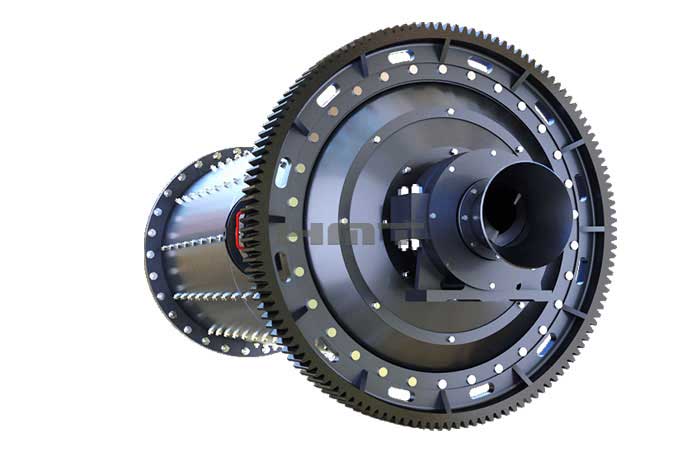

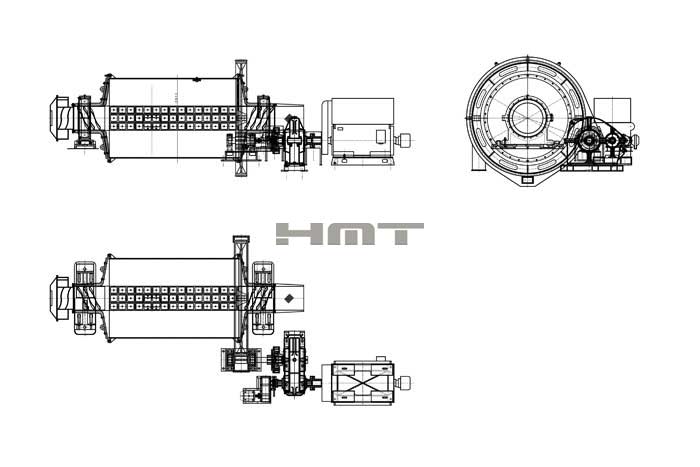

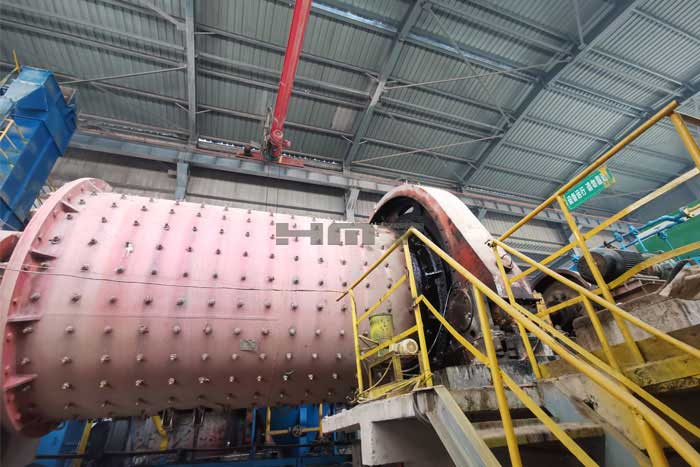

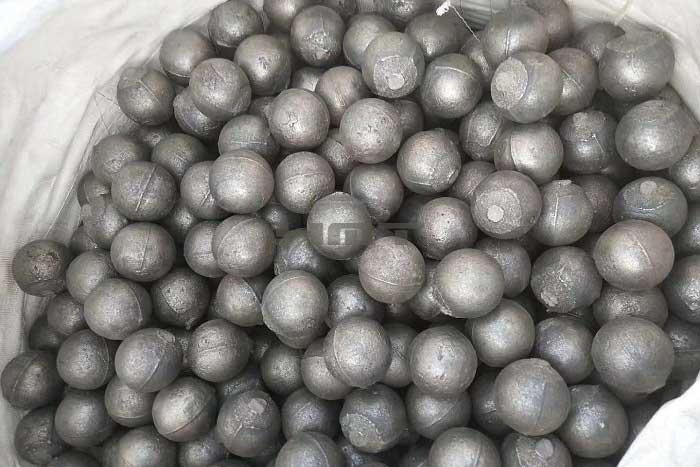

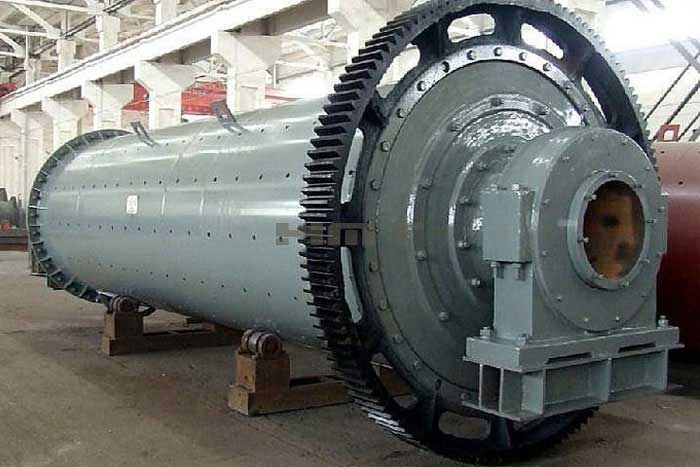

The ball mill is the key equipment for milling the material after crushing. Ball mill is to load into its cylinder a certain number of steel balls as a grinding medium.
It is widely used in cement, silicate products, new building materials, refractories, fertilizers, black and non-ferrous metal mineral processing and glass ceramics and other production industries, for a variety of ores and other grindable materials dry or wet grinding.
Ball mill is suitable for grinding various ores and other materials, is widely used in mineral processing, building materials and chemical industry, can be divided into dry and wet two kinds of grinding methods.
1. Strong adaptability to materials, continuous production, large production capacity, can meet the requirements of large-scale industrial production;
2. The crushing ratio is large, up to more than 300, and it is easy to adjust the fineness of the grinding product;
3. Suitable for dry and wet operation;
4. Simple structure, solid, reliable operation, simple maintenance and management, high operating rate;
5. Strong sealing, can be negative pressure operation.
| Model | Max Feed Size | Speed | Ball Load | Output Size | Capacity | Motor Power |
| (mm) | (r/min) | 3 | (mm) | (t/h) | (kw) | |
| MQGΦ1.2 x 2.4 | 25 | 36 | 3 | 0.075-0.4 | 1.5-4.8 | 30 |
| MQGΦ1.2 x 4.5 | 25 | 32.4 | 5 | 0.075-0.4 | 1.6-5.8 | 55 |
| MQGΦ1.5 x 3.0 | 25 | 29.7 | 7.5 | 0.075-0.4 | 2-5 | 75 |
| MQGΦ1.5 x 5.7 | 25 | 28 | 12 | 0.075-0.4 | 3.5-6 | 130 |
| MQGΦ1.83 x 4.5 | 25 | 25.4 | 15 | 0.075-0.4 | 4.5-12 | 155 |
| MQGΦ1.83 x 6.4 | 25 | 24.1 | 21 | 0.075-0.4 | 6.5-15 | 210 |
| MQGΦ1.83 x 7.0 | 25 | 24.1 | 23 | 0.075-0.4 | 7.5-17 | 245 |
| MQGΦ2.1 x 3.0 | 25 | 23.7 | 15 | 0.075-0.4 | 6.5-36 | 155 |
| MQGΦ2.1 x 4.5 | 25 | 23.7 | 24 | 0.075-0.4 | 8-43 | 245 |
| MQGΦ2.1 x 7.0 | 25 | 23.7 | 26 | 0.075-0.4 | 8-48 | 280 |
| MQGΦ2.2 x 4.5 | 25 | 21.5 | 27 | 0.075-0.4 | 9-45 | 280 |
| MQGΦ2.2 x 6.5 | 25 | 21.7 | 35 | 0.075-0.4 | 14-26 | 380 |
| MQGΦ2.2 x 7.0 | 25 | 21.7 | 35 | 0.075-0.4 | 15-28 | 380 |
| MQGΦ2.4 x 3.0 | 25 | 21 | 23 | 0.075-0.4 | 7-50 | 245 |
| MQGΦ2.4 x 4.5 | 25 | 21 | 30 | 0.075-0.4 | 8.5-60 | 320 |
| MQGΦ2.7 x 4.0 | 25 | 20.5 | 40 | 0.075-0.4 | 12-80 | 400 |
| MQGΦ2.7 x 4.5 | 25 | 20.5 | 48 | 0.075-0.4 | 12-90 | 430 |
| MQGΦ3.2 x 4.5 | 25 | 18 | 65 | 0.075-0.4 | designed | 800 |
| MQGΦ3.6 x 4.5 | 25 | 17 | 90 | 0.075-0.4 | 850 | |
| MQGΦ3.6 x 6.0 | 25 | 17 | 110 | 0.075-0.4 | 1250 |
Note:
1. The output in the table changes with the change of raw material performance, feed particle size, system parameters, etc. Please consult our technical engineer for system configuration and output under special working conditions;
2. The motor power of the system will vary according to different configurations, and the final configuration of the actual scheme shall prevail;
