CAPACITY : 90-1200t/h
MAX FEEDING SIZE : 10-350mm
APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc
iron ore
granite
limestone
cobblestone
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

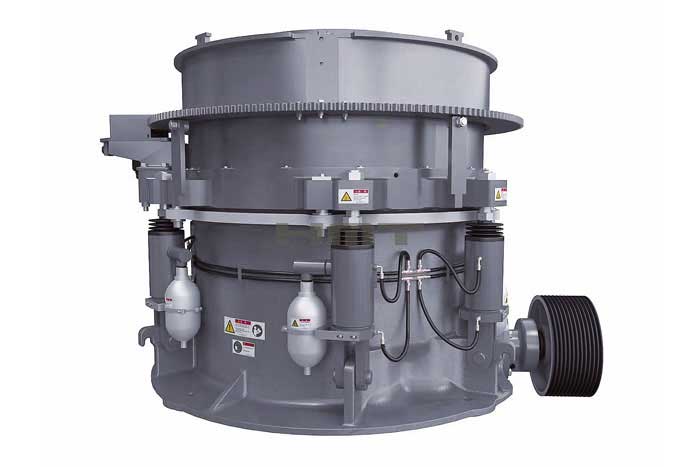

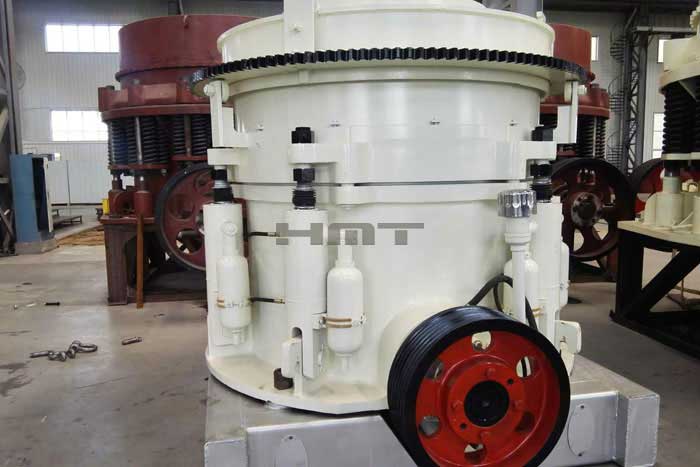

MHP series multi-cylinder hydraulic cone crusher

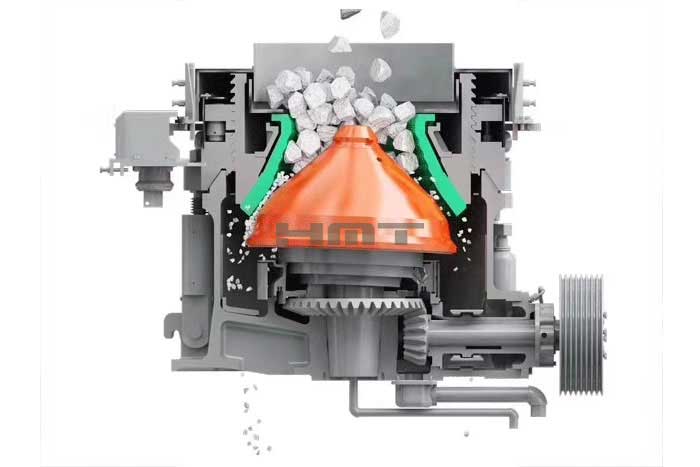

Each model of the cone machine has a variety of cavity types, users can choose different cavity types according to different needs, crushing operation. The machine is divided into standard type and short head type, the general standard type feeding particle size is large, the discharge particle size is also thicker, the short head type crushing cone is steeper, the feeding particle size is small, which is conducive to the production of fine grained materials. The standard type is generally used for coarse and medium crushing, and the short head type is used for medium and fine crushing.
1. Large crushing ratio, high production efficiency: high eccentricity, large crushing ratio, fast speed, up to 750 RPM or more, improve production capacity by 30%~40%.

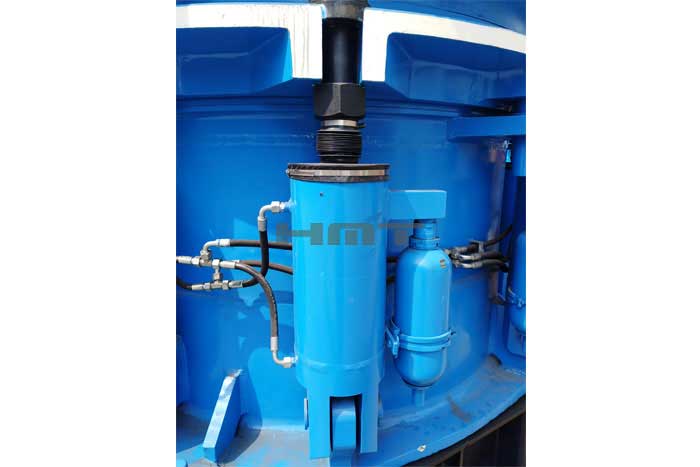

2. Hydraulic protection and hydraulic cavity cleaning, high automation, reduce downtime.
3. Integrated hydraulic lubrication, thin oil lubrication system design, the use of U\T labyrinth seal and positive pressure fan to ensure reliable dust.
To achieve flexible cavity type switching through replacing liner, cutting ring, fastening bolts.
4. Reasonable structure, reliable operation, less consumption of wearing parts, low operating cost
5. The same upper chamber group can be used for coarse, medium and fine cavities, which greatly enhances the convenience and flexibility of customer use.
6. Easy to operate and maintain.
| Model | Cavity Type | Standard Head | Short Head | Motor Power (kw) | Capacity (t/h) | Weight （t） | ||
| Size of Feed Opening (mm) | Discharge Opening (mm) | Size of Feed Opening (mm) | Discharge Opening (mm) | |||||
| MHP200 | Extra Coarse (EC) | 132-200 | 90-250 | 14 | ||||
| Coarse (C) | 185 | 19 | 76 | 10 | ||||
| Medium (M) | 125 | 17 | 54 | 6 | ||||
| Fine (F) | 95 | 13 | 23 | 6 | ||||
| Extra Fine (EF) | 10 | 5 | ||||||
| MHP300 | Extra Coarse (EC) | 230 | 25 | 180-250 | 110-440 | 19.96 | ||
| Coarse (C) | 210 | 20 | 75 | 10 | ||||
| Medium (M) | 150 | 15 | 50 | 8 | ||||
| Fine (F) | 105 | 10 | 20 | 6 | ||||
| Extra Fine (EF) | 20 | 6 | ||||||
| MHP400 | Extra Coarse (EC) | 295 | 30 | 280-355 | 140-630 | 28.72 | ||
| Coarse (C) | 250 | 25 | 90 | 10 | ||||
| Medium (M) | 195 | 20 | 50 | 8 | ||||
| Fine (F) | 110 | 14 | 40 | 6 | ||||
| Extra Fine (EF) | 30 | 6 | ||||||
| MHP500 | Extra Coarse (EC) | 330 | 30 | 355-450 | 175-790 | 38 | ||
| Coarse (C) | 285 | 25 | 90 | 13 | ||||
| Medium (M) | 200 | 20 | 55 | 10 | ||||
| Fine (F) | 133 | 16 | 40 | 8 | ||||
| Extra Fine (EF) | 35 | 6 | ||||||
| MHP800 | Extra Coarse (EC) | 353 | 32 | 550-630 | 260-1200 | 68 | ||
| Coarse (C) | 297 | 32 | 155 | 13 | ||||
| Medium (M) | 267 | 25 | 92 | 10 | ||||
| Fine (F) | 219 | 16 | 33 | 6 | ||||
| Extra Fine (EF) | ||||||||
Note
1)The reference weight of the machine in the table does not include the weight of the motor, electronic control equipment, lubrication station and hydraulic station.
2)The above capacity of the crusher in the table is for the design throughput capacity as per below conditions:
1. Water content in raw material does not exceed 4%, does not contain clay.
2. The fine granular material with feed size smaller than the discharge port accounts for less than 10% of the total feed.
3. feed loose density 1.6t /m3, compressive strength 150 Mpa.
4. The data of "capacity" in the table will be different according to the physical properties of mine stone, feeding method, feeding particle size, water content and clay water content. The "power" of closed circuit production is slightly lower than that of open circuit production.
