CAPACITY : 100-2000t/h
MAX FEEDING SIZE : 350-1500mm
APPLICATION : Aggregates, cement and recycling industry
RAW MATERIALS :limestone, construction waste
limestone
construction waste
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

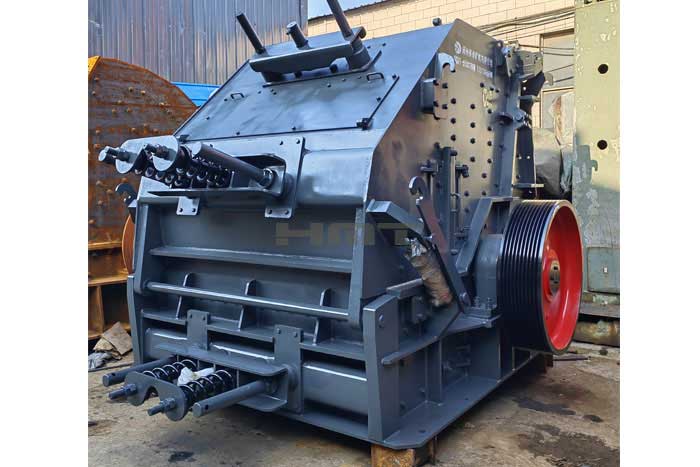

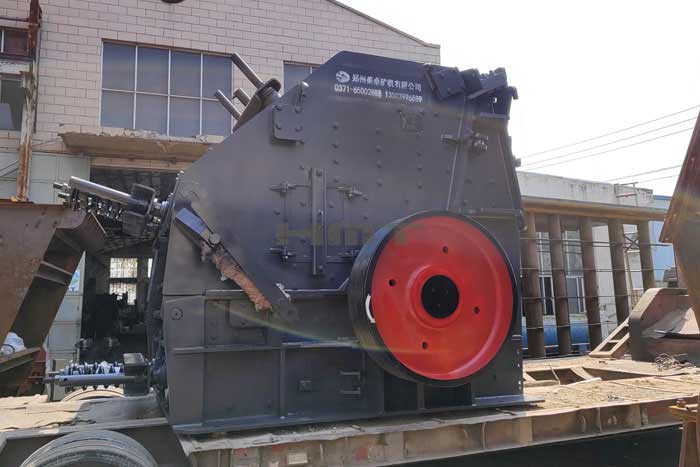

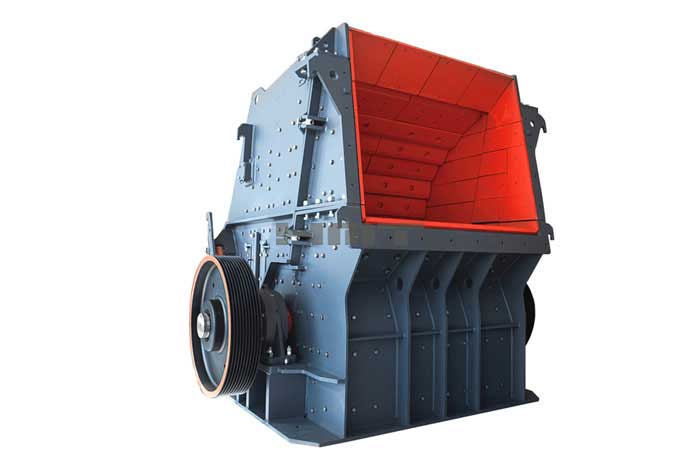

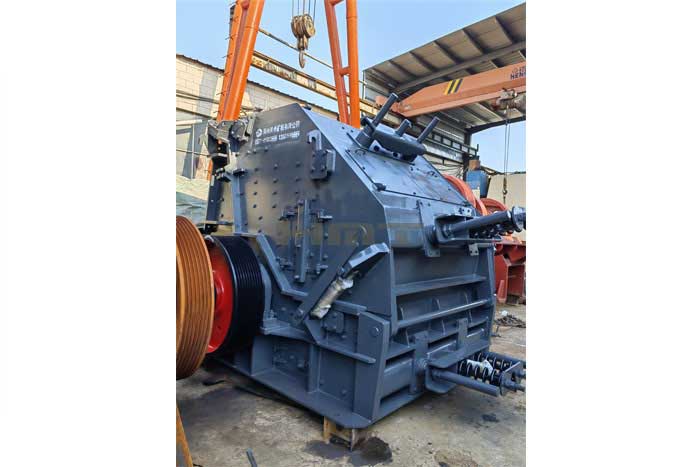

NP European Style Impact Crusher is mainly used in metal mines, non-metal mines, sand and gravel aggregates, building recycling, chemical industry and other fields.
Generally, it is used to crush materials with low abrasiveness below medium hardness, and can be used as coarse crushing, medium crushing and fine crushing, with large crushing ratio and good grain shape of finished products.

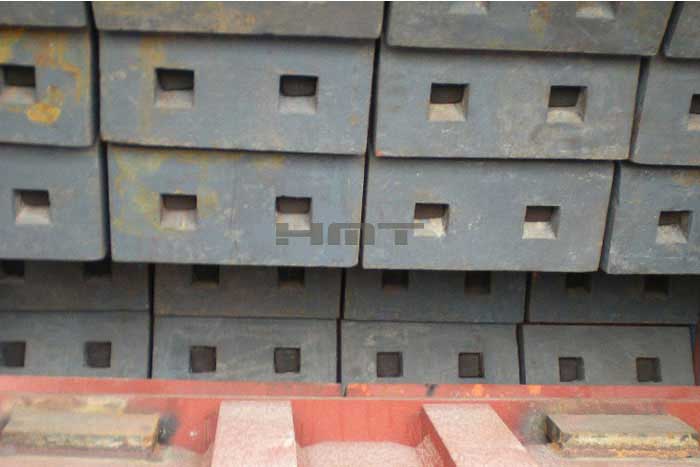

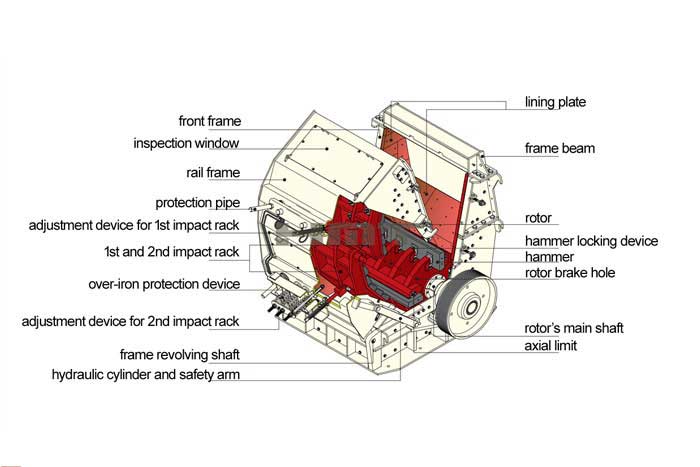

1. Optimal design of rotor: optimize the heavy-duty design of rotor, increase rotational inertia and improve equipment productivity; The unique locking device of wedge plate hammer is convenient to disassemble, safe and reliable.
2. Flexible configuration: all models have two cavities and three cavities, and the cavity type and wear-resistant plate hammer are selected according to different purposes to obtain better output ratio.

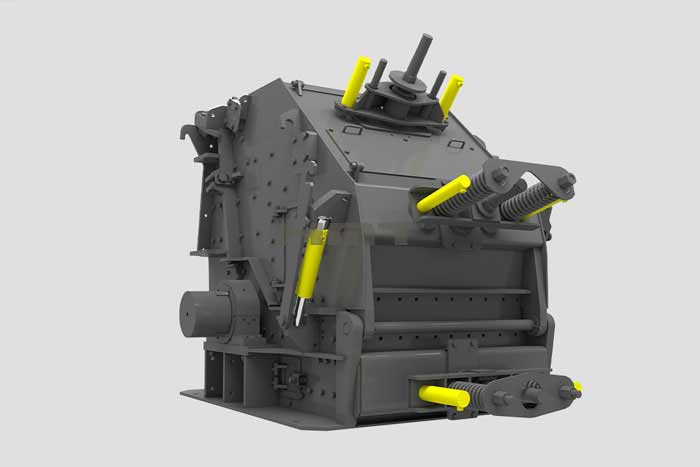

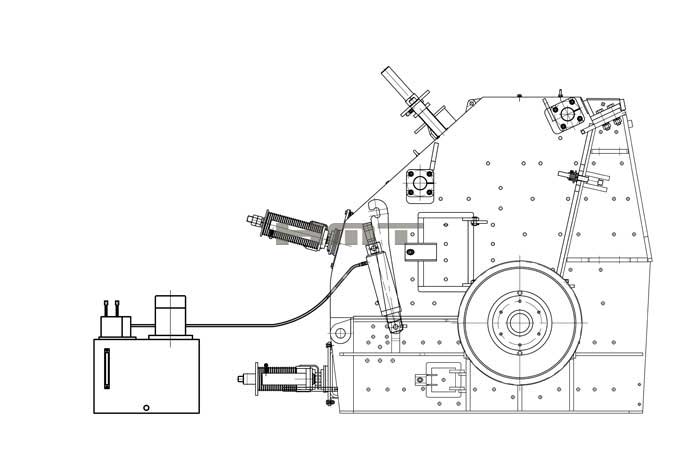

3. Hydraulic system design: equipped with efficient hydraulic device, which can not only open the frame hydraulically, but also adjust the discharge port conveniently.

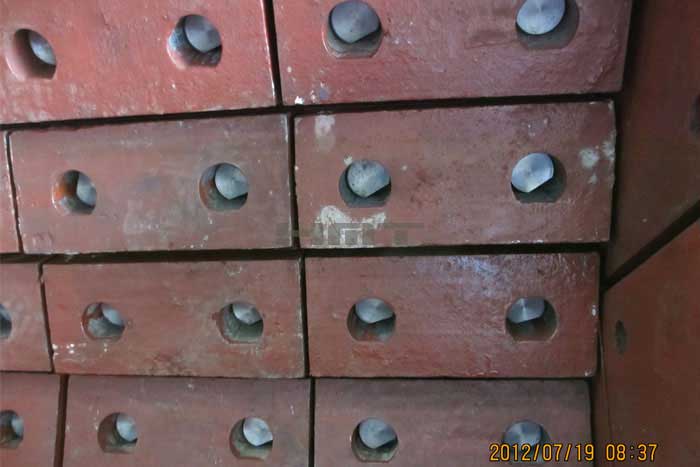

4. Modular design of wearing parts: through reasonable design and layout of wear-resistant lining plates, the types of wearing parts can be minimized, and they can be used interchangeably according to the different wear degrees of components, so as to improve the utilization rate of wearing parts and reduce inventory.
5. Diversification: flexible switching between fixed and mobile operations.
Two Cavities
| Model | Rotor Spec | Feed Opening Size | Max Feed edge | Capacity | Motor Power |
| （mm） | （mm） | （mm） | （t/h） | （kw） | |
| PFW1210II | Φ1150×960 | 1090×1030 | 400 | 90-160 | 90-110 |
| PFW1214II | Φ1150×1400 | 1100×1430 | 500 | 130-220 | 132-160 |
| PFW1315II | Φ1300×1500 | 1200×1530 | 600 | 180-320 | 200-250 |
| PFW1318II | Φ1300×1800 | 1200×1830 | 700 | 240-400 | 250 |
| PFW1415II | Φ1400×1500 | 1300×1530 | 700 | 300-480 | 250-315 |
| PFW1520II | Φ1500×2000 | 1400×2040 | 800 | 380-580 | 400-500 |
| PFW1620II | Φ1600×2000 | 1500×2040 | 900 | 420-680 | 400-500 |
Three Cavities
| Model | Rotor Spec | Feed Opening Size | Max Feed edge | Capacity | Motor Power |
| （mm） | （mm） | （mm） | （t/h） | （kw） | |
| PFW1010III | Φ1024×1040 | 490×1070 | 300 | 50-90 | 90 |
| PFW1210III | Φ1150×960 | 560×990 | 300 | 70-140 | 90-110 |
| PFW1214III | Φ1150×1400 | 570×1430 | 350 | 90-190 | 132-160 |
| PFW1315III | Φ1300×1500 | 625×1530 | 350 | 150-280 | 200-250 |
| PFW1318III | Φ1300×1800 | 625×1830 | 350 | 220-350 | 250 |
| PFW1415III | Φ1400×1500 | 860×1530 | 400 | 280-380 | 250-315 |
| PFW1520III | Φ1500×2000 | 980×2040 | 400 | 300-400 | 400-500 |
| PFW1620III | Φ1600×2000 | 1080×2040 | 450 | 400-650 | 400-500 |
Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
