CAPACITY : 20-1000t/h
MAX FEEDING SIZE : 250-1200mm
APPLICATION : Aggregates, cement and recycling industry
RAW MATERIALS :limestone, construction waste
construction waste
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

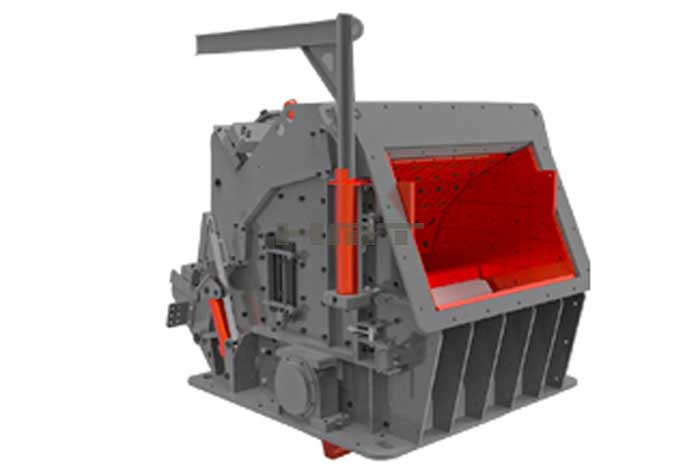

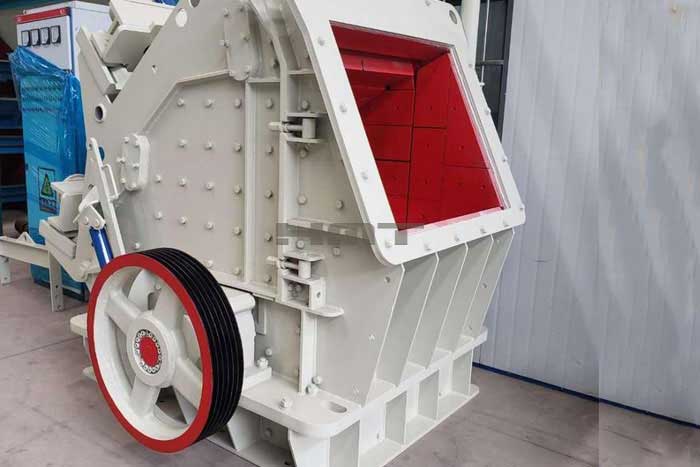

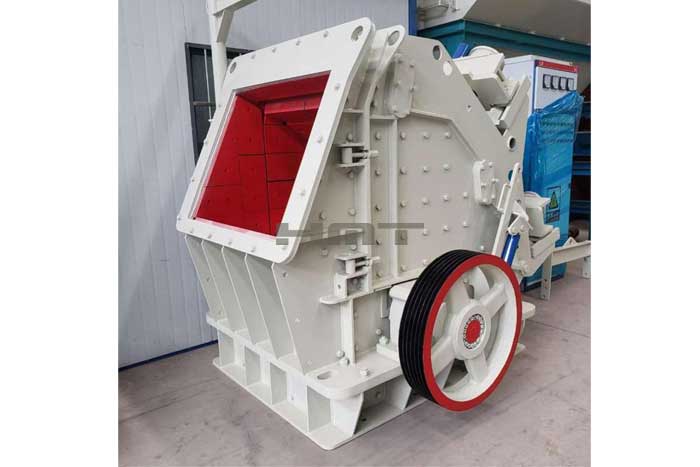

CI large diameter European version impact crusher is developed by combining with our many years of urban construction waste crushing experience and absorbing German technology developed for urban building solid waste crushing equipment.
It uses open rotor structure design for the production of aggregate 0~ 40mm and railway ballast 40~ 70mm, or used for construction waste recycling, crushed reinforced concrete and asphalt concrete and other compressive strength of no more than 300MPa materials. The finished product is cubic, the reinforcement in concrete can be removed, widely used in a variety of ore crushing, railway, highway and construction industry artificial sand and stone production.
1. The use of German technology, the crushing ratio is large, the two-stage crushing is a first-level crushing, which can achieve coarse and medium crushing in one step, large output and high production efficiency.
2. With overload iron protection, can achieve complete separation of steel and concrete. The machine has a rebar cutting device, the main engine will not be blocked.

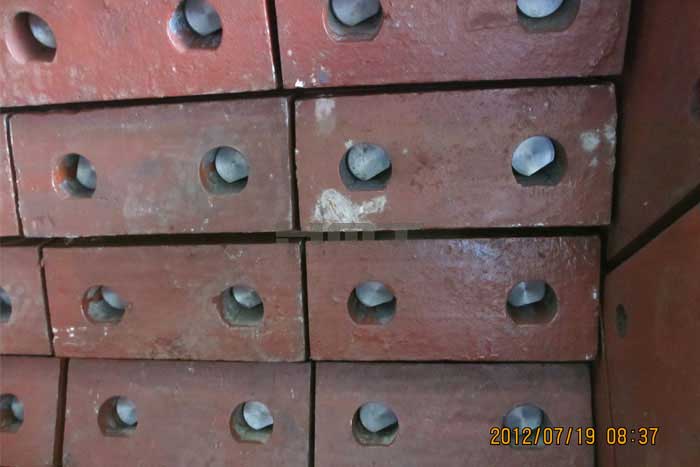

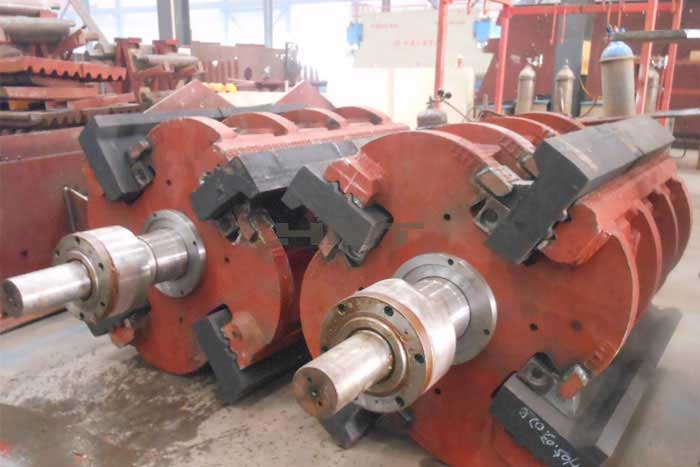

3. Heavy rotor design, using "crescent shape" heavy plate hammer, long service life.

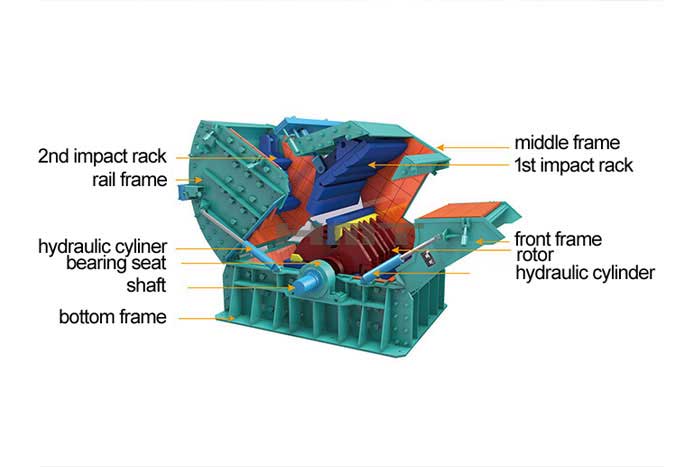

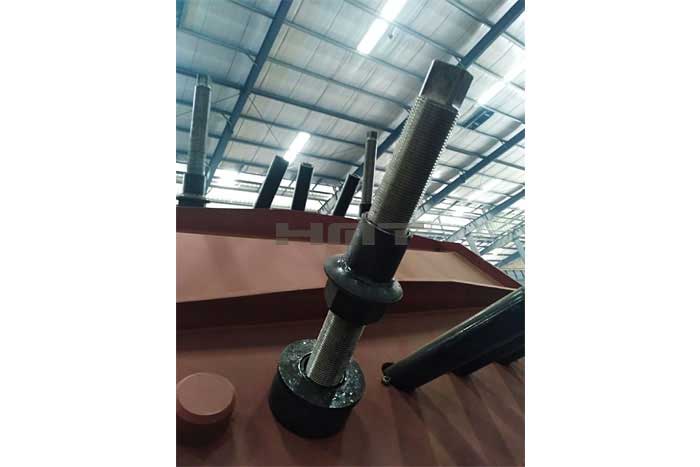

4. Advanced design, equipped with a variety of humanized functions, full hydraulic adjustment of the impact plate clearance and housing opening and closing. Equipped with maintenance boom, convenient later maintenance and replacement parts.
5. The production of finished material particle shape is good, cube, conducive to recycling. The discharge system of the machine is semi-open, suitable for crushing construction waste containing a small amount of steel bars, fine discharge, less over-crushing, good particle forming.
6. The machine size is small, does not take up space, can meet the use of not good working conditions, especially suitable for mobile crushing station.
| Model | Size of Feed Opening | Max Feed edge | Discharge Range Opening | Capacity | Motor Power | Weight |
| (mm) | (mm) | (㎜) | (t/h) | (kw) | (t) | |
| CI100 | 700×1140 | 400 | 20-100 | 100-150 | 90-110 | 10500 |
| CI150 | 820×980 | 500 | 20-100 | 150-200 | 132-160 | 12000 |
| CI250 | 960×1360 | 600 | 20-100 | 200-280 | 220-250 | 17000 |
| CI350 | 1050×1700 | 700 | 20-200 | 300-400 | 280-355 | 24000 |
| CI450 | 1350×1950 | 900 | 20-200 | 400-600 | 355-500 | 30000 |
Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
