CAPACITY : 50-2100t/h
MAX FEEDING SIZE : 120-1020mm
APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
RAW MATERIALS :River stone, gravel, granite, basalt, minerals, quartz, diabase, etc.
Iron ore
Copper ore
limestone
Slag
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

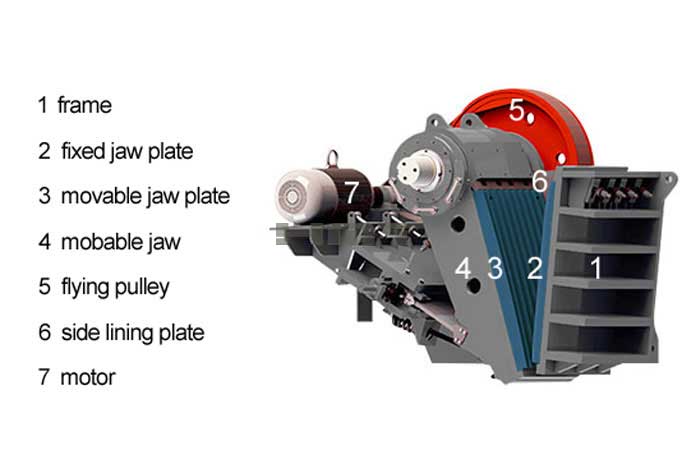

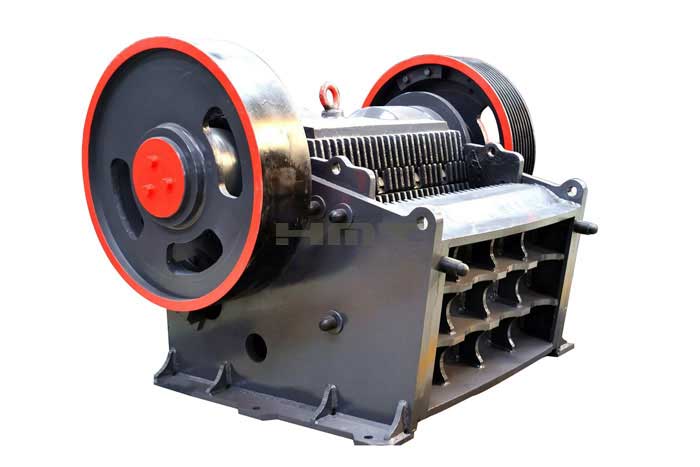

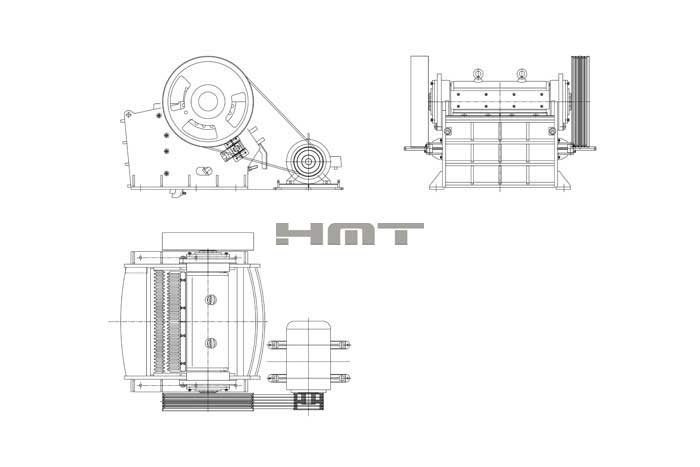

MCJ European Style Fine Jaw Crusher is successfully developed by absorbing European advanced technology. It is widely used in various hard and abrasive rock. Used fine or secondary crushing.
1. Stronger steel Q345 for frame, lighter

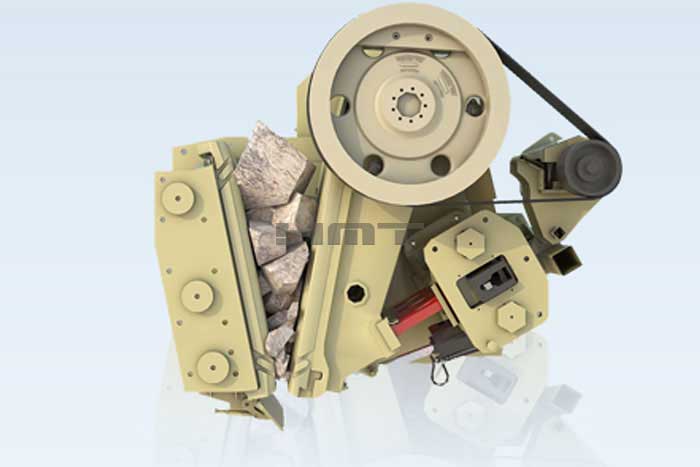

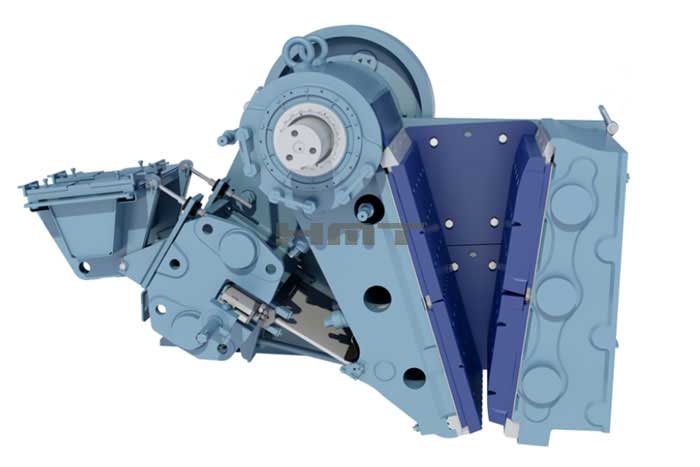

2. Deep V cavity, big crushing ratio. Fine output sizes.
3. Double wedge adjusting discharge opening.
4. Easy maintenance and operation.
| Model | Size of Feed Opening | Max Feed edge | Discharge Range Opening | Eccentric Shaft speed | Capacity | Motor Power |
| (mm) | (mm) | (㎜) | （r/min） | (t/h) | (kw) | |
| MCJ2510 | 250×1000 | ≤235mm | 20-40mm | 330r/min | 30-60 | 30 |
| MCJ2512 | 250×1200 | ≤235mm | 20-40mm | 330r/min | 30-75 | 37-45 |
| MCJ2513 | 250×1300 | ≤235mm | 20-40mm | 320r/min | 40-75 | 45-55 |
| MCJ3013 | 300×1300 | ≤285mm | 20-50mm | 320r/min | 40-90 | 55-75 |
| MCJ3015 | 300×1500 | ≤285mm | 20-50mm | 320r/min | 50-100 | 75-90 |
Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
