CAPACITY : 20-1000t/h
MAX FEEDING SIZE : 250-1200mm
APPLICATION : Aggregates, cement and recycling industry
RAW MATERIALS :limestone, construction waste
limestone
construction waste
60s online
customer service
2 days customize
solutions
Factory
visiting anytime

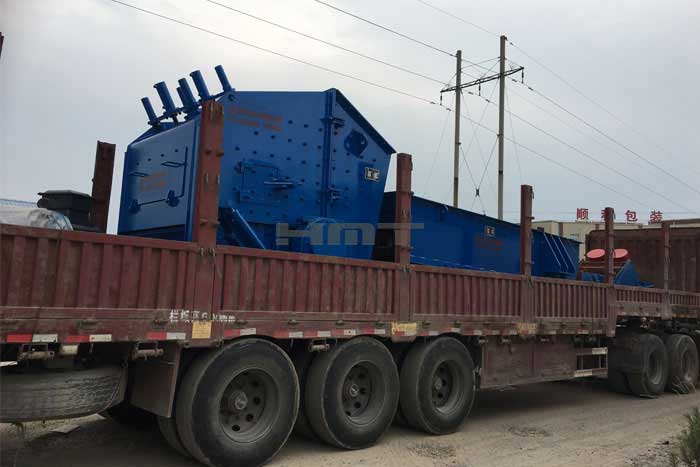

1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

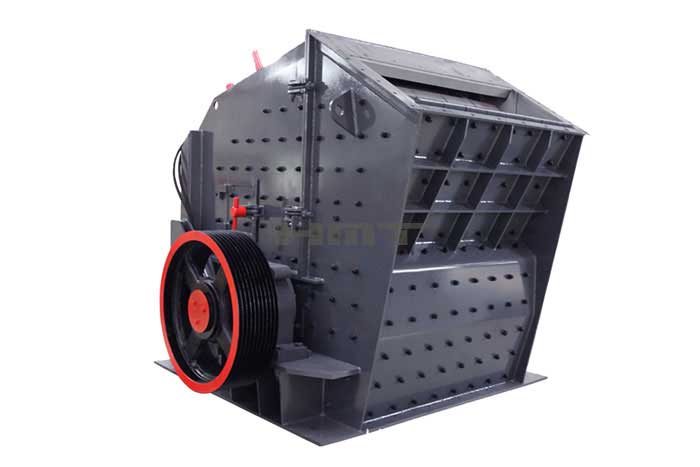

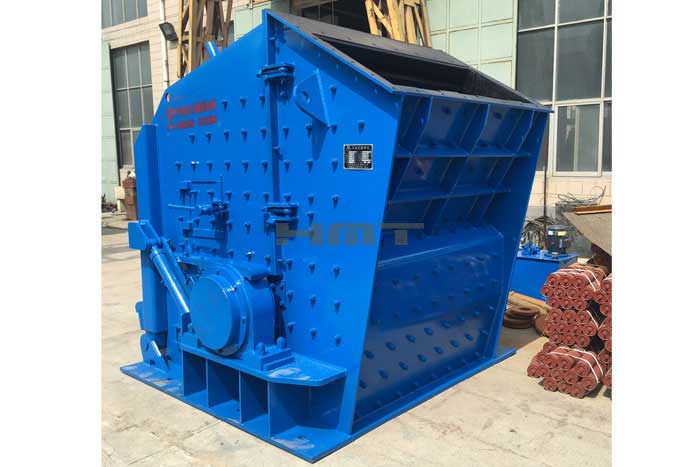

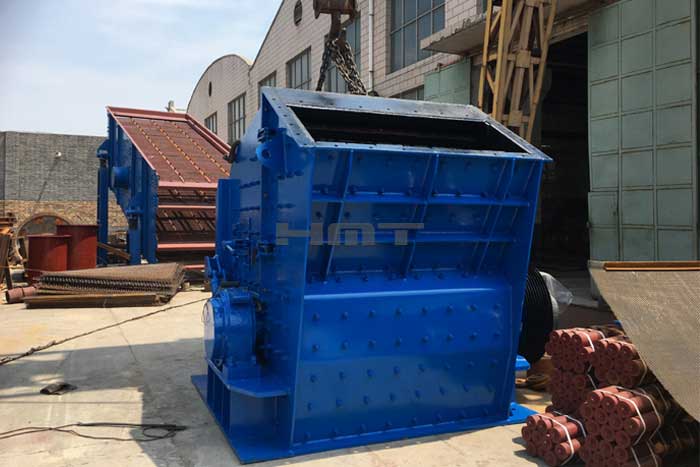

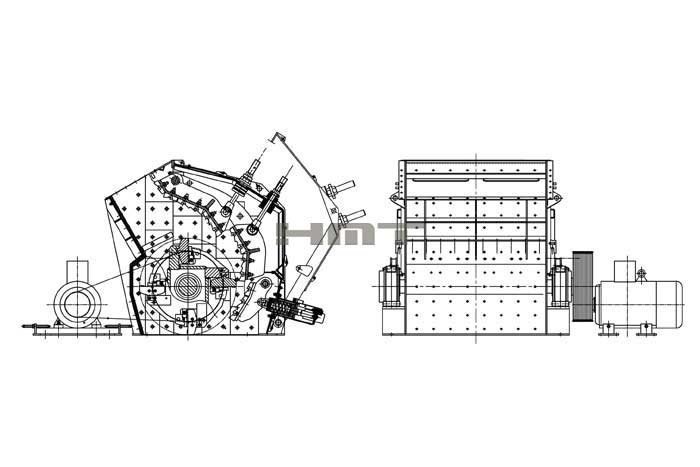

Our company produces P/II and S/III two kinds of impact crusher.
P type is used for coarse and medium crushing, and there are two stage counterattack plates. S type is used for medium and fine crushing, and there are three stage counterattack plates.

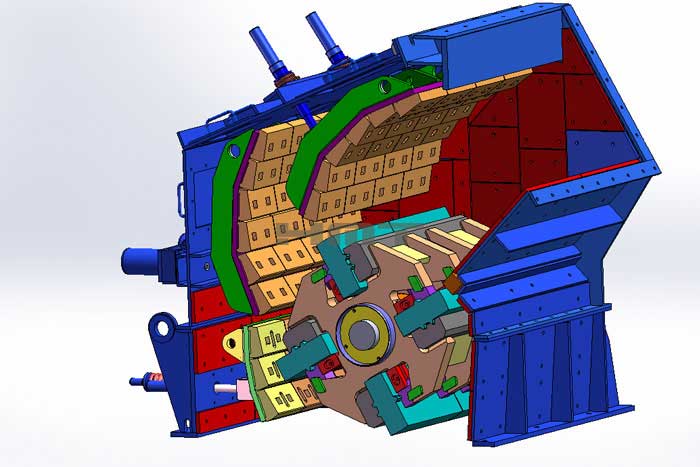

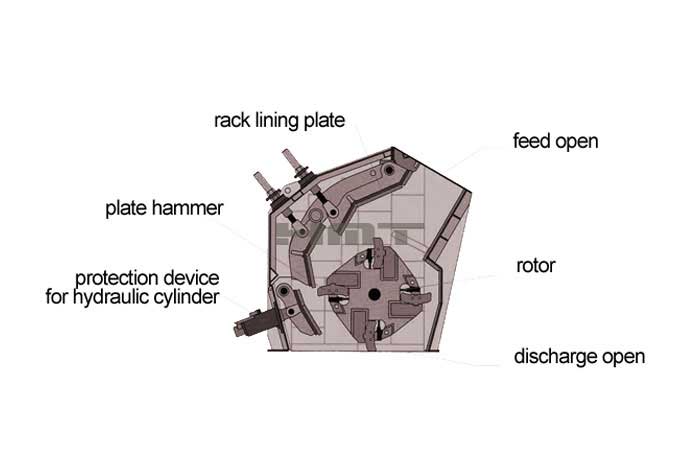

The suspension point of the rear cavity counterattack device is connected with the suspension point of the counterattack plate, which increases the heavy moment of the rear cavity counterattack device. The counterattack device can be quickly lifted when iron is over and can be quickly returned to the original place afterwards.

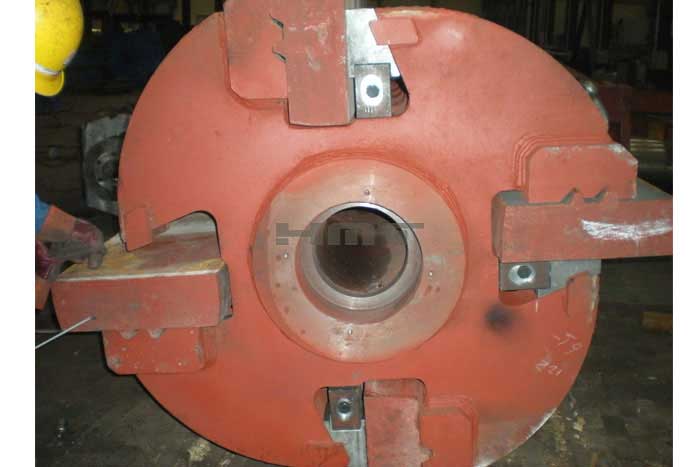

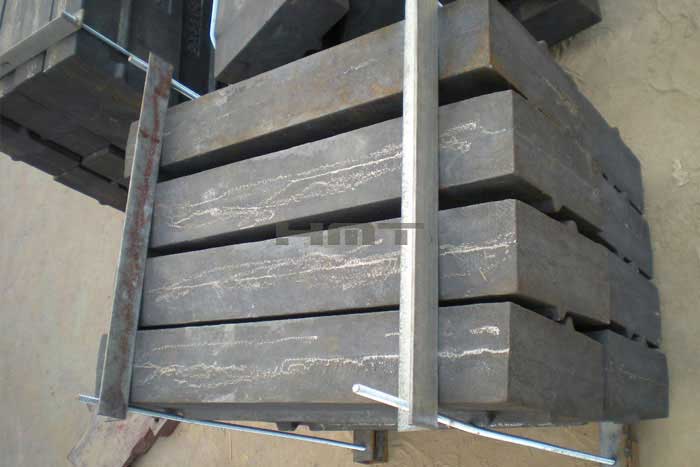

This crusher P type and S type use of four "banana shape" plate hammer which can be turned over to use, in the wear cycle the contact Angle of the material remains unchanged, the discharge particle size is uniform.

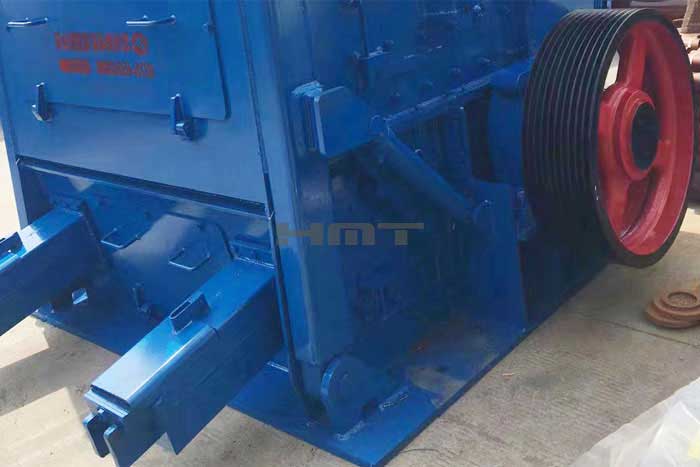

1 comlete hydraulic adjustment system for discharging discharge open. High efficiece.
2 high capacity, high cost performance.
3 wearproof materials, longer service lives.
4 stable opration, good output shape.
5 optimized design, safety design.
Two Cavities
| Model | Rotor Spec | Feed Opening Size | Max Feed edge | Capacity | Motor Power |
| （mm） | （mm） | （mm） | （t/h） | （kw） | |
| PFW1210II | Φ1150×960 | 1090×1030 | 400 | 90-160 | 90-110 |
| PFW1214II | Φ1150×1400 | 1100×1430 | 500 | 130-220 | 132-160 |
| PFW1315II | Φ1300×1500 | 1200×1530 | 600 | 180-320 | 200-250 |
| PFW1318II | Φ1300×1800 | 1200×1830 | 700 | 240-400 | 250 |
| PFW1415II | Φ1400×1500 | 1300×1530 | 700 | 300-480 | 250-315 |
| PFW1520II | Φ1500×2000 | 1400×2040 | 800 | 380-580 | 400-500 |
| PFW1620II | Φ1600×2000 | 1500×2040 | 900 | 420-680 | 400-500 |
Three Cavities
| Model | Rotor Spec | Feed Opening Size | Max Feed edge | Capacity | Motor Power |
| （mm） | （mm） | （mm） | （t/h） | （kw） | |
| PFW1010III | Φ1024×1040 | 490×1070 | 300 | 50-90 | 90 |
| PFW1210III | Φ1150×960 | 560×990 | 300 | 70-140 | 90-110 |
| PFW1214III | Φ1150×1400 | 570×1430 | 350 | 90-190 | 132-160 |
| PFW1315III | Φ1300×1500 | 625×1530 | 350 | 150-280 | 200-250 |
| PFW1318III | Φ1300×1800 | 625×1830 | 350 | 220-350 | 250 |
| PFW1415III | Φ1400×1500 | 860×1530 | 400 | 280-380 | 250-315 |
| PFW1520III | Φ1500×2000 | 980×2040 | 400 | 300-400 | 400-500 |
| PFW1620III | Φ1600×2000 | 1080×2040 | 450 | 400-650 | 400-500 |
Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
