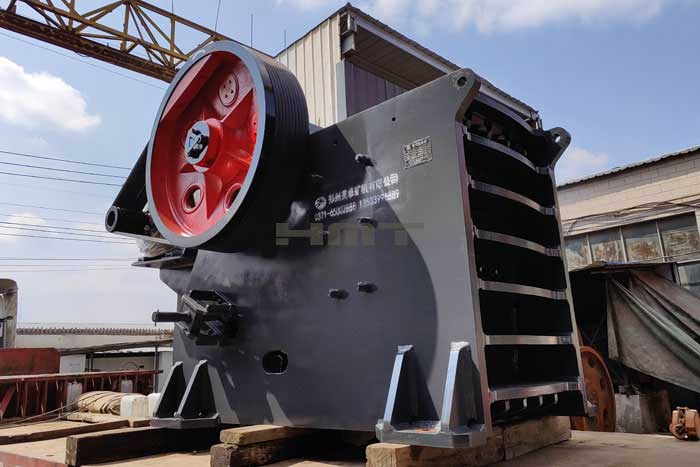

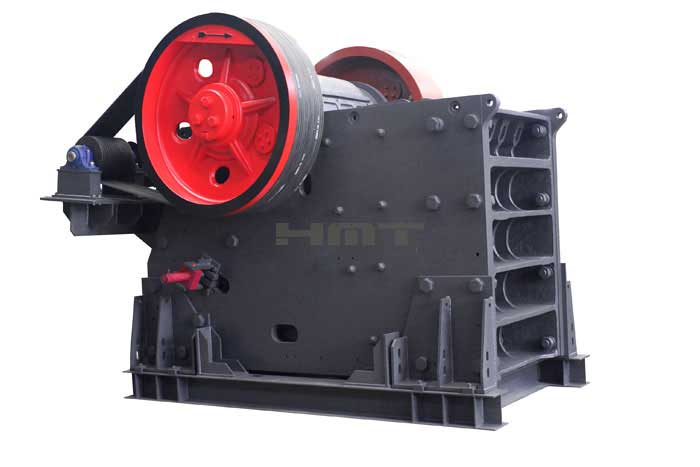

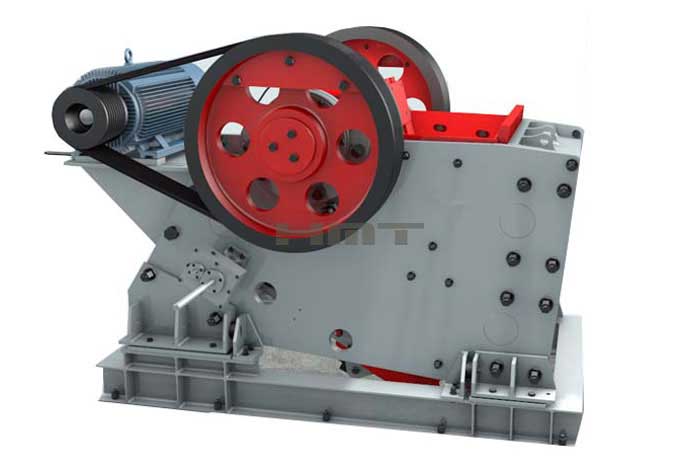

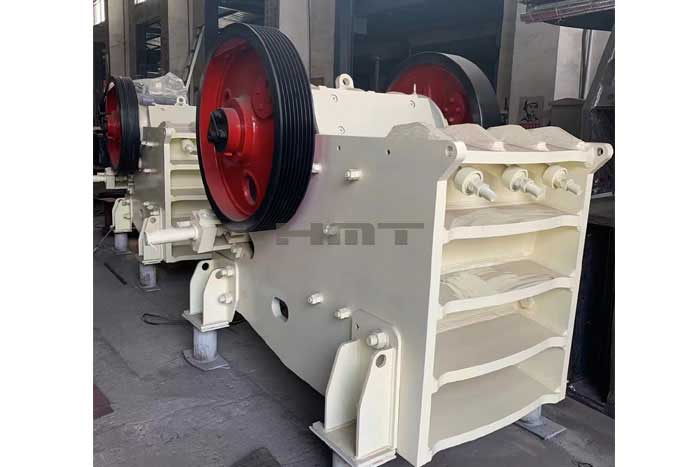

MC European Style Jaw Crusher

CAPACITY : 65-1200t/h

MAX FEEDING SIZE : 450-1050mm

APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

Iron ore
Copper ore
Slag
Diabase

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

MC European jaw crusher adopts European standard process production and processing, this series of jaw crusher has good kinemical performance and strong power, to ensure that it can work stably under any working conditions.
It is the traditional PE jaw crusher's ideal upgraded product.

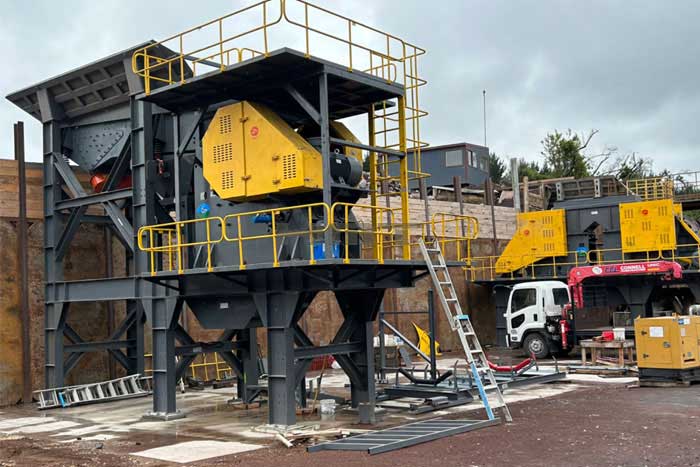

Besidees, its compact fuselage design and higher production efficiency make it to be mobile primary crushing plants' ideal choice currently.

Features

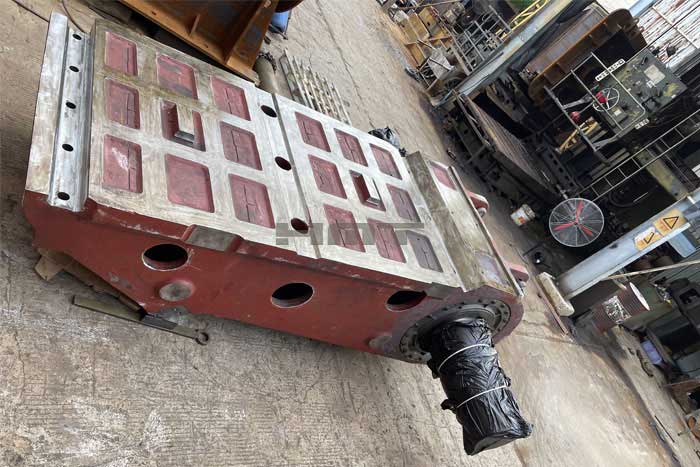

1. Rack diversification: welded heavy frame or modular removable frame, integrated motor base design, occupying a small area.

2. Technology upgrade: Deep V cavity design, crushing efficiency is obviously improved, reasonable moment of inertia and larger crushing stroke.

3. High output capacity, large crushing ratio

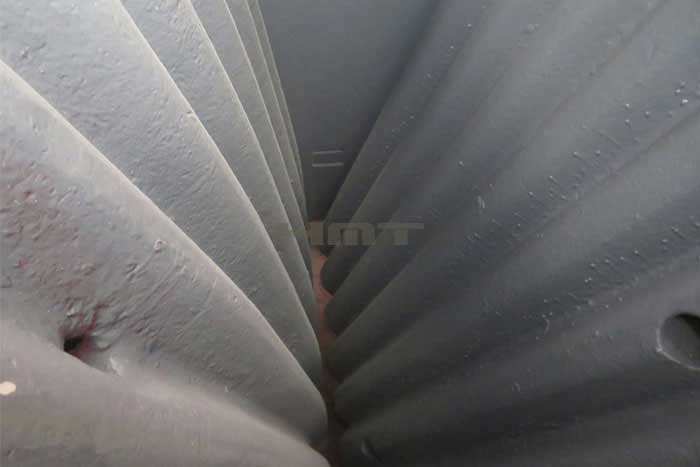

4. Long life cycle: the use of hyperboloid jaw plate, small wear, the jaw plate life can be extended by 3 to 4 times in the same working condition

5. Reliability: Selection of high-quality materials and advanced manufacturing technology

6. Easy adjustment: The double wedge discharge adjustment system (mechanical or hydraulic) is stepless adjustment, which is simpler, safer and faster.

7. Diversification: Flexible switching of fixed or mobile operations.

PRODUCT DATA:

Model		MC80	MC96	MC100	MC106	MC116	MC3054	MC110	MC120	MC125	MC130	MC140	MC145	MC150	MC160
Length of of Feed Opening（mm）		800	960	1000	1060	1150	1380	1100	1200	1250	1300	1400	1400	1400	1600
Width of of Feed Opening（mm）		510	580	760	700	800	760	850	870	950	1000	1070	1100	1200	1200
Max Feed edge（mm）		450	500	650	580	650	650	700	700	800	850	860	1000	1000	1050
Eccentric Shaft speed （rpm）		350	330	260	280	260	260	260	230	220	220	220	220	220	220
Motor Power（kw）		75	90	110	110	132	160	160	160	160-185	160-185	200	200	220	250-315
Product Size（mm）	Min Discharge Opening（mm）	Capacity（t/h）
0-60	40	65-85
0-75	50	80-95	105-135
0-90	60	95-125	125-155
0-105	70	115-150	140-180	155-210	150-185	170-210	210-280	190-250	175-240
0-120	80	130-170	160-200	170-225	165-215	180-235	240-310	210-275	195-270
0-135	90	150-195	175-225	190-245	190-235	205-255	265-345	235-305	210-305
0-150	100	165-215	220-280	215-280	205-265	230-285	295-375	255-330	235-325	290-380	270-370
0-185	125	210-275	265-335	265-345	255-325	275-355	345-455	310-405	285-395	350-455	325-450	385-500	400-520	340-470
0-225	150	250-325	310-390	315-410	305-385	320-405	415-525	370-480	340-475	410-535	380-525	455-590	470-610	400-555	450-640
0-260	175	290-380	350-455	370-480	355-450	375-465	475-615	425-550	385-540	470-610	435-600	520-675	540-700	460-635	520-730
0-300	200			420-545	395-500	420-540	545-685	480-625		530-690	490-680	590-765	610-795	520-720	588-830
0-340	225									590-770	545-755	655-850	680-885	580-800	655-920
0-375	250									650-845	600-835	725-945	750-975	640-880	710-1000
0-410	275												820-1070		780-1100
0-450	300														855-1200

Note:
1. The above capacity in the table refers to the parameters corresponding to the materials that can enter the crushing chamber smoothly and the rocks with a crushing loose density of 1.6t/m3;
2. The above capacity in the table is instantaneous processing capacity, according to the nature of the material, feeding method, mud content and water content, the processing capacity will be changed;
