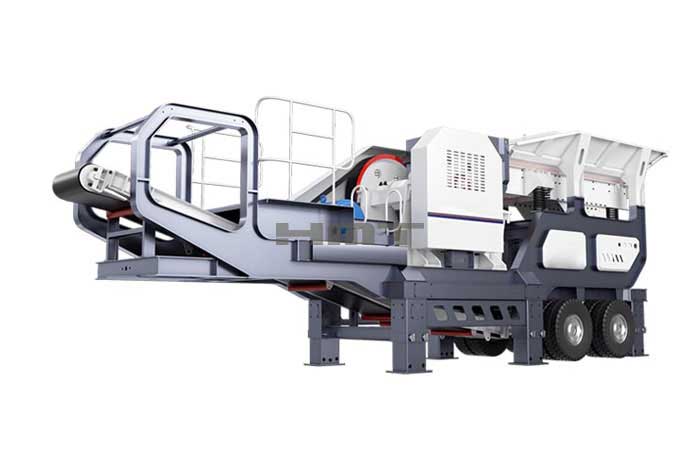

PW-J Tyre-Mounted Mobile Jaw Crushing Plant

CAPACITY : 30-200t/h

MAX FEEDING SIZE : 340-630mm

APPLICATION : limestone, granite, basalt, river stone, iron ore, gold ore, copper ore, andesite, gabbro

RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.

River pebbles
limestone
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

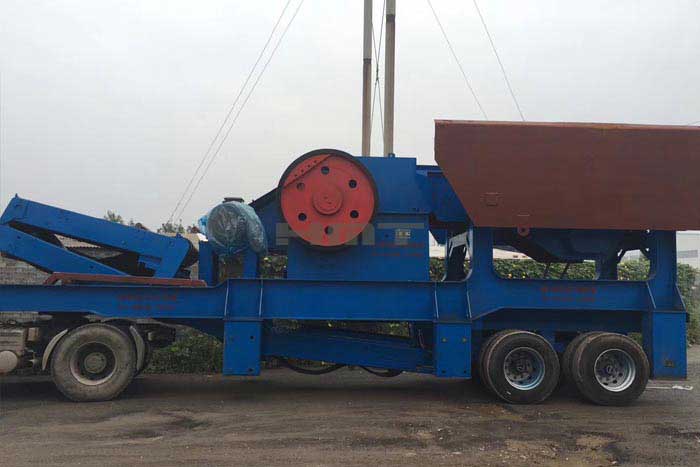

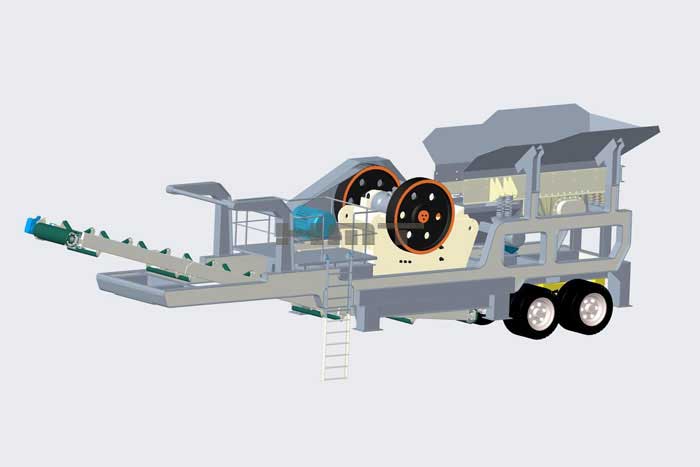

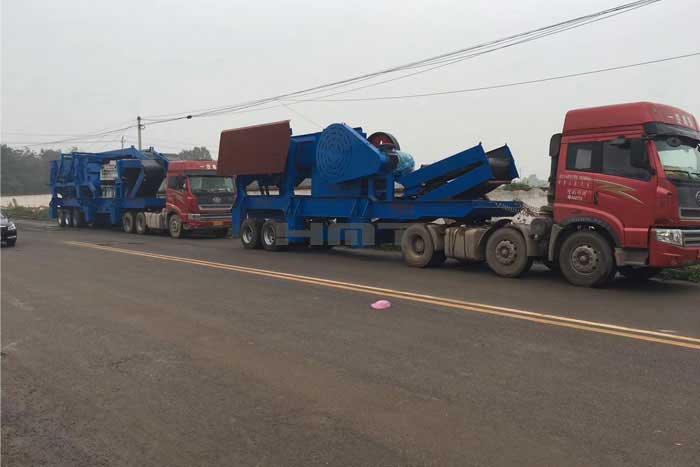

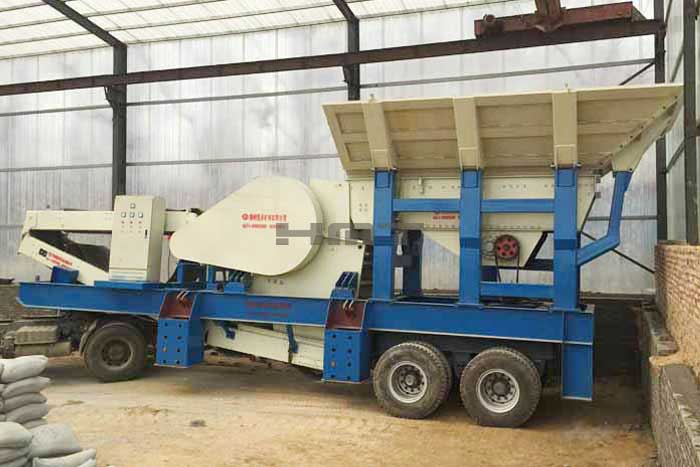

PW-J Wheel Mounted Mobile Jaw Crushing Plant includes hopper, vibrating feeder, jaw crusher, semi-trailer chassis, and other supporting parts. Its production process is as follows: materials are fed into hopper firstly; then vibrating feeder prescreens materials; then large materials will be fed into jaw crusher for primary crushing; then crushed materials will be carried out by belt conveyor.

Features

1. Optimized matching for different models;

2. Excellent mobility, convenient operation;

3. Reliable performance, high efficiency;

4. Lower the cost of transportaion;

5. Reliable performance and convenient maintenance;

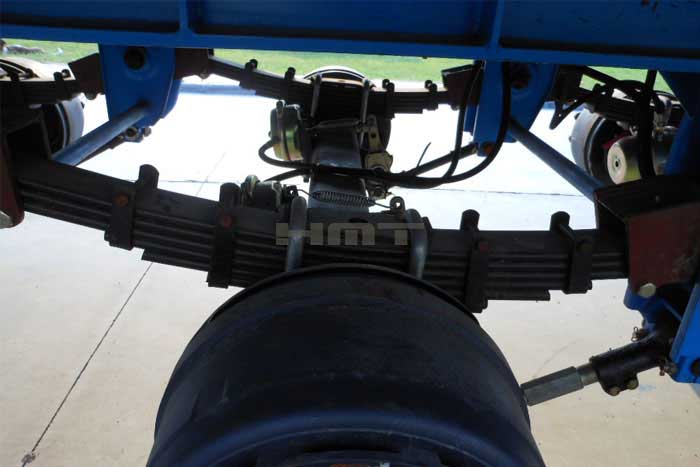

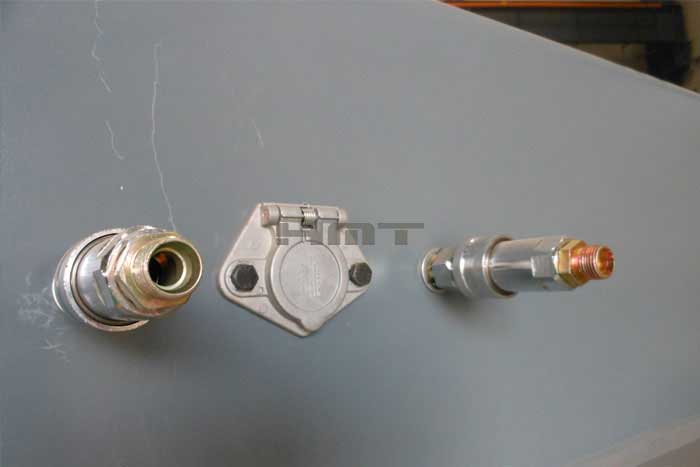

6. Standard lighting and braking system;

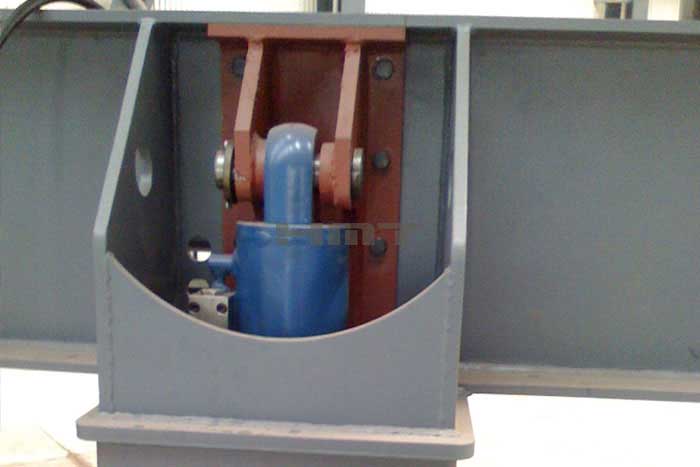

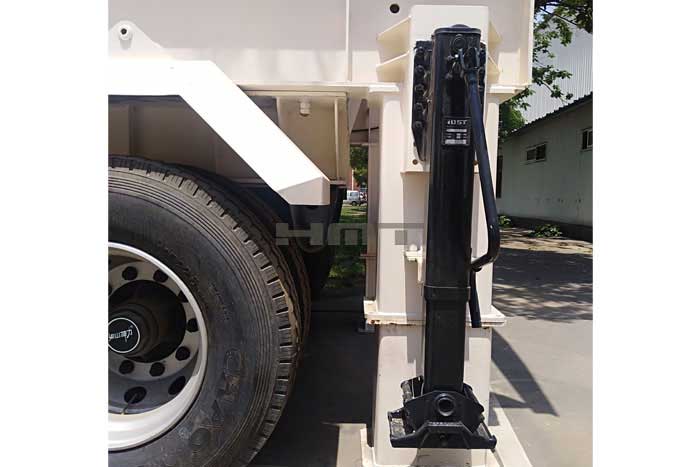

7. Hydraulic lifting system.

8. High safety standard. Safety guards.

9. Provide customized design and manufacturing services.

PRODUCT DATA:

Model		PW-JC80F32	PW-JC96F38	PW-JC106F42	PW-JC100F42	PW-JC110F49
Jaw Crusher	Model	MC80	MC96	MC106	MC100	MC110
	Motor Power(kw)	75kw	90kw	110kw	110kw	160kw
	Max Feed edge(mm)	500	500	580	650	700
	Discharge Opening (mm)	40-175	60-175	70-200	70-200	70-200
	Capacity(t/h)	65-380	120-455	150-500	155-545	190-625
Vibraing Feeder	Model	GZD0932	ZSW3895	ZSW4211	ZSW4211	ZSW4911
Vibraing Feeder	Motor Power(kw)	2x3kw	11kw	15kw	15kw	22kw
Main Belt Conveyor	Model	B800×8500	B800x9000	B1000x9500	B1000×9500	B1200×11000
Main Belt Conveyor	Motor Power(kw)	5.5kw	5.5kw	7.5kw	7.5kw	11kw
Magnetic Separator	Model	B500×3000	B500x3000	B650×3500	B650×3500	B650×4500
Magnetic Separator	Motor Power(kw)	2.2kw	2.2kw	3kw	3kw	3kw
Driving Mode		electricity	electricity	electricity	electricity	electricity
Magnetic Separator (optional)	Model	RCYQ-8	RCYQ-8	RCYQ-10	RCYQ-10	RCYQ-12
Magnetic Separator (optional)	Motor Power(kw)	2.2kw	2.2kw	3kw	3kw	4kw
Weight		39	42	51	55	57

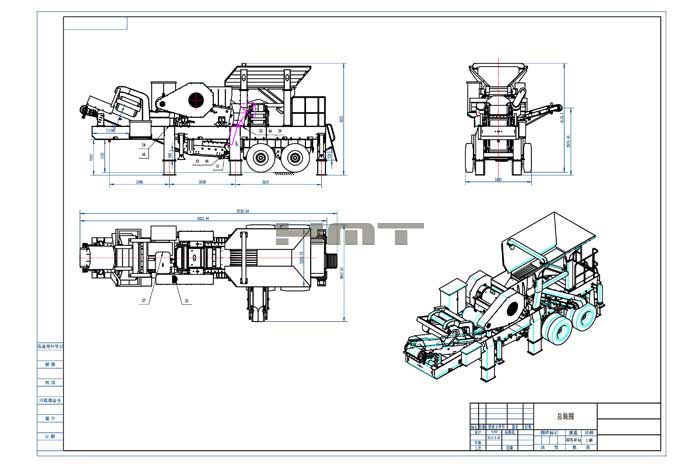

Overall Sizes	Transportation Length(mm)	12000	12500	13500	13500	14500
	Transportation Width(mm)	2600	2600	2700	2700	2800
	Transportation Height(mm)	3870	3870	4200	4200	4450
Axle Qty		2	2	2	3	3

Note:
1. The processing capacity of crusher is related to the hardness of stone, feed granularity, discharge granularity and other factors.
2. Optional: iron remover, dustproof spray system, belt cover and side belt conveyor.
3. Provide customized design and manufacturing services.
4. As the technology of our company is constantly updated, the parameters will be changed without notice. If you need other models, please contact HMT engineer.
