CAPACITY : 16-1940t/h
MAX FEEDING SIZE : 70-460mm
APPLICATION : Widely used in construction waste, mine, mining, sand and cement companies.
RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabases, andesite, etc.), ore tailings.
River pebbles
limestone
Granite
Basalt
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

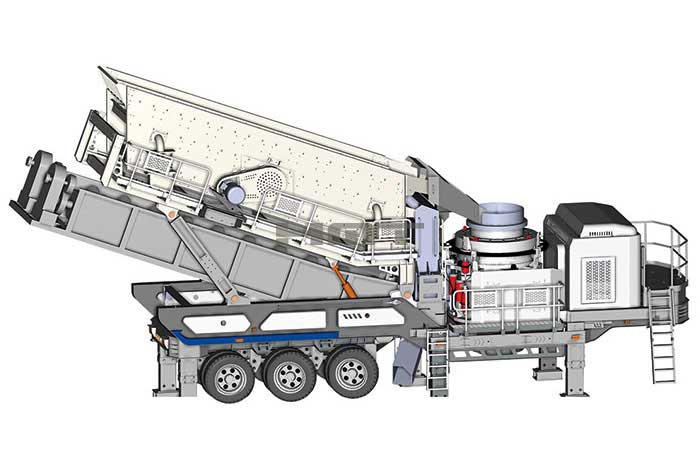

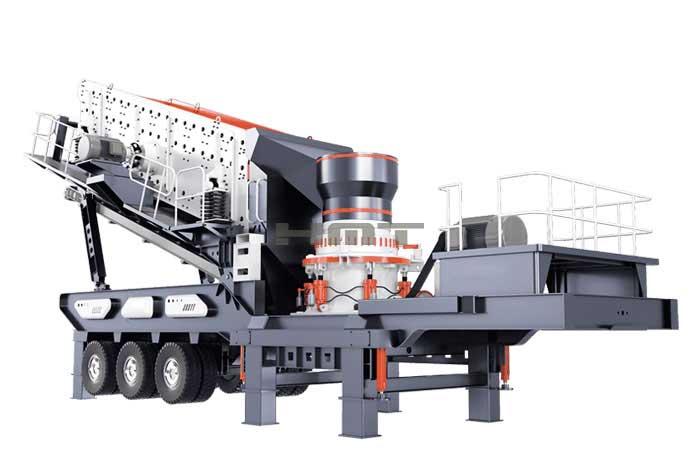

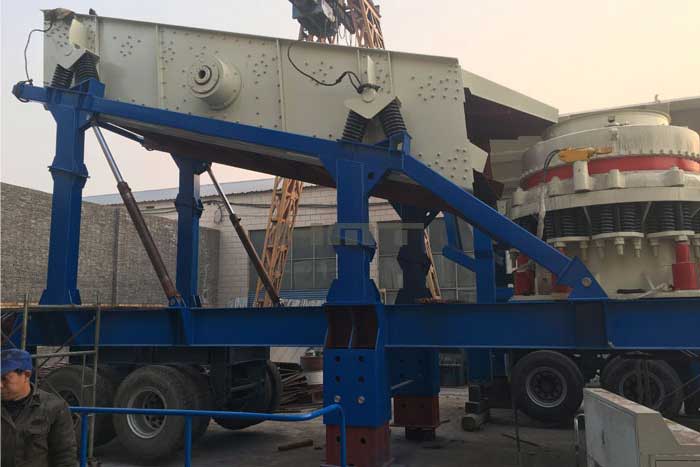

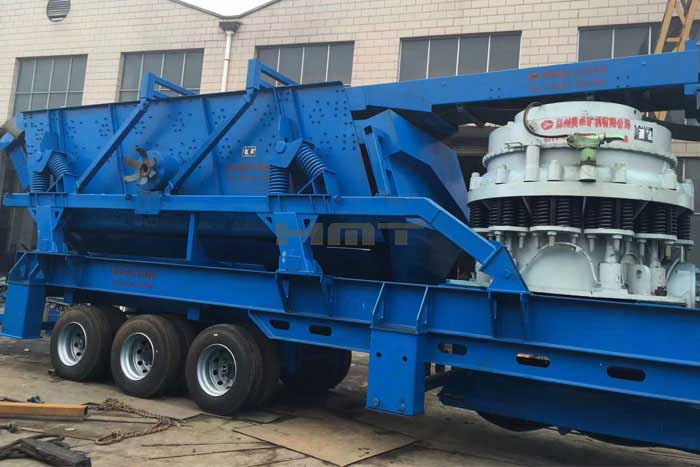

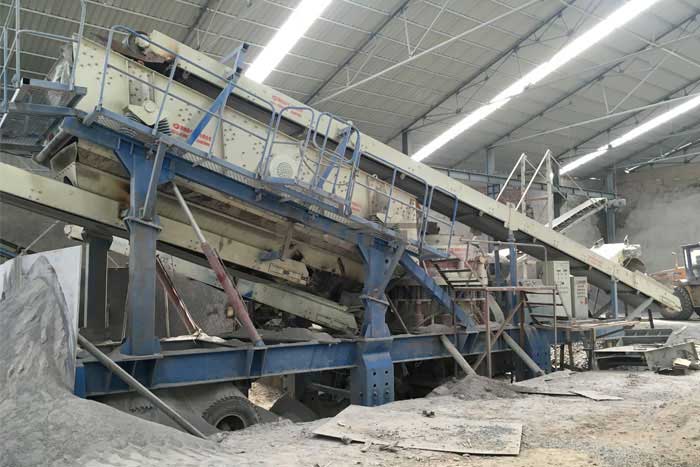

PW-C wheel mounted mobile cone crushing plant is mainly used in the field of secondary crushing operation, in the sand and stone production operation, according to different stone quality and finished product use, the mobile cone crushing and screening station is used to replace the impact crusher, the production of high hardness and fine granularity of sand and stone products.
The mobile cone crushing and screening station configured by our company can be adjusted to different crushing chamber types according to actual needs, which expands the field and scope of use of the mobile cone crushing station.
1. Optimized matching for different models;
2. Excellent mobility, convenient operation;
3. Reliable performance, high efficiency;
4. Lower the cost of transportaion;
5. Reliable performance and convenient maintenance;

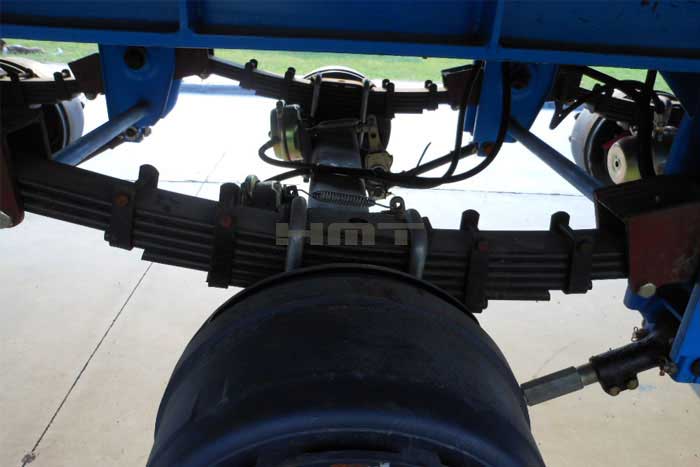

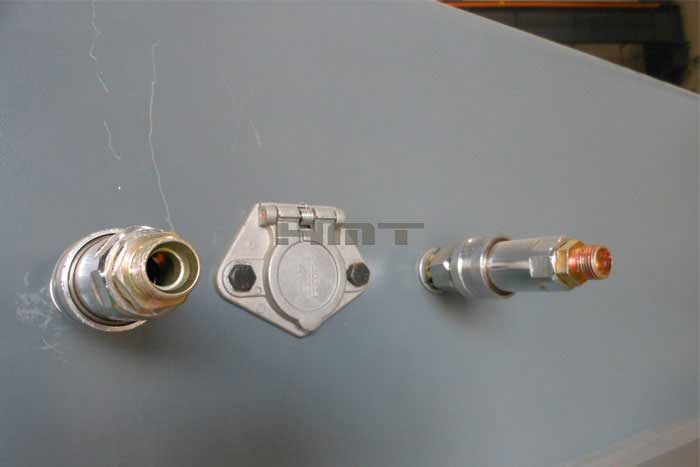

6. Standard lighting and braking system;

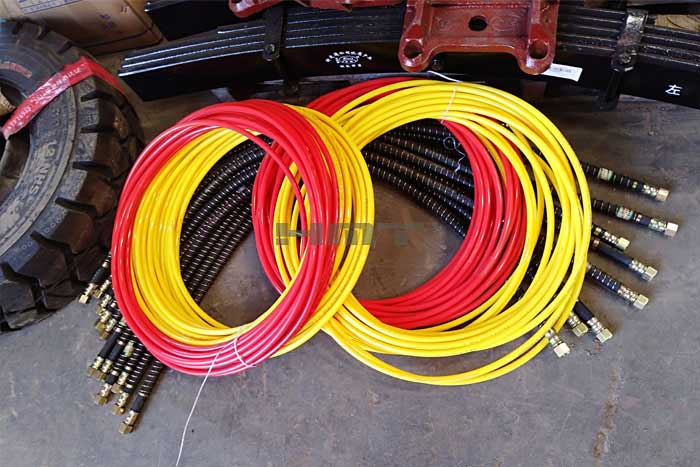

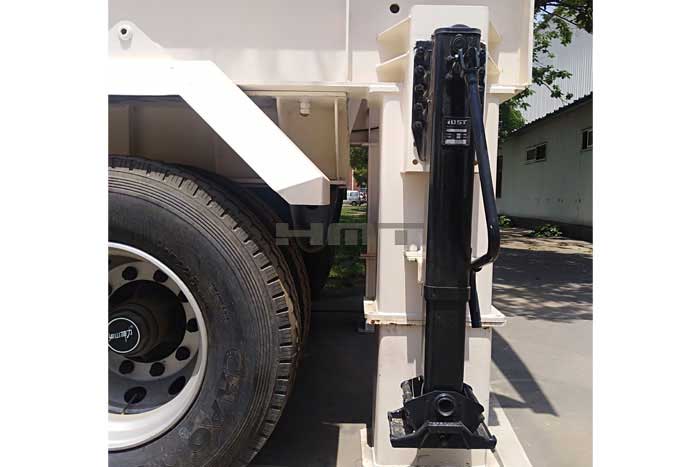

7. Hydraulic lifting system.
8. High safety standard. Safety guards.
9. Provide customized design and manufacturing services.
| Model | PW-C160S1860 | PW-C250S2160 | |
| Cone Crusher | Model | PSG155/MHP200/MCH430 | HP300/MCH440/MGP300 |
| Main Belt Conveyor | Model | B800×12000 | B1000×12000 |
| Motor Power(kw) | 7.5kw | 11kw | |
| Side Stacking Conveyor 1# | Model | B650×7000 | B650x7000 |
| Motor Power(kw) | 3kw | 3kw | |
| Side Stacking Conveyor 2# | Model | B650×7000 | B650x7000 |
| 3kw | 3kw | ||
| Stacking Belt Conveyor 3# under vibrating screen | Model | B800×7000 | B800×9000 |
| Motor Power(kw) | 5.5kw | 5.5kw | |
| Vibrating Screen | Model | 3YKS1860 | 3YKS2160 |
| Motor Power(kw) | 30kw | 30kw | |
| Weight | 35 | 49 | |
| Overall Sizes | Transportation Length(mm) | 14500 | 15000 |
| Transportation Width(mm) | 3000 | 3000 | |
| Transportation Height(mm) | 4400 | 4500 | |
| Axle Qty | 2 | 3 | |
1. The processing capacity of crusher is related to the hardness of stone, feed granularity, discharge granularity, screen aperture and other factors.
2. There are many types of cone crusher hosts to choose from.
3. Optional: Iron remover, dust-proof spraying system, belt cover, cone-impact breaking feeding belt.
4. Provide customized design and manufacturing services.
5. As the technology of our company is constantly updated, the parameters will be changed without notice. If you need other models, please contact HMT engineer.
