PW-I Tyre-Mounted Mobile Impact Crushing Plant

CAPACITY : 100-2000t/h

MAX FEEDING SIZE : 350-1500mm

APPLICATION : Aggregates, cement and recycling industry

RAW MATERIALS :limestone, construction waste

River pebbles
limestone
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

PW-I Tyre Mounted Mobile impact Crushing Plant has two different types:

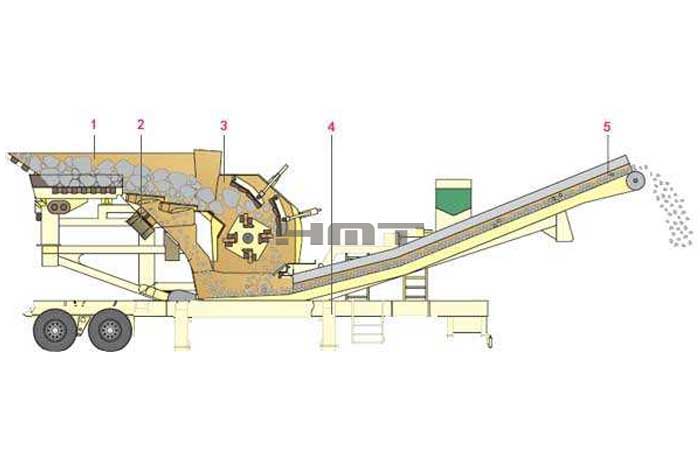

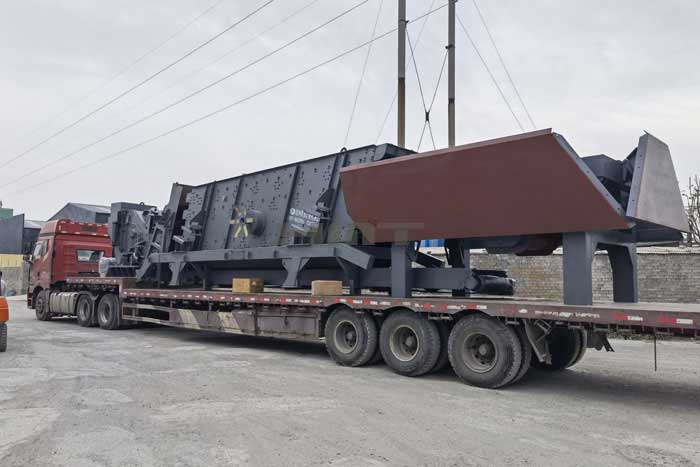

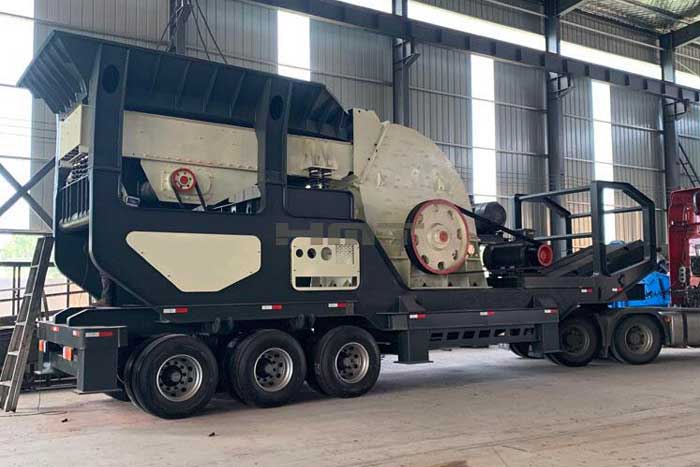

A Primary crushing plant: impact crusher matching with vibrating feeder, which is usually used for crushing construction waste/concrete waste.

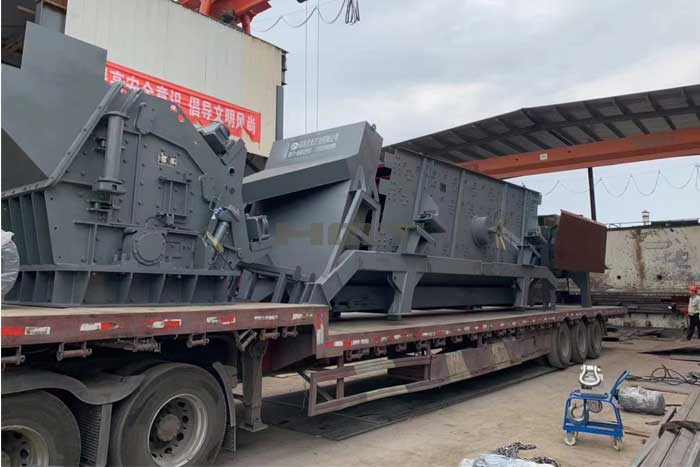

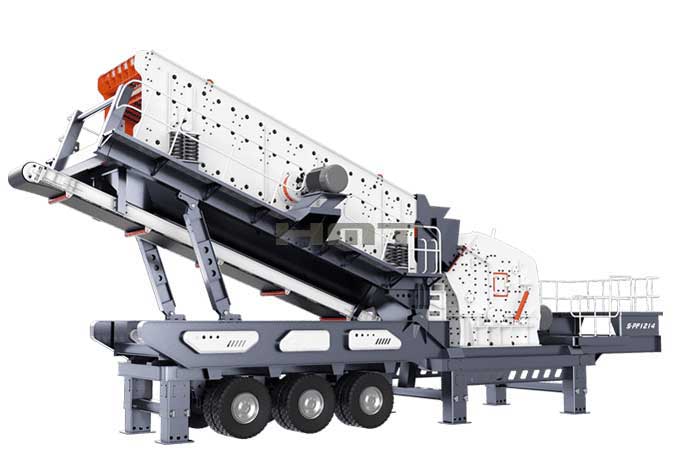

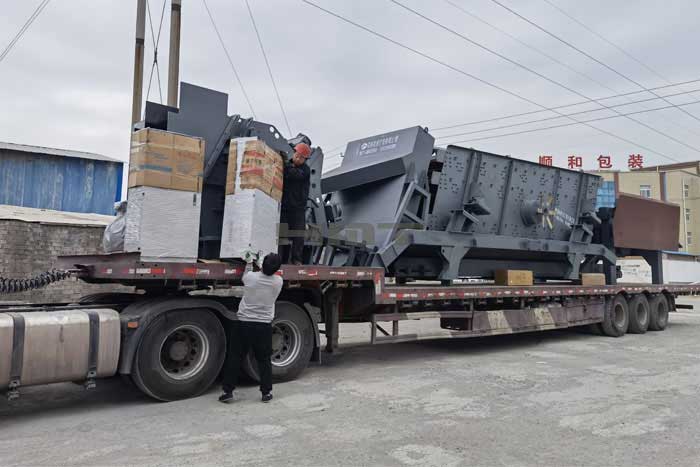

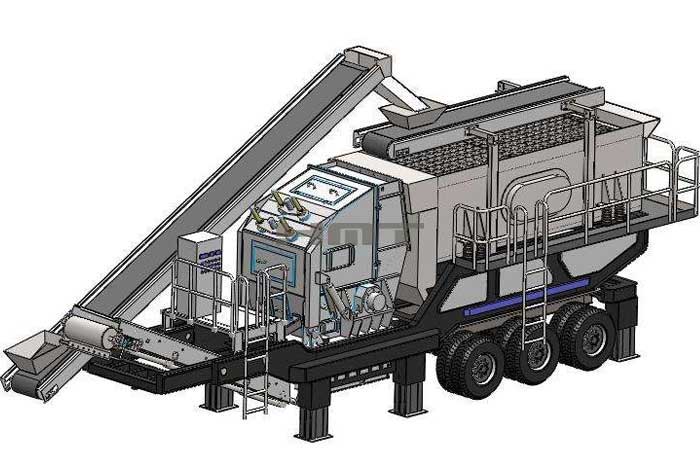

B Secondary crushing plant: impact crusher matching with vibrating screen, which is ususally used for secondary crushing and separating medium hardness stone like limestone.

Features

1. Optimized matching for different models;

2. Excellent mobility, convenient operation;

3. Reliable performance, high efficiency;

4. Lower the cost of transportaion;

5. Reliable performance and convenient maintenance;

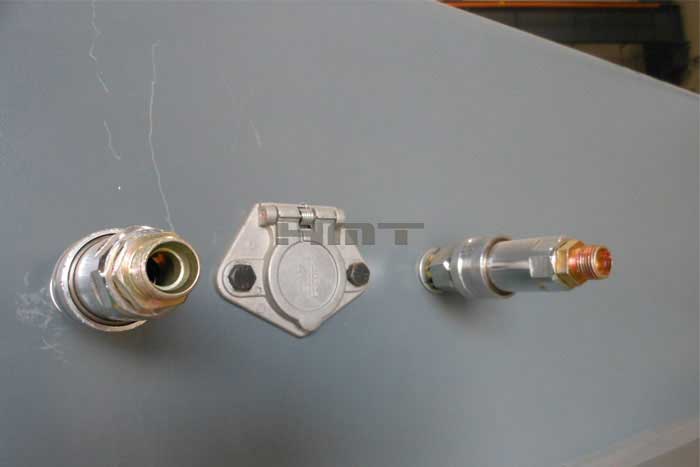

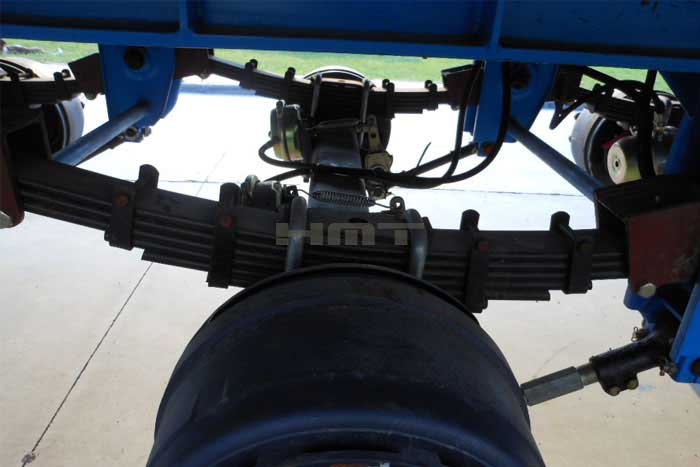

6. Standard lighting and braking system;

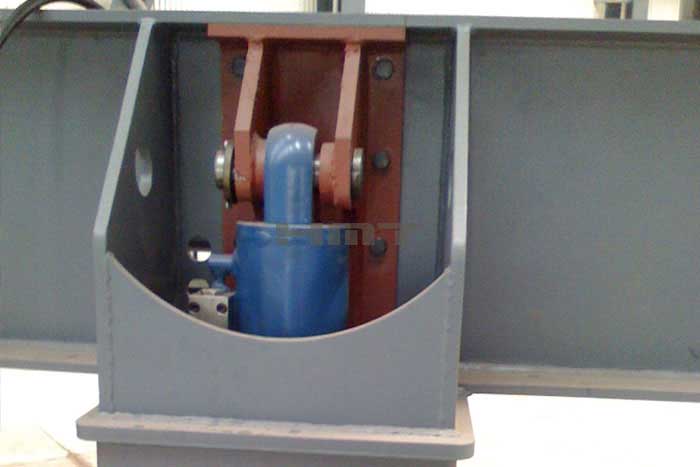

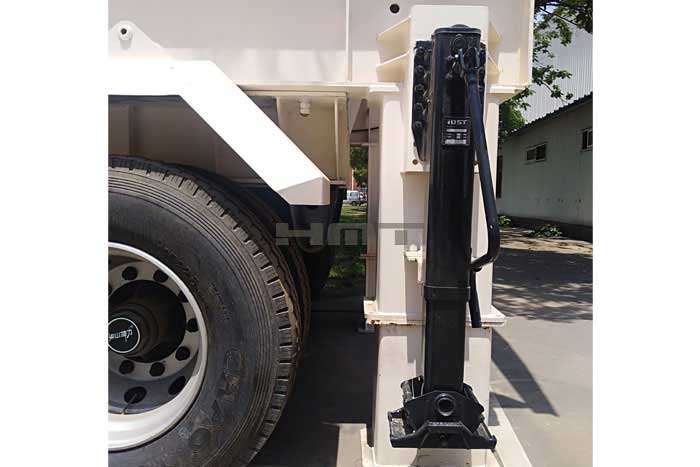

7. Hydraulic lifting system.

8. High safety standard. Safety guards.

9. Provide customized design and manufacturing services.

PRODUCT DATA:

Primary crushing plant

Model		PW-I100F38	PW-I200F42	PW-I300F49
Impact Crusher	Model	CI150/NP1110	CI250/NP1213	NP1313
	Motor Power(kw)	160kw	250kw	250kw
	Max Feed edge(mm)	600	600	700
	Capacity(t/h)	100-250	200-300	300-400
Vibraing Feeder	Model	ZSW/GZT3895	ZSW4211/GZT1245	ZSW4913/GZT1345
Vibraing Feeder	Motor Power(kw)	11kw	15kw	22kw
Main Belt Conveyor	Model	B800×8500	B1000x9000	B1000x10000
Main Belt Conveyor	Motor Power(kw)	5.5kw	7.5kw	7.5kw
Magnetic Separator	Model	B500×3000	B500x3000	B650×3500
Magnetic Separator	Motor Power(kw)	2.2kw	2.2kw	3kw
Driving Mode		electricity	electricity	electricity
Magnetic Separator (optional)	Model	RCYQ-8	RCYQ-10	RCYQ-10
Magnetic Separator (optional)	Motor Power(kw)	2.2kw	3kw	3kw
Weight		39	42	51
Overall Sizes	Transportation Length(mm)	12500	13000	14500
	Transportation Width(mm)	2600	2600	2700
	Transportation Height(mm)	3870	3870	4200
Axle Qty		2	2/3	3

Secondary crushing plant

Model		PW-I150S1860	PW-I250S2160
Impact Crusher	Model	CI150/NP1110	CI250/NP1213
Main Belt Conveyor	Model	B800×12000	B1000×12000
Main Belt Conveyor	Motor Power(kw)	7.5kw	11kw
Side Stacking Conveyor 1#	Model	B650×7000	B650x7000
Side Stacking Conveyor 1#	Motor Power(kw)	3kw	3kw
Side Stacking Conveyor 2#	Model	B650×7000	B650x7000
Side Stacking Conveyor 2#	Motor Power(kw)	3kw	3kw
Stacking Belt Conveyor 3# under vibrating screen	Model	B800×7000	B800×9000
Stacking Belt Conveyor 3# under vibrating screen	Motor Power(kw)	5.5kw	5.5kw
Vibrating Screen	Model	3YKS1860	3YKS2160
Vibrating Screen	Motor Power(kw)	30kw	30kw
Weight		34	48
Overall Sizes	Transportation Length(mm)	14500	15000
	Transportation Width(mm)	3000	3000
	Transportation Height(mm)	4400	4500
Axle Qty		2	3

Note:
1. The processing capacity of crusher is related to the hardness of stone, feed granularity, discharge granularity and other factors.
2. Optional: iron remover, dustproof spray system, belt cover and side belt conveyor.
3. Provide customized design and manufacturing services.
4. As the technology of our company is constantly updated, the parameters will be changed without notice. If you need other models, please contact HMT engineer.
