CAPACITY : 30-750t/h
MAX FEEDING SIZE : 45-80mm
APPLICATION : Stone mining, metallurgy industry, building material, highway, railway, and chemical,etc.
RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.)
River pebbles
limestone
Granite
Basalt
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

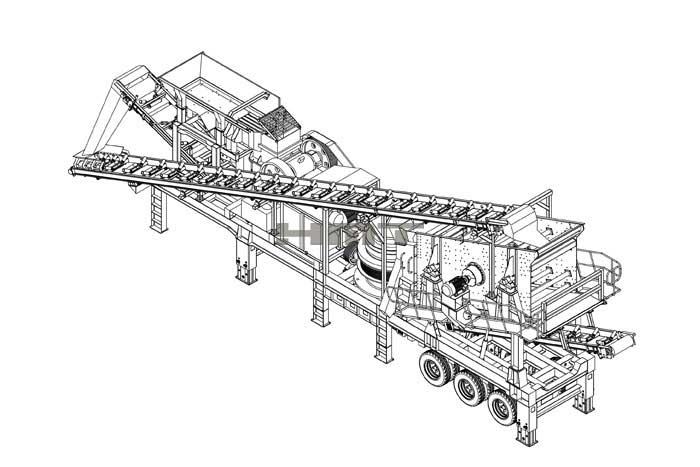

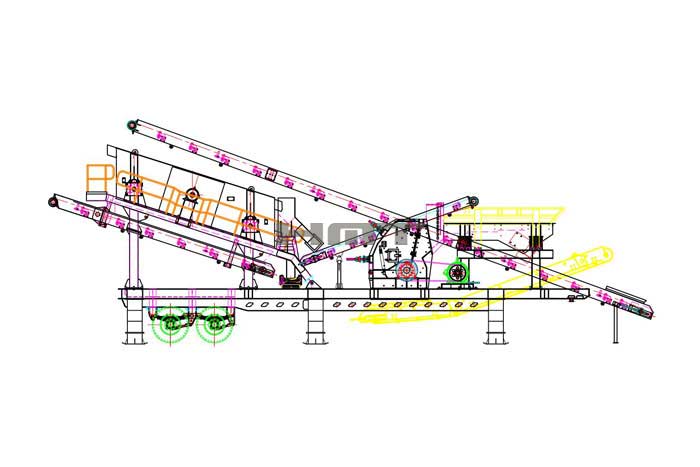

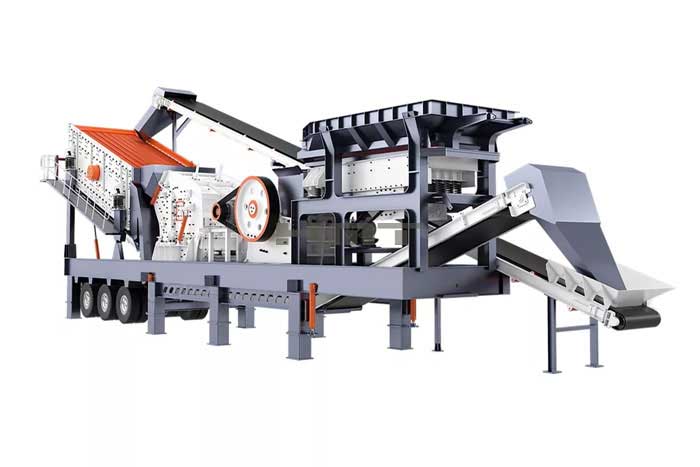

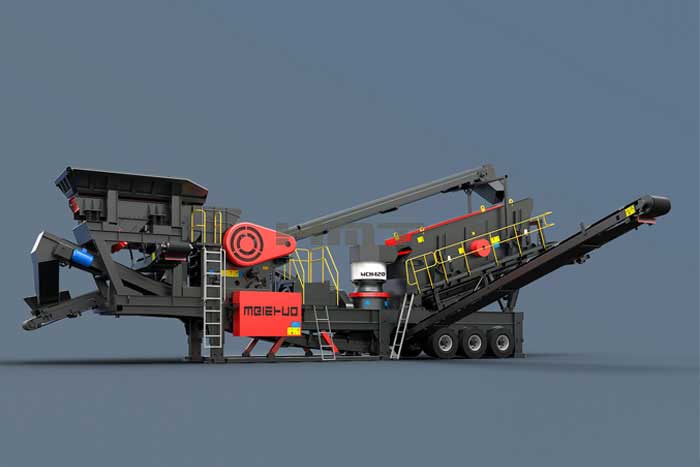

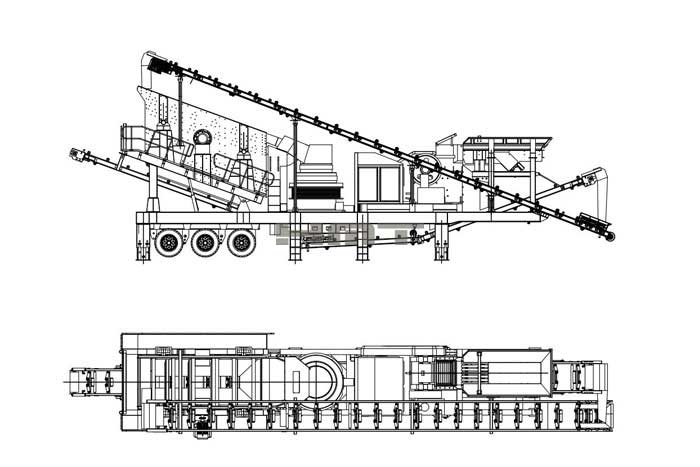

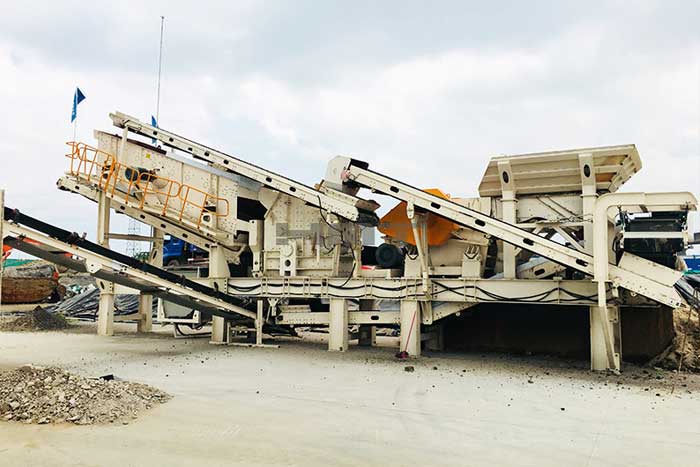

PW-A All-in-oneTyre Mounted Mobile Crushing and Screening Plant perfectly integrates four equipment units with a capacity of 30 to 100 tons, and the one-piece universal design of the frame, the feed coarse crushing module and the screening module are exactly the same.
According to the different materials such as soft rock or hard rock, only the corresponding impact crusher or cone crusher is selected.
1. Optimized matching for different models;
2. Excellent mobility, convenient operation;
3. Reliable performance, high efficiency;
4. Lower the cost of transportaion;
5. Reliable performance and convenient maintenance;

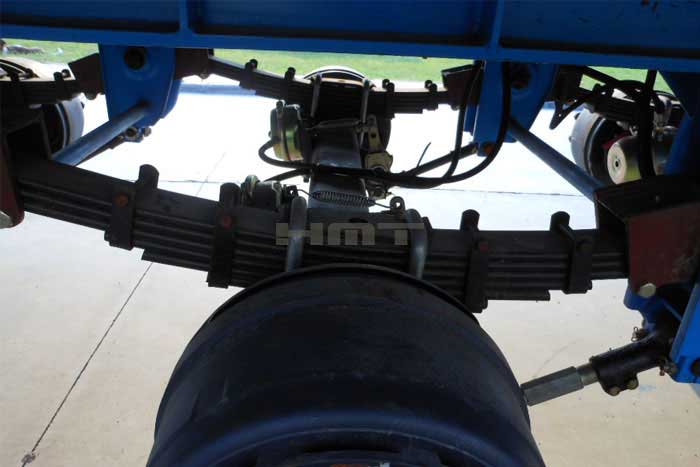

6. Standard lighting and braking system;

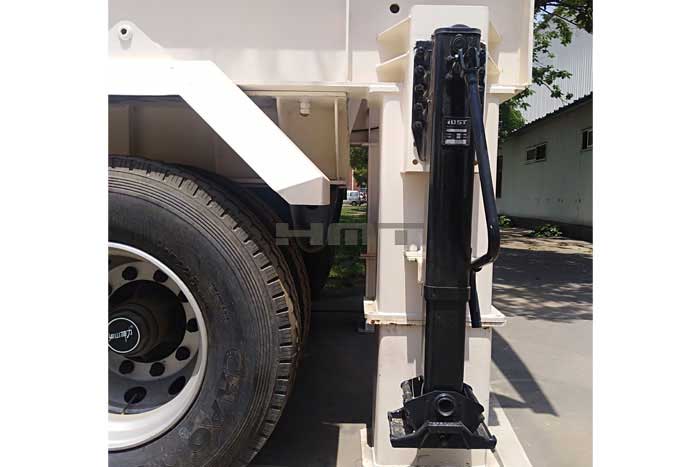

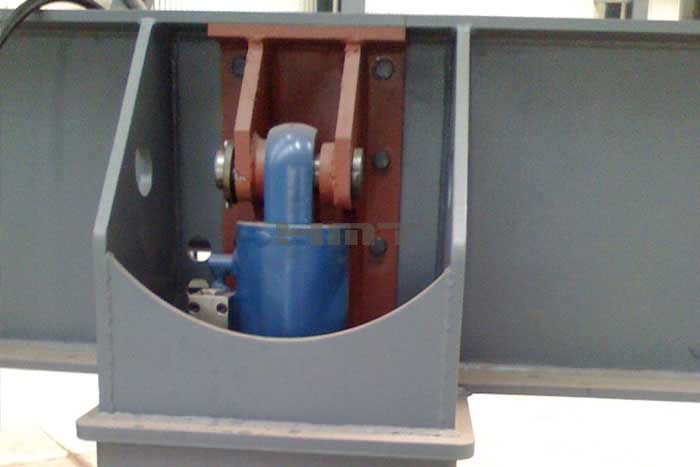

7. Hydraulic lifting system.
8. High safety standard. Safety guards.
9. Provide customized design and manufacturing services.
| Model | PW-AC80IF38S1545 | PW-AC80CF38S1545 | |
| Jaw Crusher | Model | C80 | C80 |
| Motor Power(kw) | 75kw | 75kw | |
| Impact Crusher/Cone Crusher | Model | CI150/NP1110 | PSG75/MCH420 |
| Motor Power(kw) | 110kw | 90kw | |
| Max Feed edge(mm) | 450 | 450 | |
| Capacity(t/h) | 80-150t/h | 50-90t/h | |
| Feed Hopper | Volume(m3) | 4.5m3/8m3 | 5m3/8m3 |
| Vibrating Feeder | Model | GZT0835 | GZT0835 |
| Motor Power(kw) | 2x2.2kw | 2x2.2kw | |
| Vibrating Screen | Model | 3YKS1548 | 3YKS1545 |
| Motor Power(kw) | 15kw | 15kw | |
| Main Belt Conveyor | Model | B800-9000 | B800-8000 |
| Motor Power(kw) | 5.5kw | 5.5kw | |
| Feed Belt Conveyor | Model | B650-14000 | B650-13000 |
| Motor Power(kw) | 7.5kw | 7.5kw | |
| Stacking Conveyor under Vibrating Screen | Model | B800-6000 | B800-6000 |
| Motor Power(kw) | 4kw | 4kw | |
| Stacking Belt Conveyor | Model | B650-10000 | B650-10000 |
| Motor Power(kw) | 5.5kw | 5.5kw | |
| quantity(nos) | 2 | 2 | |
| Driving Mode | electricity | electricity | |
| Magnetic Separator (optional) | Model | RCYB-8 | RCYB-8 |
| Overall Sizes | Transportation Length(mm) | 13000 | 12000 |
| Transportation Width(mm) | 2400 | 2200 | |
| Transportation Height(mm) | 3950 | 3950 | |
| Axle Qty | 2/3 | 3 | |
Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
