CAPACITY : 70-955t/h
MAX FEEDING SIZE : 30-60mm
APPLICATION : Engineering, highway,railway, passenger line, bridges,airport runways,municipal engineering,high-rise
RAW MATERIALS :Iron ore, copper ore, cement, artificial sand, fluorite, limestone, slag, etc.
Iron ore
copper ore
Artificial sand
Slag
60s online
customer service
2 days customize
solutions
Factory
visiting anytime

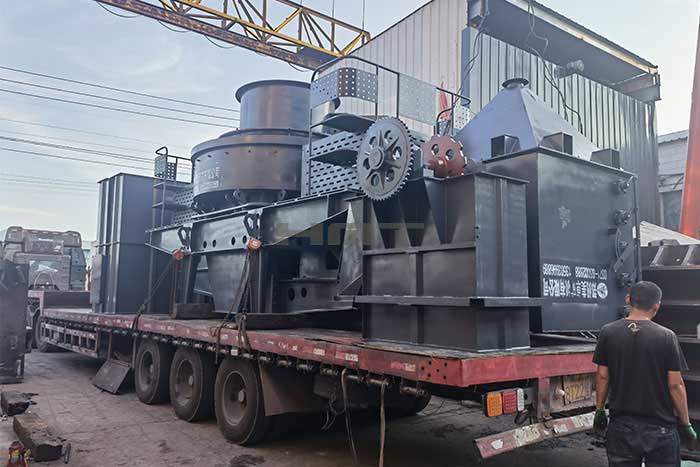

1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

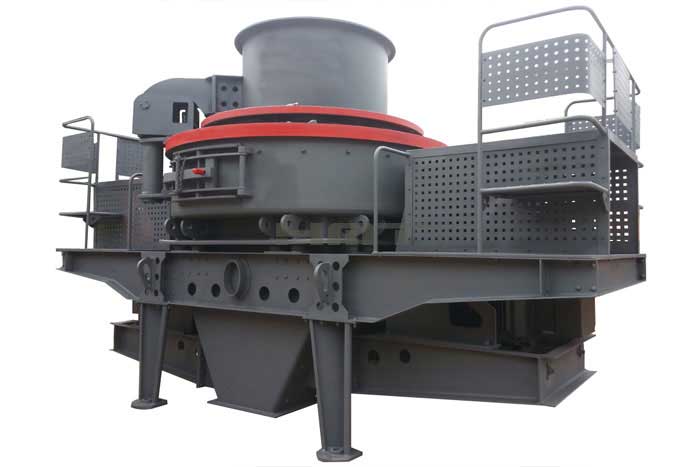

MVS sand making machine is also known as 5X and 6X series impact crusher.
According to the lubrication method, the machine is divided into two types: grease lubrication and thin oil lubrication. Its performance plays an important role in various ore breaking equipment, and has been widely used in machine-made sand production and stone shaping. Production of building aggregates, road fabrics, bedding materials, asphalt concrete and cement concrete aggregates; Materials crushing in building materials, metallurgy, chemical industry, mining, refractory materials, cement, abrasives and other industries.
1. High-quality finished product crushing
2. Multi - use of one machine
3. Multi-stage crushing to optimize product quality
4. High safety protection level
5. Convenient maintenance
6. Easy installation
| Model | Max Feed edge (mm) | Capacity (t/h) | Linear Speed | Thin Oil Lubricated Pump Station | Motor Power | |||||||
| Sand Making | Reshaping | Fed From Center | Fed From Center and Around | （m/s） | Oil Pump Power（kw） | Safeguard | Flow （L/min） | Tank Volume（L） | Oil Pump Presure（bar） | Tank Heater Power (kw) | (kw) | |
| MVS1280 | ≤40（60） | ≤60 | 550-655 | 750-955 | 65-80m/s | 2×0.75kw | Double Oil Pump Intelligent Switching, No Oil Flow, No Oil Pressure Automatic Stop; Air Cooling Intelligent Cooling; Automatic Start Heating In Winter. | 10L/min | 200L | 150bar | 2×4kw | 2×400kw |
| MVS1263 | ≤40（50） | ≤60 | 455-485 | 650-855 | 2×315kw | |||||||
| MVS1150 | ≤40（50） | ≤55 | 345-368 | 550-725 | 2×250kw | |||||||
| MVS1145 | ≤30（40） | ≤40 | 250-360 | 500-640 | 2×220kw | |||||||
| MVS9532 | ≤30（35） | ≤40 | 180-280 | 350-540 | 2×160kw | |||||||
| MVS8522 | ≤30 | ≤40 | 120-190 | 240-380 | 2×110kw | |||||||
| MVS7615 | ≤30 | ≤35 | 70-140 | 150-280 | 2×75kw | |||||||
Note:
1. The above processing capacity in the table is the parameter corresponding to the rock with a loose density of 1.6t/m3;
2. The above processing capacity will be changed as per the nature of the material, feeding method, feeding particle size, rotor linear speed.
