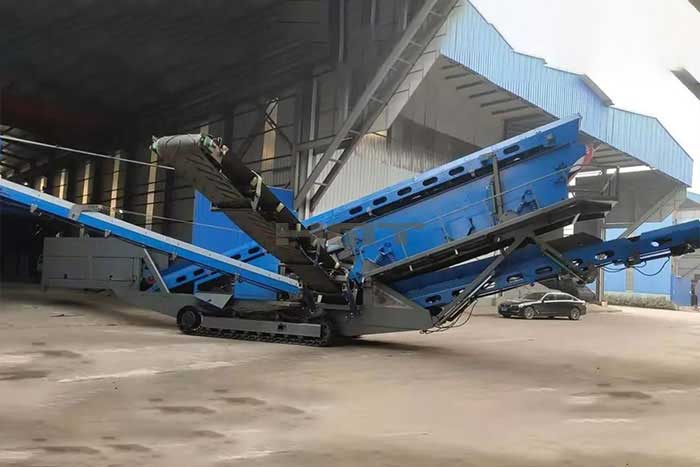

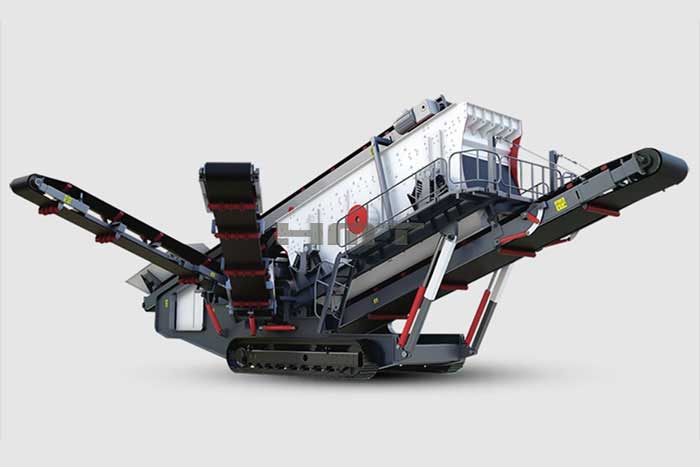

MT-S Tracked Mobile Screening Plant

CAPACITY : 30-200t/h

MAX FEEDING SIZE : 50-700mm

APPLICATION : limestone, granite, basalt, river stone, iron ore, gold ore, copper ore, andesite, gabbro

RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.

River pebbles
limestone
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

Tracked mobile crushing plant is a kind of high efficiency crushing equipment, which adopts self-drive mode, advanced technology and complete functions. This device can reach any location on the work site under any terrain conditions. This can reduce the handling of materials and facilitate the coordination of all auxiliary mechanical equipment. With wireless remote control, the crusher can be easily driven onto a trailer and transported to the work site. Because there is no need for assembly time, the equipment can be put into work immediately upon arrival at the work site. The mobile crushing station has a large crushing ratio, and its optimized design can meet the most needed technical characteristics of the crusher, with high productivity and uniform particle size of the finished material.
A new type of mobile crushing station developed by engineers combining the advantages of the most advanced and stable mobile crushing station in the world.

Features

1. Light weight, small size, especially suitable for narrow site work;

2. Convenient transportation, track walking, no damage to the road surface, equipped with multi-functional accessories, a wide range of adaptation;

3. Through the combination of different models, a powerful crushing operation line can be formed to complete multi-demand processing operations;

4. The whole machine adopts all-wheel drive, which can realize in-situ steering, standard configuration, quick change device, with perfect safety protection function, especially suitable for narrow and complex areas;

5. Fuel saving, fuel saving rate of up to 25%;

6. Random attached power group - optimal design;

7. Can climb operations to meet the crushing requirements of mines, hydropower stations, coal mines and other projects

PRODUCT DATA:

Model		MT-S1237T	MT-S1548D	MT-S1548T	MT-S1860D	MT-S1860T	MT-S2060D	MT-S2060T	MT-S2460T
Hopper	Volume(m3)	3m3	3.5m3	3.5m3	4.0m3	4.0m3	4.0m3	4.0m3	5m3
Feeding Belt Conveyor	Size WxL (mm)	800x9000mm	1000x11000mm	1000x11000mm	1000x15000mm	1000x15000mm	1000x15000mm	1000x15000mm	1200x15000mm
Feeding Belt Conveyor	Power(kw)	5.5kw	11kw	11kw	11kw	11kw	15kw	15kw	22kw
Vibrating Screen	Model	3YKS1237	2YKS1548	3YKS1548	2YKS1860	3YKS1860	2YKS2160	3YKS2160	3YKS2460
	Power(kw)	11kw	15kw	15kw	22kw	22kw	22kw	22kw	30kw
	Screen Layers	3 layers	2 layers	3 layers	2 layers	3 layers	2 layers	3 layers	3 layers
Discharge Belt Conveyor for 1st layer mesh	Size WxL (mm)	B500×5500mm	B500×6500mm	B500×6500mm	B500×6500mm	B500×6500mm	B650-7500mm	B650-7500mm	B650-7500mm
	Discharge Height(mm)	2600mm	2800mm	2800mm	2800mm	2800mm	2800mm	2800mm	2800mm
	Power(kw)	3kw	4kw	4kw	4kw	4kw	4kw	4kw	4kw
Discharge Belt Conveyor for 2nd layer mesh	Size WxL (mm)	B500×6500mm	B500×7500mm	B500×7500mm	B500×7500mm	B500×7500mm	B650×7500mm	B650×7500mm	B650×7500mm
	Discharge Height(mm)	2600mm	3200mm	3200mm	3200mm	3200mm	3200mm	3200mm	3200mm
	Power(kw)	3kw	4kw	4kw	4kw	4kw	4kw	4kw	4kw
Discharge Belt Conveyor for 3rd layer mesh	Size WxL (mm)	B500×6500mm	————	B500×7500mm	————	B500×7500mm	————	B650×7500mm	B650×7500mm
	Discharge Height(mm)	2600mm	————	3200mm	————	3200mm	————	3200mm	3200mm
	Power(kw)	3kw	————	4kw	————	4kw	————	4kw	4kw
Transition Belt Conveyor 1#	Size WxL (mm)	B500×2500mm	————	B500×2500mm	————	B500×2800mm	————	B650×2800mm	B650×2800mm
	Discharge Height(mm)	2000mm	————	2200mm	————	2200mm	————	2200mm	2200mm
	Power(kw)	2.2kw	————	2.2kw	————	2.2kw	————	2.2kw	2.2kw
Discharge Belt Conveyor under Vibrating Screen	Size WxL (mm)	B800×6500mm	B800×8500mm	B800×8500mm	B1000×10000mm	B1000×10000mm	B1000×10000mm	B1000×10000mm	B1200×10000mm
	Discharge Height(mm)	2800mm	3200mm	3200mm	3700mm	3700mm	3700mm	3700mm	3700mm
	Power(kw)	4kw	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw	7.5kw	7.5kw
Total Power(kw)		31.7kw+37.5kw	39.5kw+45kw	45.7kw+45kw	48.5kw+45kw	54.7kw+75kw	52.5kw+75kw	58.7kw+75kw	73.7kw+75kw
Dual-power Assembly	Driving Mode	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity
Capacity(t/h)		30-120t/h	100-300t/h	100-300t/h	150-350t/h	150-350t/h	200-400t/h	200-400t/h	250-450t/h
Weight		25t	28t	32t	33t	36t	35t	38t	42t
Overall Sizes	Transportation Length(mm)	13000mm	14000mm	14000mm	15500mm	15500mm	15500mm	15500mm	15500mm
	Transportation Width(mm)	2900mm	3200mm	3200mm	3400mm	3400mm	3600mm	3600mm	3900mm
	Transportation Height(mm)	3400mm	3400mm	3600mm	3600mm	3800mm	3600mm	3800mm	3900mm

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
