PCZ/XPCQ Heavy Hammer Crusher

CAPACITY : 400-1500mm

MAX FEEDING SIZE : 35-100mm

APPLICATION : Engineering, highway,railway, passenger line, bridges,airport runways,municipal engineering,high-rise

RAW MATERIALS :limestone, bluestone, coal gangue, shale, gravel, gneiss, etc

Iron ore
copper ore
Artificial sand
Slag

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

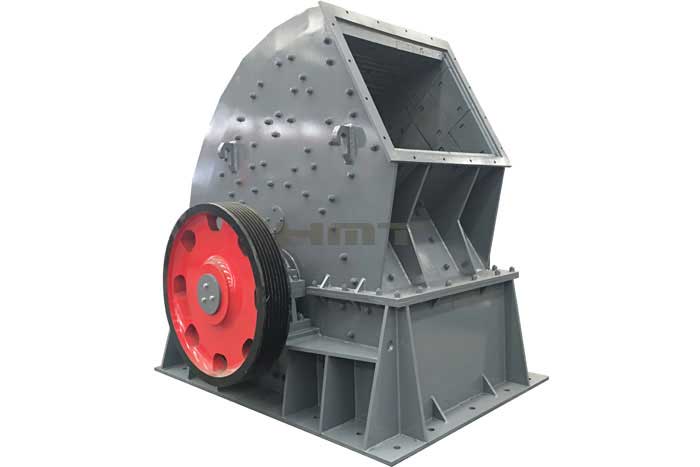

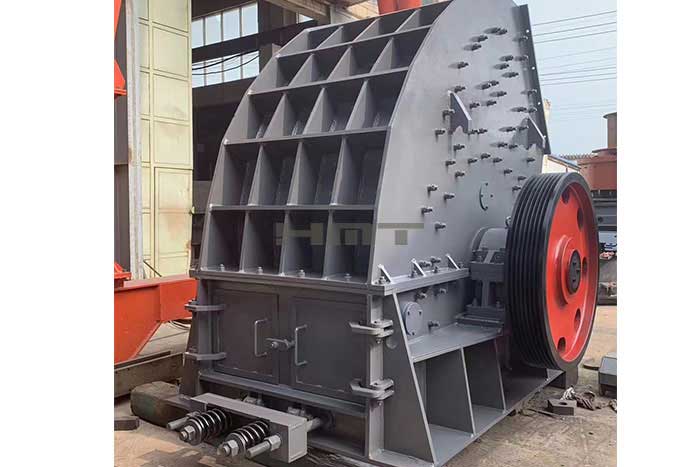

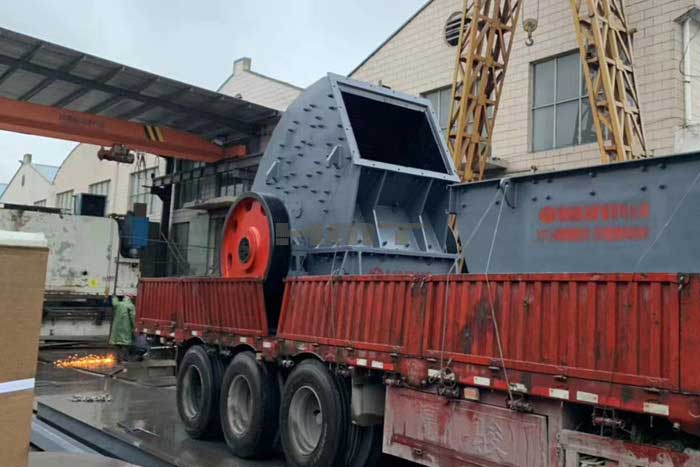

PCZ/XPCQ heavy-duty hammer crusher

Our company has many years of experience in designing and manufacturing heavy-duty hammer crusher, this series of crusher is suitable for brittle materials with compressive strength not more than 150Mpa, such as limestone, bluestone, coal gangue, shale, gravel, gneiss, etc.

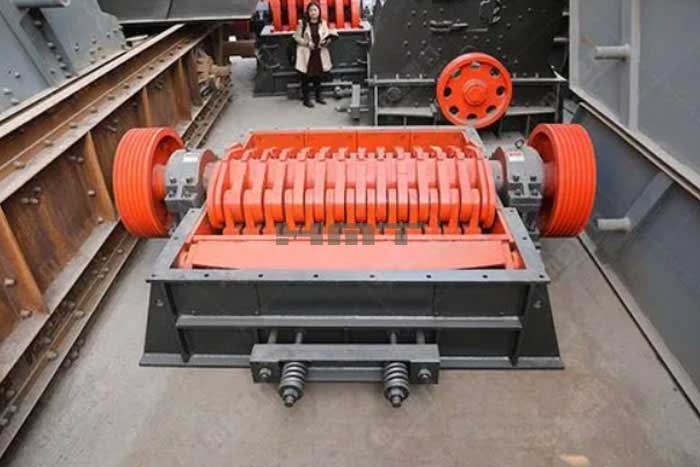

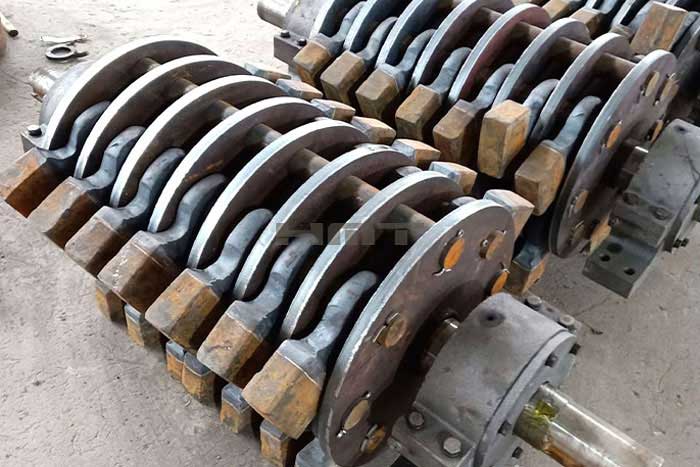

Easy maintenance, no grate design, low powder yield, production of non-stuck machine in rainy day, solid shell without deformation, rotor with wear-resistant retainer, extend service life. In the crushing of brittle materials such as limestone, it can directly replace the traditional process of "jaw crushing + impact crushing" to achieve the true sense of "two-in-one" crushing, and the production and maintenance costs are greatly reduced.

This series of hammer crusher has PCZ heavy hammer crusher and XPCQ light reshaper.

Features

1. Large feed particle size, small discharge particle size, change three crushing to one crushing, the yield can reach 80%, and the cost can be reduced by 35%.

2. The grain shape of the product is round, polyhedral, uniform particle size, less powder yield.

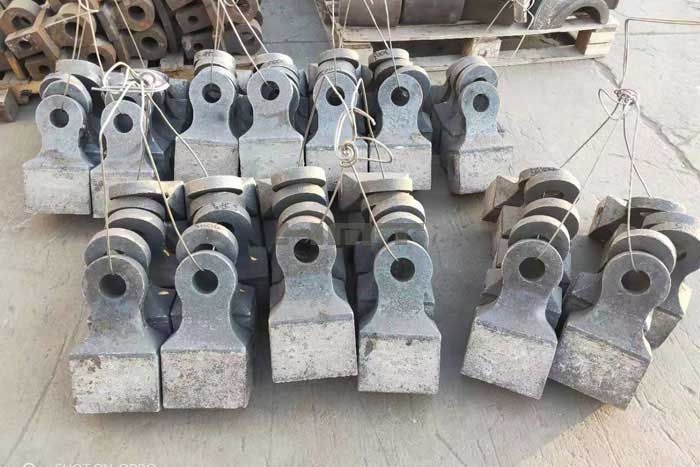

3. Wear-resistant parts using bimetal high chromium alloy wear-resistant hammer, hammer handle impact resistant, hammer durable, long service life.

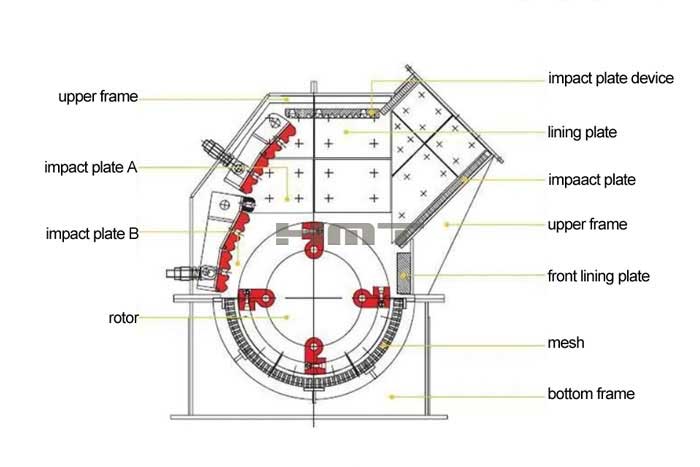

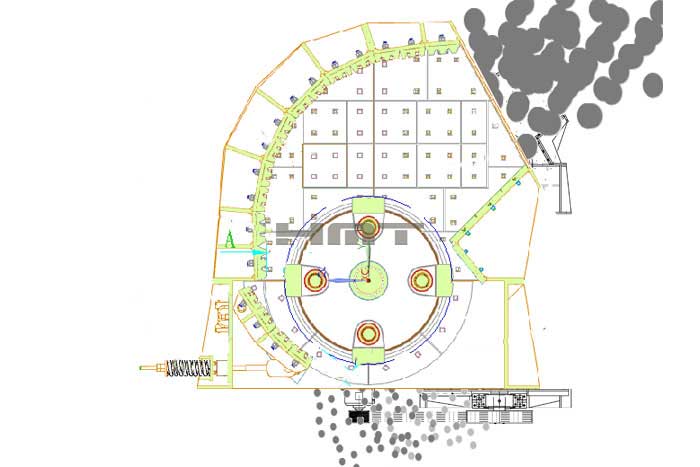

4. Optimize the structure of the counter plate in the third counter area, design a diversion channel, reduce the over-crushing rate, improve the production capacity at the same time, reduce the powder yield.

5. Optimize the adjustment mechanism of the bottom counter frame, the adjustment gap of the discharge port is divided into mechanical debugging and hydraulic cylinder adjustment, which can be selected according to user needs.

6. Snail shell design for body, the shell is firm without deformation.

PRODUCT DATA:

PCZ Counterstrike Heavy Hammer Crusher

Model	Rotor Spec	Feed Opening Size	Max Feed edge	Capacity	Motor Power	Overall Dimension
Model	(mm)	(mm)	(mm)	(t/h)	(kw)	(mm)
PCZ1308III	1310x790	850x800	＜600	100-160	132-4P	2818x2100x2390
PCZ1310V	1310x1050	890x1075	＜650	150-180	160-4P	2950x2250x2495
PCZ1512V	1500x1160	1200x900	＜750	250-350	2x160/180-4P	3260x2624x2750
PCZ1515V	1500x1360	1400x900	＜750	300-420	2x180/200-4P	3260x2824x2750
PCZ1615V	1650x1452	1500x1200	＜1000	420-500	2x200/220-4P	3667x2937x3436
PCZ1815V	1850x1520	1500x1280	＜1000	520-620	2x250-4P	3680x2915x3515
PCZ1620V	1660x1900	2000x1200	＜1200	800-1000	2x400-4P	3667x3200x3436
PCZ1820V	1800x1964	2000x1200	＜1200	1000-1500	2x450-4P	3700x3270x3515
PCZ2225V	2200x2485	2530x1560	＜1500	2000-3000	1250-6P	4455x4565x4670

XPCQ Light Type Reshaping Hammer Crusher

Model	Rotor Spec	Feed Opening Size	Max Feed edge	Capacity	Motor Power	Overall Dimension
Model	(mm)	(mm)	(mm)	(t/h)	(kw)	(mm)
XPCQ0706	700x570	618x510	＜400	50-70	75-4P	1950x1340x1480
XPCQ0808	800x750	780x610	＜500	80-100	132-4P	2280x1790x1670
XPCQ0910	900x1000	1070x750	＜600	150-200	2x110-4P	2600x2200x1940
XPCQ1012	1000x1180	1255x810	＜650	250-300	2x132-4P	2800x2310x2210
XPCQ1213	1200x1280	1350x900	＜750	300-380	2x160-4P	2970x2580x2510
XPCQ1216	1270x1490	1530x920	＜750	400-500	2x200-4P	3070x3380x2580
XPCQ1220	1220x1950	2000x900	＜750	500-600	2x220-4P	3080x3380x2580
XPCQ1620	1620x2200	2200x1000	＜800	600-800	2x250-4P	3695x3250x3450

Note:
1. The above processing capacity in the table is the parameter corresponding to the rock with a loose density of 1.6t/m3;
2. The above processing capacity will be changed as per the nature of the material, feeding method, feeding particle size, rotor linear speed.
