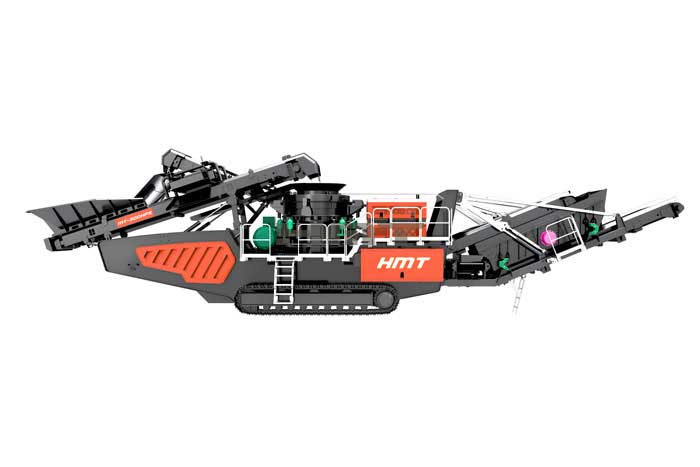

MT-C Tracked Mobile Cone Crushing Plant

CAPACITY : 30-200t/h

MAX FEEDING SIZE : 50-700mm

APPLICATION : limestone, granite, basalt, river stone, iron ore, gold ore, copper ore, andesite, gabbro

RAW MATERIALS :River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.

River pebbles
limestone
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

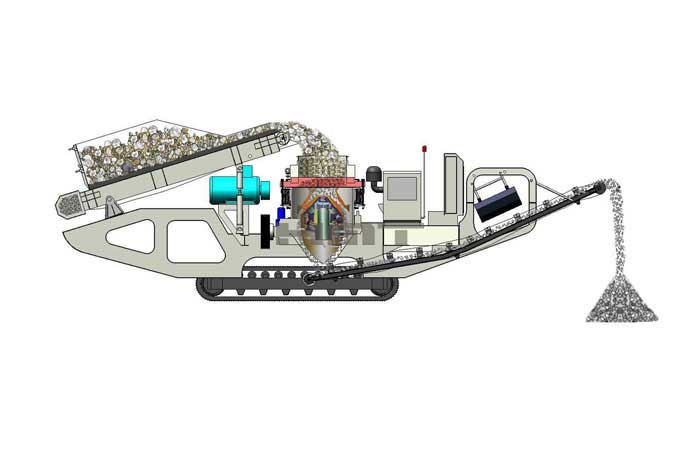

Tracked mobile crushing plant is a kind of high efficiency crushing equipment, which adopts self-drive mode, advanced technology and complete functions. This device can reach any location on the work site under any terrain conditions. This can reduce the handling of materials and facilitate the coordination of all auxiliary mechanical equipment. With wireless remote control, the crusher can be easily driven onto a trailer and transported to the work site. Because there is no need for assembly time, the equipment can be put into work immediately upon arrival at the work site. The mobile crushing station has a large crushing ratio, and its optimized design can meet the most needed technical characteristics of the crusher, with high productivity and uniform particle size of the finished material.
A new type of mobile crushing station developed by engineers combining the advantages of the most advanced and stable mobile crushing station in the world.

Features

1. Light weight, small size, especially suitable for narrow site work;

2. Convenient transportation, track walking, no damage to the road surface, equipped with multi-functional accessories, a wide range of adaptation;

3. Through the combination of different models, a powerful crushing operation line can be formed to complete multi-demand processing operations;

4. The whole machine adopts all-wheel drive, which can realize in-situ steering, standard configuration, quick change device, with perfect safety protection function, especially suitable for narrow and complex areas;

5. Fuel saving, fuel saving rate of up to 25%;

6. Random attached power group - optimal design;

7. Can climb operations to meet the crushing requirements of mines, hydropower stations, coal mines and other projects

PRODUCT DATA:

Model		MT-C90S	MT-C160S	MT-C160	MT-C250S	MT-C250	MT-C315S	MT-C315
Belt Conveyor	Model	B800×7000mm	B1000×7000mm	B1000×7000mm	B1000×7000mm	B1000×7000mm	B1200×8000mm	B1200×8000mm
	Power(kw)	7.5kw	11Kw	11Kw	11Kw	11Kw	15Kw	15Kw
	Capacity(t/h)	80-150t/h	100-200t/h	100-200t/h	200-400t/h	200-400t/h	300-500t/h	300-500t/h
	Feeding Height(mm)	2580mm	2580mm	2580mm	2580mm	2580mm	2680mm	2680mm
	Hopper Volume(m3)	3.5m³	5m³	5m³	5m³	5m³	3m³	3m³
Cone Crusher	Model	MHP100/MCH420	MHP200/MCH430	MHP200/MCH430/PSG155	MHP300/MCH440/MGP300	MHP300/MCH440/MGP300	MHP400/MCH660	MHP400/MCH660
	Power(kw)	90kw	160Kw	160Kw	250Kw	250Kw	315KW	315KW
	Adjusting mode for discharge open	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Main Discharge Belt Conveyor	Size WxL (mm)	800×9000mm	1000×9500mm	1000×10000mm	1000×9500mm	1000×10000mm	1200×12000mm	1200×10000mm
	Discharge Height(mm)	2700mm	2800mm	2500mm	2800mm	2500mm	2900mm	2800mm
	Power(kw)	7.5kw	11kw	11kw	11kw	11kw	15kw	15kw
Small Vibrating Screen	Model	1/2KS1335	1/2KS1435	————	1/2KS1435	————	1/2KS1545	————
Small Vibrating Screen	Power(kw)	2×3.7kw	2×3.7kw	————	2×3.7kw	————	2×5.5kw	————
Discharge Belt Conveyor under Vibrating Screen 1#	Size WxL (mm)	B1000×6500mm	B1200×6500mm	————	B1200×6500mm	————	B1200×6500mm	————
	Discharge Height(mm)	2600mm	2600mm	————	2600mm	————	2600mm	————
	Power(kw)	7.5kw	7.5kw	————	7.5kw	————	7.5kw	————
Transition Belt Conveyor 1#	Size WxL (mm)	B500×2000mm	B500×2000mm	————	B500×2000mm	————	B650×2000mm	————
	Discharge Height(mm)	1300mm	1300mm	————	1300mm	————	1300mm	————
	Power(kw)	2.2kw	2.2kw	————	2.2Kw	————	2.2kw	————
Transition Belt Conveyor 2#	Size WxL (mm)	B500×2000mm	B500×2000mm	————	B500×2000mm	————	B650×2000mm	————
	Discharge Height(mm)	900mm	900mm	————	900mm	————	1300mm	————
	Power(kw)	2.2kw	2.2kw	————	2.2Kw	————	2.2kw	————
Discharge Belt Conveyor 2#	Size WxL (mm)	B500×4500mm	B500×4500mm	————	B500×4500mm	————	B650×4500mm	————
	Discharge Height(mm)	2000mm	2000mm	————	2000mm	————	2000mm	————
	Power(kw)	3kw	3kw	————	3kw	————	3kw	————
Returning Belt Conveyor	Size WxL (mm)	B500×8200mm	B500×8200mm	————	B500×8200mm	————	B650×9200mm	————
	Discharge Height(mm)	3900mm	3900mm	————	3900mm	————	3900mm	————
	Power(kw)	4kw	4kw	————	4kw	————	4kw	————
Dual-power Assembly	Driving Mode	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity	Diesel or electricity
Capacity(t/h)		60-250t/h	100-280t/h	100-280t/h	120-400t/h	120-400t/h	200-500t/h	200-500t/h
Overall Sizes	Transportation Length(mm)	16500mm	17000mm	16400mm	17800mm	17400mm	22000mm	20000mm
	Transportation Width(mm)	3300mm	3300mm	2950mm	3500mm	3300mm	3750mm	3500mm
	Transportation Height(mm)	3700mm	3700mm	3600mm	3750mm	3800mm	4100mm	3800mm

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;

MT-C Tracked Mobile Cone Crushing Plant
