CAPACITY : 20-1600t/h
MAX FEEDING SIZE : 200mm
APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
RAW MATERIALS :River stone, gravel, granite, basalt, minerals, quartz, diabase, etc.
iron ore
copper ore
artificial sand
limestone
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

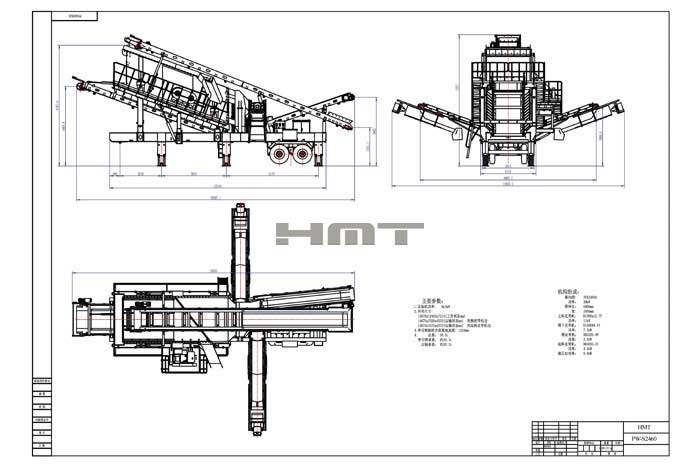

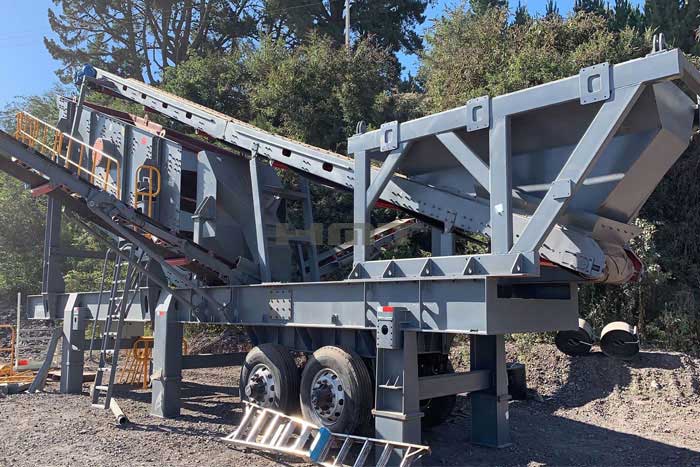

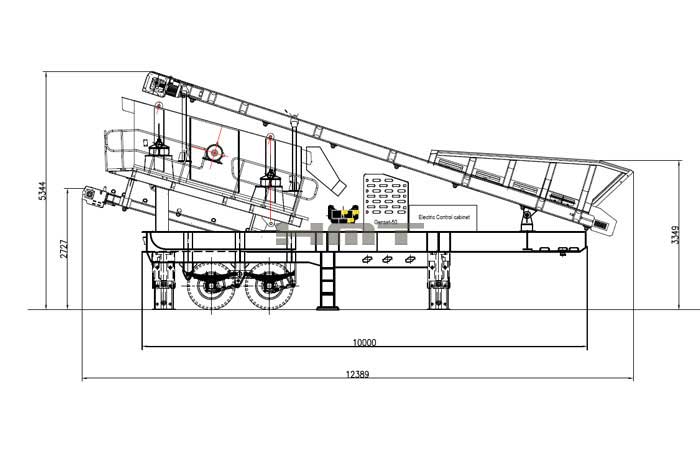

PW-S Tyre Mounted Mobile Screening Plant is a aggregate screening plant designed to screen rock, soil, sand, gravel and building materials.
It can produce 4 different sizes of products simultaneously.
Its unique patented design allows feeding from three sides with a loader or excavator to accommodate any construction site.
1. Optimized matching for different models;
2. Excellent mobility, convenient operation;
3. Reliable performance, high efficiency;
4. Lower the cost of transportaion;
5. Reliable performance and convenient maintenance;

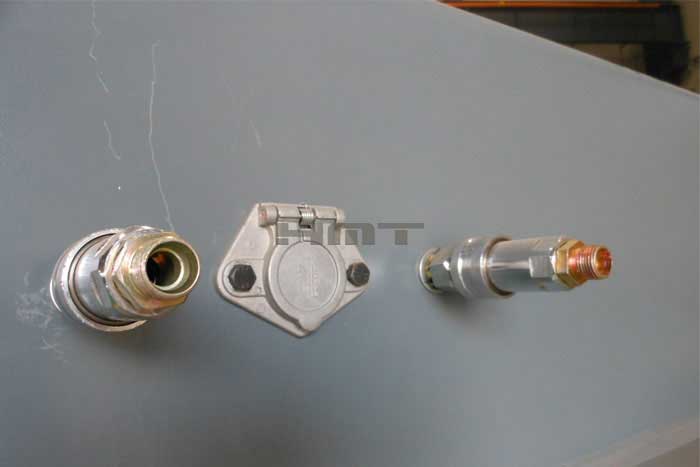

6. Standard lighting and braking system;

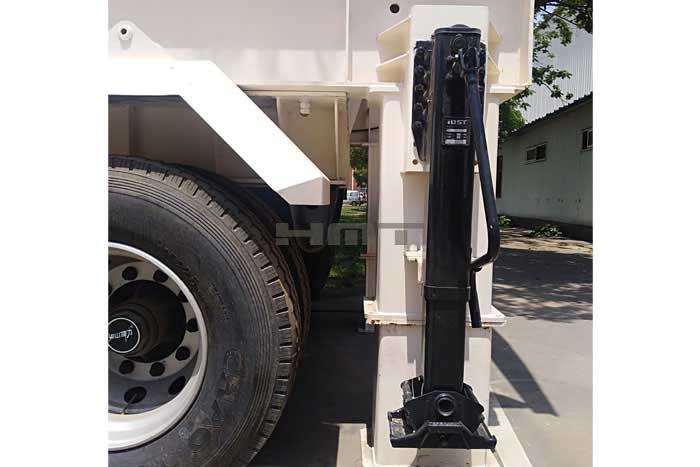

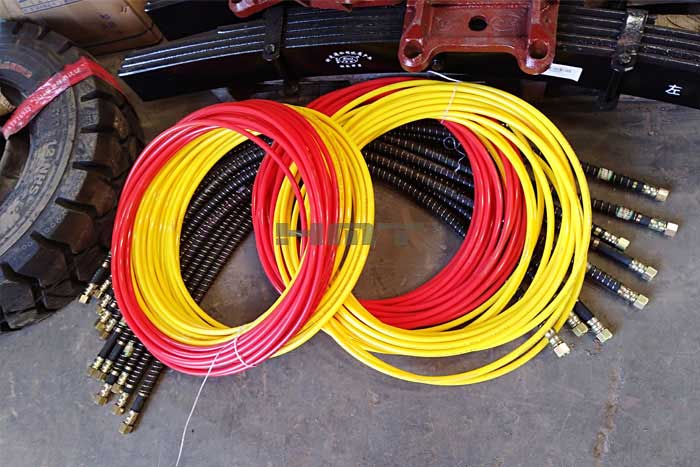

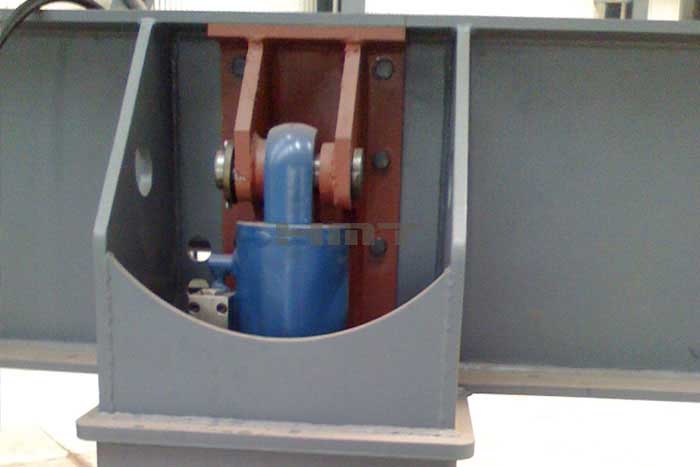

7. Hydraulic lifting system.
8. High safety standard. Safety guards.
9. Provide customized design and manufacturing services.
| Model | PW-S1860 | PW-S2160 | PW-S2460 | PW-S2470 | |
| Vibrating Screen | Model | 2/3YKS1860 | 2/3YKS2160 | 2/3YKS2460 | 2/3YKS2470 |
| Motor Power(kw) | 22/30kw | 30kw | 30kw | 37kw | |
| Feed Belt Conveyor | Model | B800-13000 | B1000-15000 | B1000-15000 | B1200-16000 |
| Motor Power(kw) | 7.5kw | 11kw | 11kw | 18.5kw | |
| Transition Belt Conveyor | Model | B500-2800 | B650-2800 | B650-3000 | B650-3000 |
| Motor Power(kw) | 2.2kw | 3kw | 3kw | 3kw | |
| Discharge Belt Conveyor for 1st layer mesh | Model | B500-7500 | B650-7500 | B650-7500 | B650-7500 |
| Motor Power(kw) | 4kw | 4kw | 4kw | 4kw | |
| Discharge Belt Conveyor for 2nd layer mesh | Model | B500-7500 | B650-7500 | B650-7500 | B650-7500 |
| Motor Power(kw) | 4kw | 4kw | 4kw | 4kw | |
| Discharge Belt Conveyor for 3rd layer mesh | Model | B500-7500 | B650-7500 | B650-7500 | B650-7500 |
| Motor Power(kw) | 4kw | 4kw | 4kw | 4kw | |
| Belt Conveyor Under Vibrating Screen | Model | B800-8500 | B1000-8500 | B1000-8500 | B1200-9000 |
| Motor Power(kw) | 5.5KW | 7.5KW | 7.5KW | 7.5KW | |

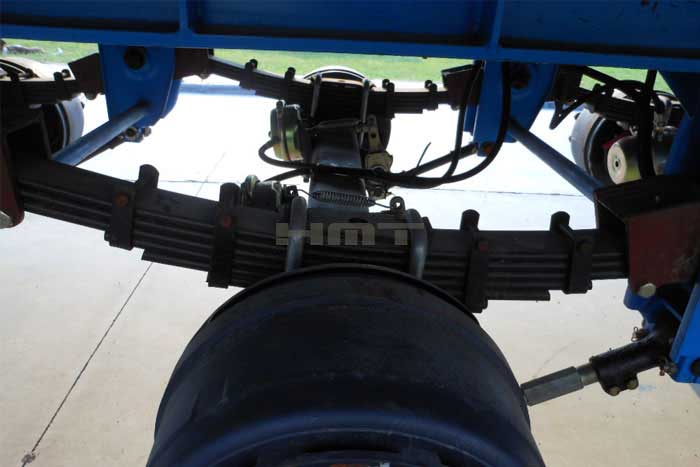

| Axle Qty | 2 | 2 | 2 | 2 | |
