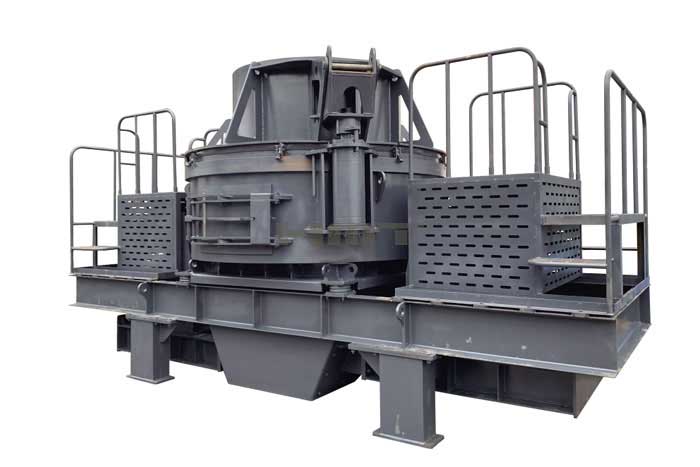

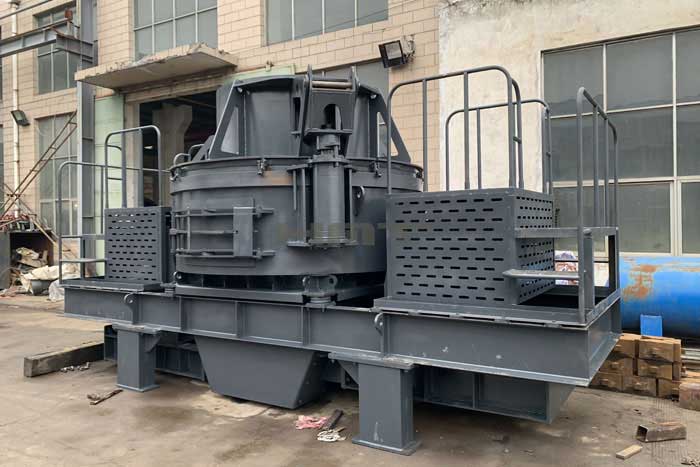

VI/VC Vertical Shaft Impact Crusher

CAPACITY : 30-750t/h

MAX FEEDING SIZE : 45-80mm

APPLICATION : Engineering, highway,railway, passenger line, bridges,airport runways,municipal engineering,high-rise

RAW MATERIALS :Iron ore, copper ore, cement, artificial sand, fluorite, limestone, slag, etc.

Iron ore
copper ore
Artificial sand
Slag

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

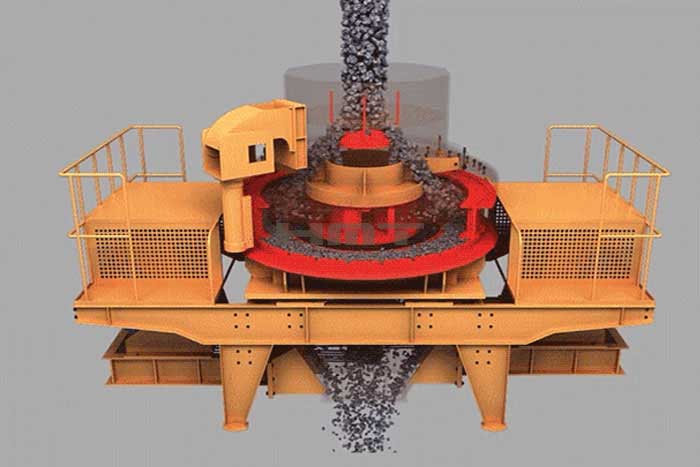

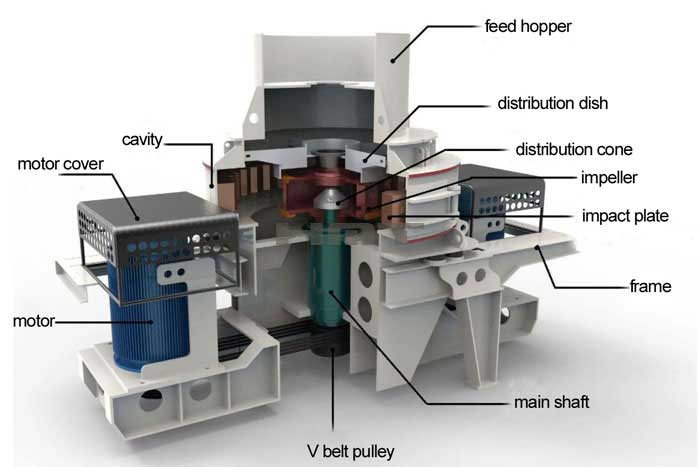

VI/VC vertical shaft impact crusher (also called as sand making machine) plays an important role in the field of artificial sand and stone shaping.
Mechanical sand production and stone shaping; Production of building aggregates, road fabrics, bedding materials, asphalt concrete and cement concrete aggregates; Materials crushing in building materials, metallurgy, chemical industry, mining, refractory materials, cement, abrasives and other industries.

Features

1. Patented rotor;

2. Super quality, high reliability;

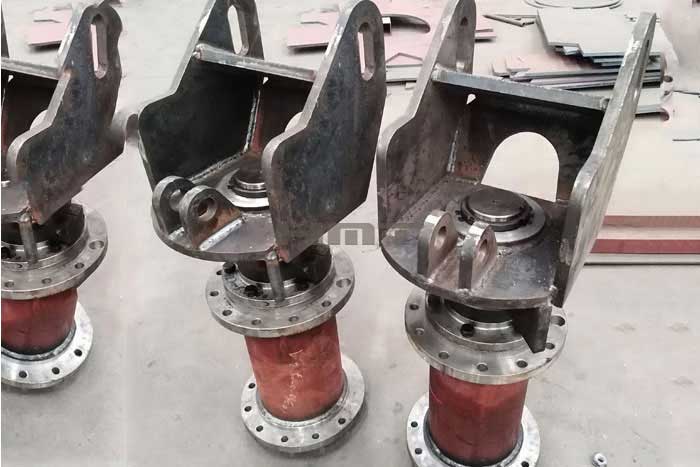

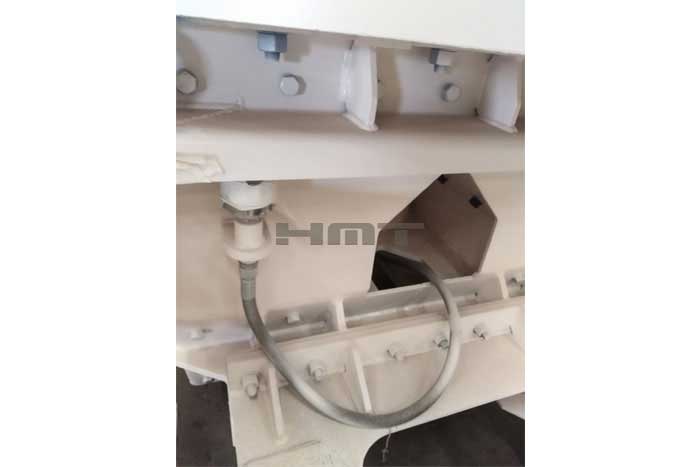

3. Rotor with thin oil lubrication;

4. Superior particle shape;

5. Perfect interchange between ROR and ROA;

PRODUCT DATA:

Model	Max Feed edge	Better Feed edge	Impeller Diameter	Linear Speed	Capacity	Motor Power	Lubrication Mode	Weight	Overall Dimension
Model	(mm)	(mm)	（mm）	（m/s）	(t/h)	(kw)	Lubrication Mode	(t)	(mm)
VI3000	≤45	5-30	650	50-80	30-60	55-90	Gease		3080×1757×2126
VI4000	≤55	5-35	750		50-90	110-150			4100×1930×2166

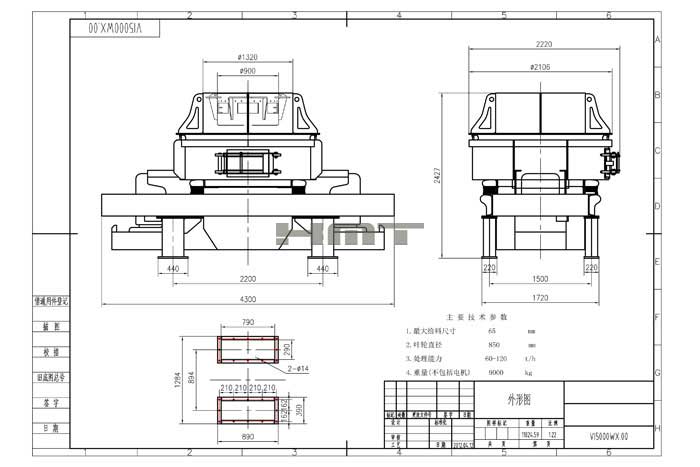

VI5000	≤55	5-40	850		80-150	150-220			4300×2215×2427
VI6000	≤65	5-40	1000		120-150	220-320			5300×2728×2773
VI7000	≤70	5-40	1100		180-350	264-400			5300×2728×2863
VI8000	≤80	5-55	1200		250-380	400-440			6000×3000×3420
VI8000II	≤80	5-60	1200	64-85	320-600	440-630			6000×3022×3425
VI9000	≤80	5-60	1200		320-750	440-630			6000×3022×3425
VC726	≤45	5月25日	650		60-255	110-160	Thin oil		3600×1969×2200
VC730	≤55	5-35	750		109-410	180-264			4600×2150×2482
VC733	≤60	5-40	850		165-585	264-400			5500×2563×3178
VC743	≤80	5-45	1080		230-685	400-500			5850×2740×3031

Note:
1. The above processing capacity is the data when the crushing material density is 1.6x103 kg/m3. Production capacity and crushing effect are affected by material performance, feed grading, feed particle size, rotor speed, mud content, water content and other working conditions.
2. under special conditions, please contact us.
