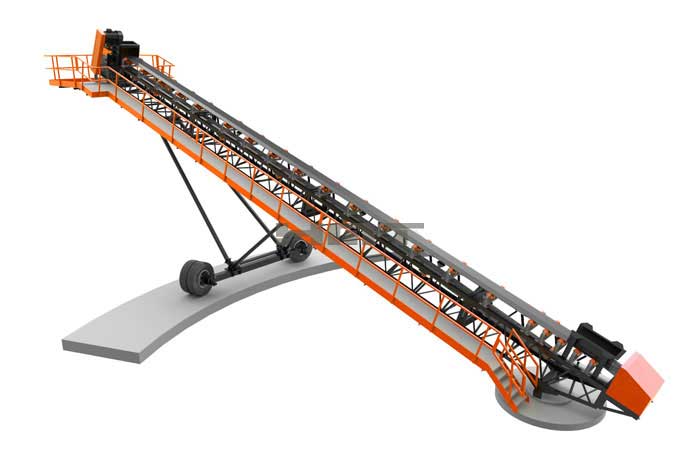

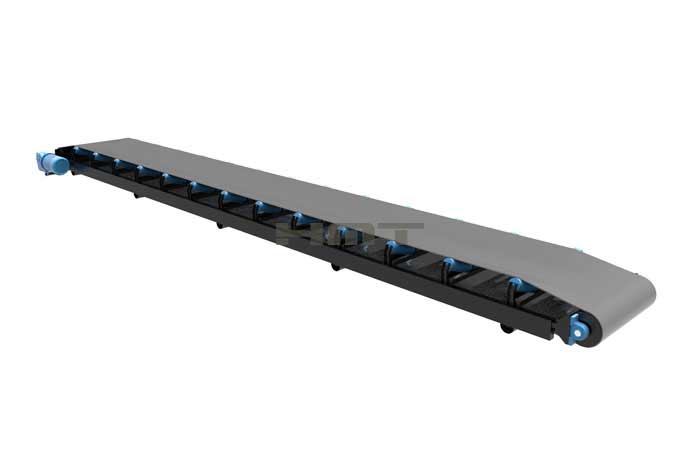

B BELT CONVEYOR

CAPACITY : 80-2000t/h

MAX FEEDING SIZE : 100-350mm

APPLICATION : Metallurgical, coal, mineral processing, building materials, chemical engineering, grinding, etc

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

River pebbles
Granite
Basalt
Diabase

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

Belt Conveyors, using friction transmission principle for moving, can be used for connecting different equipments of the plants.It realizes continuous and automated operation of the production line and improves the production efficiency and reduces labor intensity.

Features

1. A wide range of conveying materials: Conveying materials can range from very fine powder to large ores, stones, coal or pulp wood.

2. Wide range of conveying capacity: the conveying capacity of the belt conveyor can meet any required conveying task.

3. The adaptability of the conveyor line is strong: the belt conveyor can adapt to the terrain with a slope of 30% to 35%.

4. Flexible loading and unloading of materials: from one point or more points, you can also discharge to more points or several sections.

5. High reliability.

6. High safety: few production personnel are required, and there is less chance of accidents compared with other modes of transport.

7. Low cost: The belt conveyor system requires the lowest labor hours and energy consumption per ton of bulk materials.

PRODUCT DATA:

Model	Belt Length	Motor Power	Capacity	maximum block size	Installation Angle	Speed
Model	(m)	(kw)	（t/h）	（mm）	（°）	（m/s）
B500	≤12	3	80-190	≤100	0-20°	1.25-1.6
	12-20	5.5
	20-25	7.5
	25-30	11
B650	≤10	4	100-320	≤150	0-20°	1.25-1.85
	11-15	5.5
	16-20	7.5
	21-25	11
	26-30	15
B800	≤10	5.5	180-450	≤180	0-20°	1.6-2.1
	11-15	7.5
	16-20	11
	21-25	15
	26-30	18.5
B1000	≤10	7.5	250-650	≤250	0-20°	1.6-2.0
	11-15	11
	16-20	15
	21-25	18.5
	26-30	22
	31-35	30
	36-40	37
B1200	≤10	11	600-1200	≤350	0-20°	1.6-2.0
	11-15	15
	16-20	18.5
	21-25	22
	26-30	30
	31-35	37
	36-40	45
B1400	≤10	15	700-1600	≤350	0-20°	1.6-2.0
	11-15	18.5
	16-20	22
	21-25	30
	26-30	37
	31-35	45
	36-40	55
B1600	≤10	15	800-2000	≤350	0-20°	1.6-3.15
	11-15	18.5
	16-20	22
	21-25	30
	26-30	37
	31-35	45
	36-40	55

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
