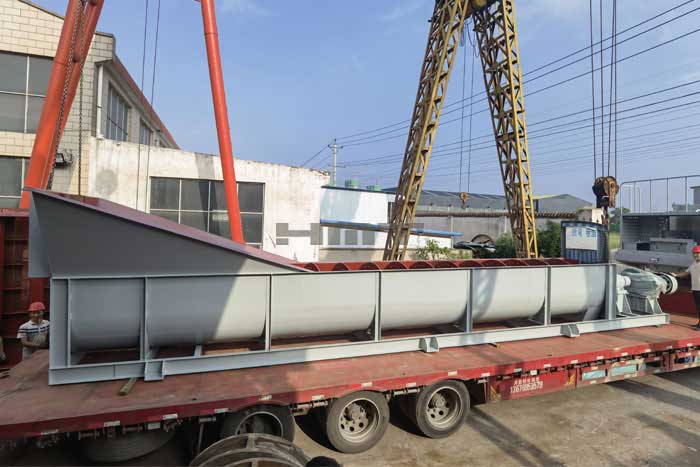

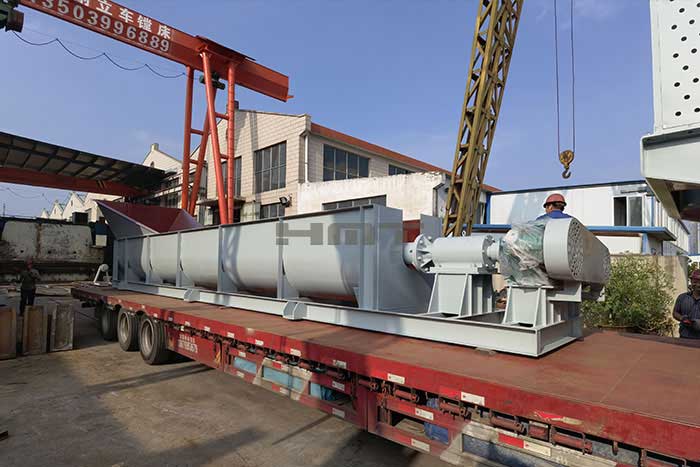

LX Screw Sand Washer

CAPACITY : 20-450t/h

MAX FEEDING SIZE : 10mm

APPLICATION : Wash, classify, rid impurities, and coarse from the fine in the industries of highway, hydropower, construction.

RAW MATERIALS :Between fine-grained and coarse-grained materials

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

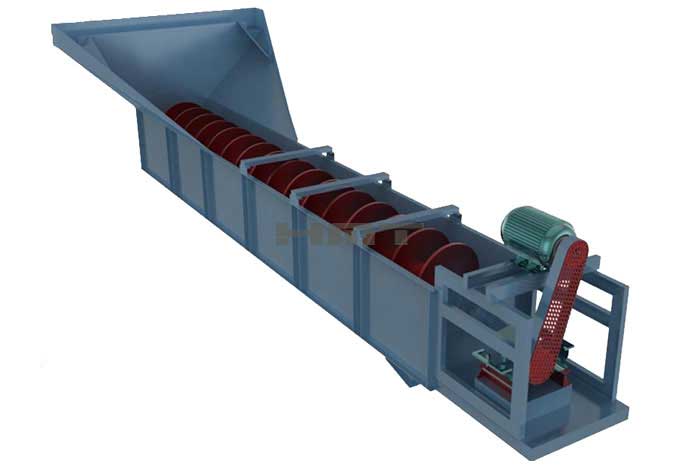

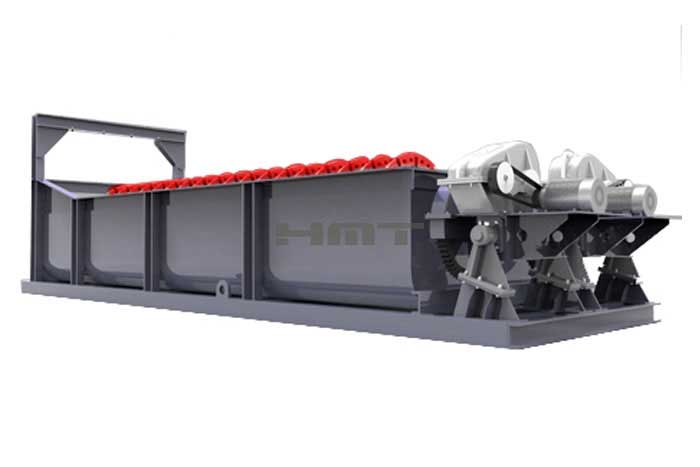

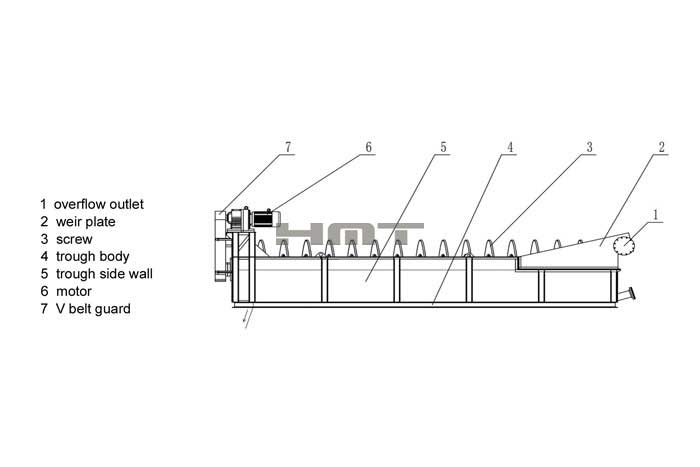

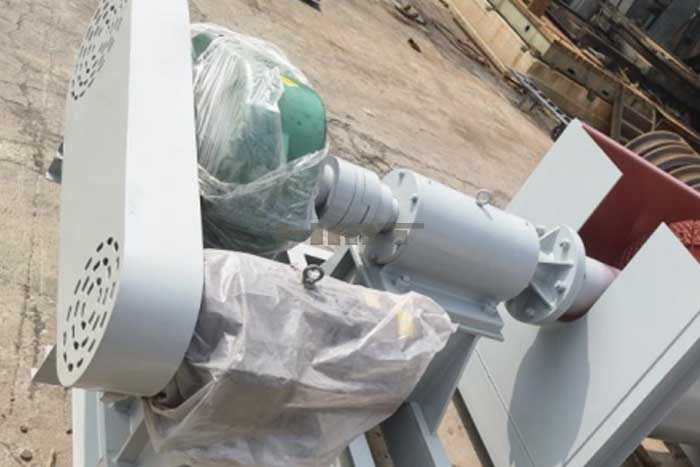

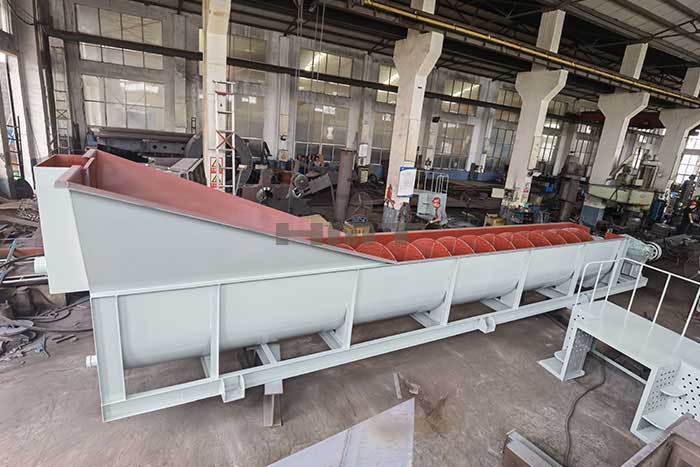

LX Screw Sand Washer can wash and separate soil and foreign materials in sand. Its novel structure, adjustable overflow baffle and reliable arrangement can ensure washing effect. XL series sand washer is widely used to wash, classify, and rid impurities in highway, hydropower, construction and other industries. It is better to wash construction and road sandstone.

Features

1 reasonable structure

2 convenient maintenance

3 High output

4 low power consumption

5 high cleanness degree

PRODUCT DATA:

Model	Screw Diameter	Screw Qty	Max Feed Size	Tank Length	Screw Rotate Speed	Used Wster	Capacity	Motor Power
Model	（mm）	(pcs)	（mm）	（mm）	（r/min）	（t/h）	（t/h）	(kw)
LX508	508	1	10mm	6705	38	6-50	20	5.5
LX650	650	1		7225	32	10-50	40-50	7.5
LX800	800	1		7620	26	10-60	70-80	11
LX920	920	1		8000	21	10-90	100	15
LX1200	1200	1		8500	17	20-160	150-200	15-18.5
LX1500	1500	1		9800	17	60-220	200-250	22
2LX800	800	2		7620	26	10-120	150	2×11
2LX920	920	2		8000	21	20-160	150-200	2×15
2LX1200	1200	2		8500	17	40-300	350	2×18.5
2LX1500	1500	2		9800	17	50-400	450	2×22

Note:
According to the nature of the material, the feeding method is different, the processing capacity will be changed;
