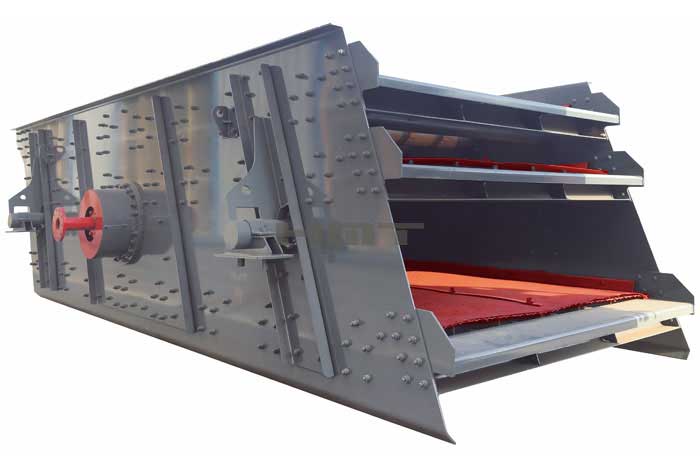

YK Vibrating Screen (grease lubricated, stable)

CAPACITY : 20-1600t/h

MAX FEEDING SIZE : 200mm

APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

RAW MATERIALS :River stone, gravel, granite, basalt, minerals, quartz, diabase, etc.

iron ore
copper ore
artificial sand
limestone

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

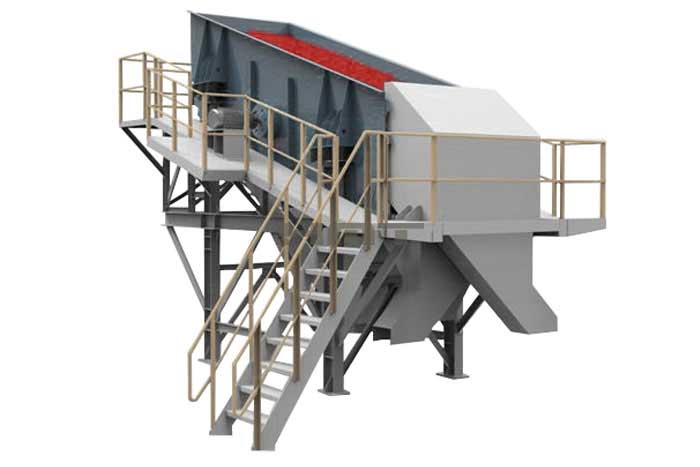

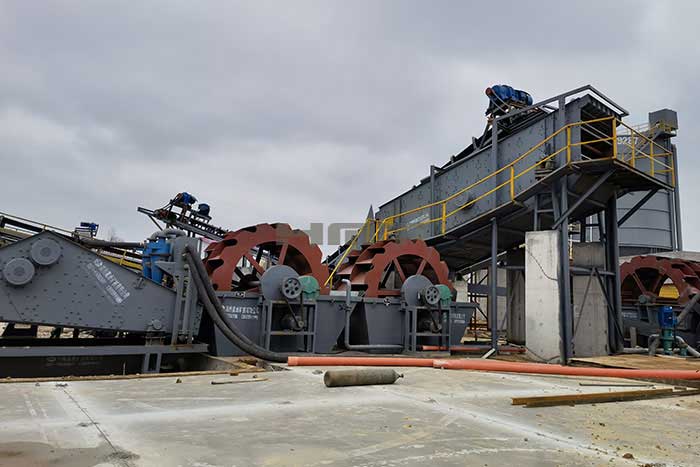

YK (R) series circular vibrating screen's movement trajectory is approximately circular, widely used in road, railway, construction sand aggregate industry of medium and fine screening operations, its inclined circular vibrating screen, single, two, three and four layers of different configurations. YK (R) screen is suitable for the final grading and screening of finished sand aggregate.

Features

1. Strong adaptability to materials, continuous production, large production capacity, can meet the requirements of large-scale industrial production;

2. The crushing ratio is large, up to more than 300, and it is easy to adjust the fineness of the grinding product;

3. Suitable for dry and wet operation;

4. Simple structure, solid, reliable operation, simple maintenance and management, high operating rate;

5. Strong sealing, can be negative pressure operation.

PRODUCT DATA:

Model	Mesh				Installation Angle	Vibration Frequency	Double Amplitude	Capacity	Motor Power
	Mesh Layer (layer)	Mesh Size WxL （mm）	Area (m2)	aperture (mm)	(°)	（r/min）	（mm）	（t/h）	(kw)
YK1235	1	1200×3500	4.2	2-70	15	970	6-10	20-180	5.5
2YK1235	2								5.5
3YK1235	3								7.5
4YK1235	4								11
YK1545	1	1500×4500	6.75	2-70	17.5	970		35-240	11
2YK1545	2								15
3YK1545	3								15
4YK1545	4								18.5
YK1548	1	1500×4800	7.2	2-70	17.5	970		50-270	11
2YK1548	2								15
3YK1548	3								15
4YK1548	4								18.5
YK1845	1	1800×4500	8.1	2-70	20	970		80-350	11
2YK1845	2								15
3YK1845	3								18.5
4YK1845	4								22
YK1860	1	1800×6000	10.8	2-70	20	970		140-450	15
2YK1860	2								18.5
3YK1860	3								18.5
4YK1860	4								22
YK2160	1	2100×6000	12.6	2-70	20	840		150-600	18.5
2YK2160	2								22
3YK2160	3								30
4YK2160	4								30
YK2460	1	2400×6000	14.4	2-70	20	840		160-700	22
2YK2460	2								30
3YK2460	3								30
4YK2460	4								37
YK2470	1	2400×7000	16.8	2-100	20	970		160-800	22
2YK2470	2								37
3YK2470	3								37
4YK2470	4								45
YK2475	1	2400×7500	18	2-100	20	970		160-860	30
2YK2475	2					840			37
3YK2475	3								37
4YK2475	4								45
2YK2575	2	2500X7500	18.75	2-100	20	840			37
3YK2575	3							170-880	45
4YK2575	4								45
2YK2775	2	2700×7500	20.25	2-100	20	970		180-900	37
3YK2775	3								45
YK3060	1	3000×6000	18	2-150	20	840		200-900	30
2YK3060	2								37
3YK3060	3								45
4YKR3060	4								2×37
YK3075	1	3000×7500	22.5	2-150	20	840		200-1080	37
2YK3075	2								45
2YKR3075	2								2×37
3YKR3075	3								2×37
4YKR3075	4								2×37
2YKR3675	2	3600×7500	27	2-150	20	800	7-12	220-1620	2×37
3YKR3675	3								2×45

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
