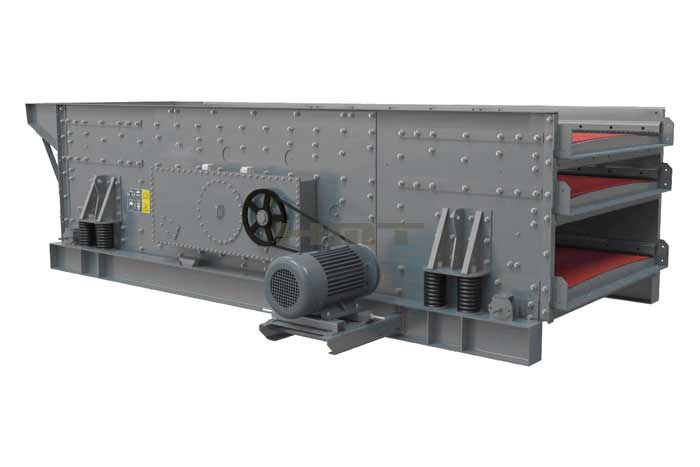

TKS 3-shaft Horizontal Vibrating Screen

CAPACITY : 120-750t/h

MAX FEEDING SIZE : 150mm

APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

RAW MATERIALS :River stone, gravel, granite, basalt, minerals, quartz, diabase, etc.

iron ore
copper ore
artificial sand
limestone

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

TKS series three-axis elliptical horizontal screen due to horizontal installation, occupy a small site space, and widely used in metallurgy, building materials, transportation and other industries, is also a very ideal equipment on the mobile screening station.

Features

1. Large processing capacity, screening efficiency up to 95%, the same screening area, efficiency increased by 1.6 to 3 times.

2. More advantages for screening materials, smooth movement, low power consumption.

3. Easy to adjust, simple, smooth screening, not easy to block holes.

4. Long life and high stability.

5. Multi-layer frame selection, bearing oil lubrication, better protection of bearings, longer service life.

6. Horizontal installation, low center of gravity, effectively reduce the height of the unit, compact structure, save installation space

7. Suitable for dry, wet material and all kinds of complex and harsh working conditions.

PRODUCT DATA:

Model	Mesh Layer	Mesh Size WxL	Mesh Area	Max Feed Size	Double Amplitude	vibration frequency	Capacity	Motor Power	Weight
Model	(layer)	（mm）	（m2）	（mm）	(mm)	(r/min)	（t/h）	(kw)	(t)
2TKS1852	2	1800×5200	9.45	150	14-18	645-875	120-250	22	7.6
3TKS1852	3	1800×5200	9.45		14-18		120-250	30	8.7
2TKS1860	2	1800×6000	10.8		14-18		160-400	37	9.2
3TKS1860	3	1800×6000	10.8		14-18		160-400	37	11.2
2TKS2160	2	2100×6000	12.6		14-18		200-500	37	10.5
3TKS2160	3	2100×6000	12.6		14-18		200-500	37	12.3
2TKS2460	2	2400×6000	14.4		14-18		300-700	45	13.2
3TKS2460	3	2400×6000	14.4		14-18		350-750	45	15.1

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
