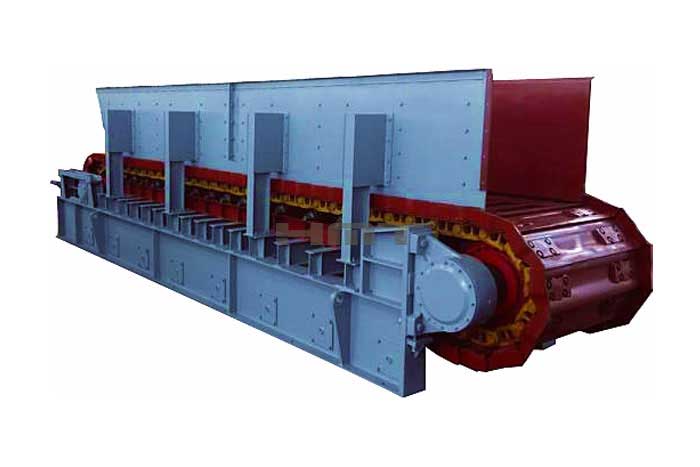

BW Apron Feeder

CAPACITY : 80-1900t/h

MAX FEEDING SIZE : 500-1500mm

APPLICATION : Metallurgical, coal, mineral processing, building materials, chemical engineering, grinding, etc

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

River pebbles
Granite
Basalt
Diabase

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

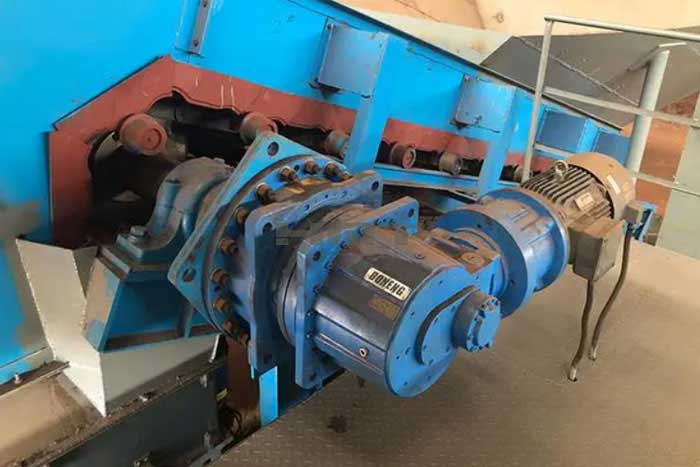

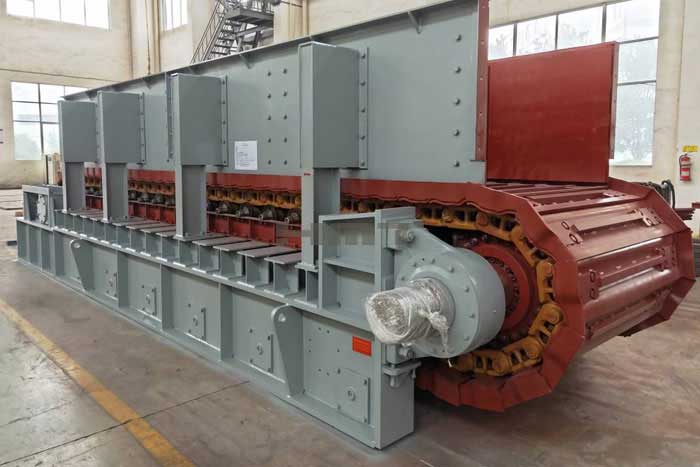

BW Apron Feeder is suitable for conveying granular materials, but also suitable for conveying pieces, suitable for metallurgy, chemical industry, building materials, mining, electric power, machinery manufacturing and other industries, can transport horizontal or inclined direction of materials. According to the production capacity can be divided into: light plate feeder, medium plate feeder, heavy plate feeder three. Among them, the heavy plate feeder can transport larger particle size materials, the material width is generally not more than 60% of the plate width, and the conveying plate width is generally 1250mm~3150mm; The weight of the conveying material block of the light and medium-sized plate feeder is not more than 140kg, the packing density per cubic meter is not more than 1200kg, and the width of the conveying plate is generally 500mm~1250mm.

Features

1. Wide range of use. In addition to substances with high viscosity, solid materials can be transported by it;

2. High conveying efficiency. General conveyor can transport a variety of materials at the same time, greatly saving the cost and time of manual transportation;

3. Strong traction ability. Can maintain the stability of long-distance transportation;

4. Flexible transport routes. Compared with crawler transport aircraft, it can transport the bending radius is relatively large, tilt Angle can reach more than 60°;

5. In the process of plate moving, materials can be classified, dried, sorted and other processes, saving time;

6. Smooth operation.

PRODUCT DATA:

Model	Funnel Width	Max Feed Edge	Center Distance Between Head and Tail Drums	Capacity	Motor Power
Model	（mm）	(mm)	Center Distance Between Head and Tail Drums	(t/h)	(kw)
BW1000	1000	500	The Length Can Be Customized According To Clients' Requirements.	80-160	11-15
BW1200	1200	600		100-200	11-30
BW1250	1250	650		100-250	11-18.5
BW1400	1400	700		120-290	15-22
BW1500	1500	700		280-460	15-45
BW1600	1600	800		300-600	22-30
BW1800	1800	800		500-900	37-45
BW2200	2200	1200		600-1400	45
BW2300	2300	1300		800-1600	55
BW2400	2400	1500		1000-1900	75

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
