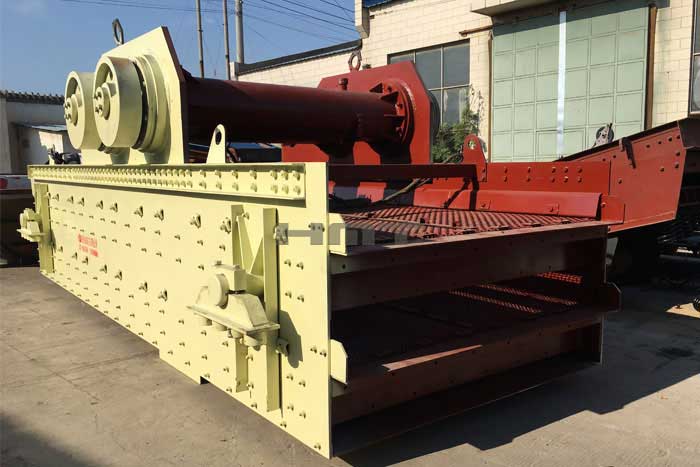

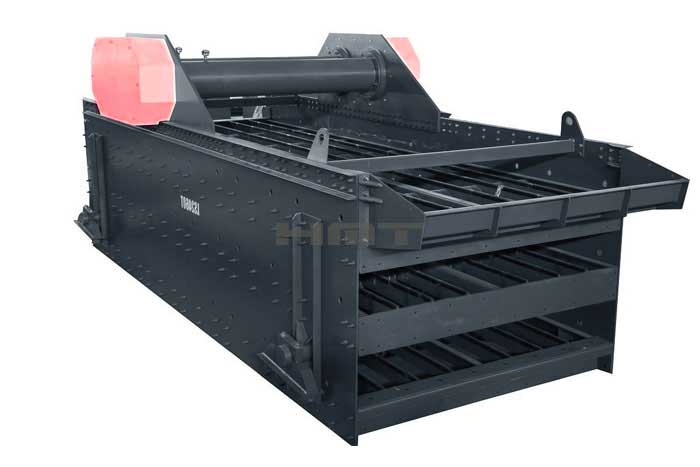

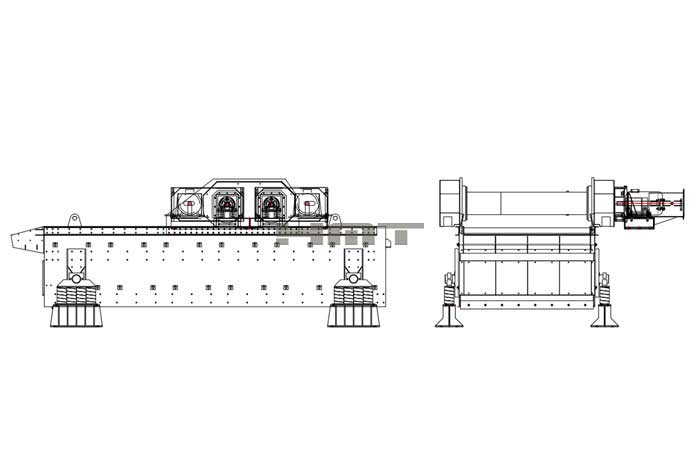

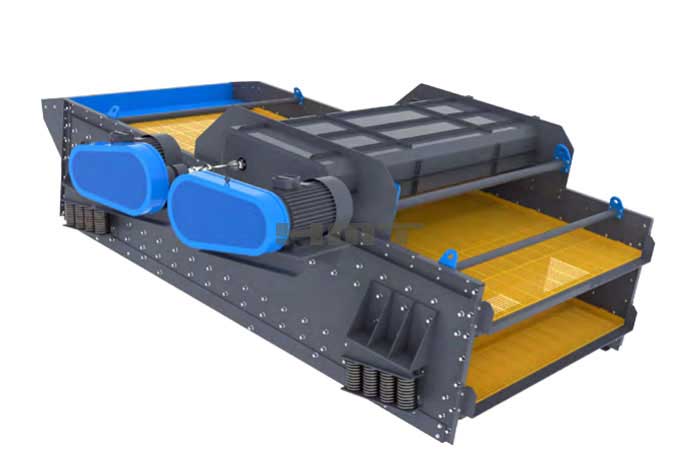

LS 2-Shaft Horizontal Vibrating Screen

CAPACITY : 150-1200t/h

MAX FEEDING SIZE : 200mm

APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

RAW MATERIALS :River stone, gravel, granite, basalt, minerals, quartz, diabase, etc.

iron ore
copper ore
artificial sand
limestone

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

LS series double thin oil linear screen, can be installed horizontally, can also be installed at an Angle, the motion track is oval, between straight and circular, taking into account the linear vibration track G screening efficiency and circular vibration track D processing capacity characteristics, its screening efficiency is more than 50% higher than YK series circular vibrating screen. Suitable for screening in quarry, mineral processing, coal preparation, building materials, electric power and chemical industries.

Features

1. compact shape design, heavy structure, horizontal or low Angle installation (0~12° adjustable), to meet different processing capacity and screening requirements.

2. modular design, frame using anti-cracking HUCK bolt fastening, all welding using anti-cracking welding process, welds are treated by special process.

3. feed end rubber protection design, effectively protect and extend the service life of the screen.

4. The whole steel structure of the screening machine is heat treated to completely eliminate welding stress.

PRODUCT DATA:

Model	Mesh Size WxL	Mesh Area	Mesh Layer	Installation Angle	Lubrication Mode
	（mm）	（m2）	(layer)	(°)
LS1860	1820×6000	10.8	2	0-12°	Oil bath type thin oil lubrication
			3	240-500	2×18.5
LS2160	2120×6000	12.6	2	350-550	2×18.5
			3	400-650	2×22
LS2460	2420×6000	14.4	2	450-700	2×22
			3	500-750	2×30
LS2470	2420×7000	16.8	2	460-750	2×30
			3	500-800	2×30
LS3060	3020×6000	18	2	600-800	2×30
			3	650-1000	2×37
LS3070	3020×7000	21	2	700-1000	2×37
			3	750-1200	2×45

Note:
1. The above processing capacity in the table is the parameter of the square hole screen.
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
