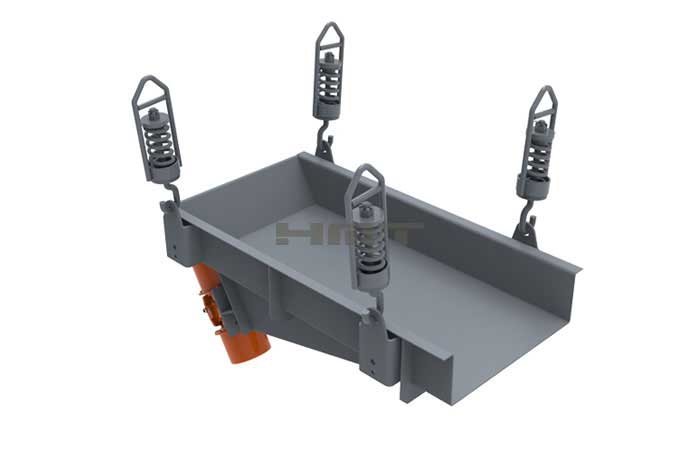

GZG Hopper Vibrating Feeder

CAPACITY : 30-1400t/h

MAX FEEDING SIZE : 100-500mm

APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

River pebbles
Diabase
Granite
Basalt

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

GZG vibrating feeder is widely used in mining, metallurgy, coal, building materials, machinery, food and other industries, used to block, granular and powdered materials from the storage bin or funnel uniformly continuous or quantitative to the receiving device or belt conveyor. For example, feed to crushing, coal preparation, screening, transportation, packaging machinery, etc.
GZG series feeder is a common trough type, used for material feeding without special requirements.

GZG series feeder is a closed trough feeder, which is used for feeding large dust and volatile materials.

Features

1. convenient operation;

2. low noise;

3. less consumption;

4. excellent regulation performance;

5. no flow phenomenon;

PRODUCT DATA:

Model	Funnel Size LxW	Double Amplitude	Max Feed edge	Vibration Frequency	Capacity (t/h)		Motor Power	Weight	Overall Dimension
Model	（mm）	（mm）	(mm)	(r/min)	Level	-10°	(kw)	(t)	(mm)
GZG40-4	400×1000×200	4	100	1450	30	40	2×0.25	171	1337×750×600
GZG50-4	500×1000×200	4	150	1450	60	85	2×0.25	202	1374×800×630
GZG63-4	630×1250×250	4	200	1450	110	150	2×0.50	379	1648×1000×767
GZG70-4	700×1290×250	4	200	1450	120	170	2×0.50	389	1548×1010×787
GZG80-4	800×1500×250	4	250	1450	160	230	2×0.75	563	1910×1188×850
GZG90-4	900×1483×250	4	250	1450	180	250	2×0.75	613	2003×1178×960
GZG100-4	1000×1750×250	4	300	1450	270	380	2×1.1	762	2190×1362×900
GZG110-4	1100×1673×250	4	300	1450	300	420	2×1.1	854	2151×1362×970
GZG125-4	1250×2000×315	4	350	1450	460	650	2×1.5	1099	2540×1500×1030
GZG130-4	1300×2040×300	4	350	1450	480	670	2×1.5	1117	2544×1556×1084
GZG150-6	1500×1800×400	4-7	350	975	520	750	2×3	1441	2250×1864×1412
GZG160-4	1600×2500×315	4	500	1450	770	1100	2×2.25	1555	3050×1850×1110
GZG180-4	1800×2325×375	3	500	1450	900	1200	2×2.25	2350	2885×2210×1260
GZG200-4	2000×3000×400	2.5	500	1450	1000	1400	2×2.25	2705	3490×2400×1220

Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
