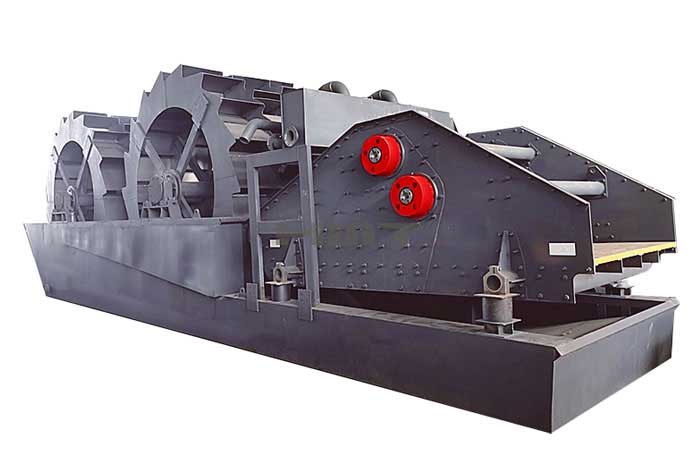

MZ Modularized Screen Washer

CAPACITY : 50-300t/h

MAX FEEDING SIZE : 10mm

APPLICATION : Aggregate processing system, production line of manufactured sand

RAW MATERIALS :Sand and gravel

Chat Online Get Price List
online customer service

60s online
customer service

customize solutions

2 days customize
solutions

Factory visiting

Factory
visiting anytime

dispatch the goods

1-10 days dispatch
the goods

installation

One week
of installation

training

2 days of
training

after-sales online

365 days
after-sales online

Project tracking regularly

Project tracking
regularly

provide maintenance plan

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation.    Tip2: Free airport transfer and hotel accommodation.


Introduce

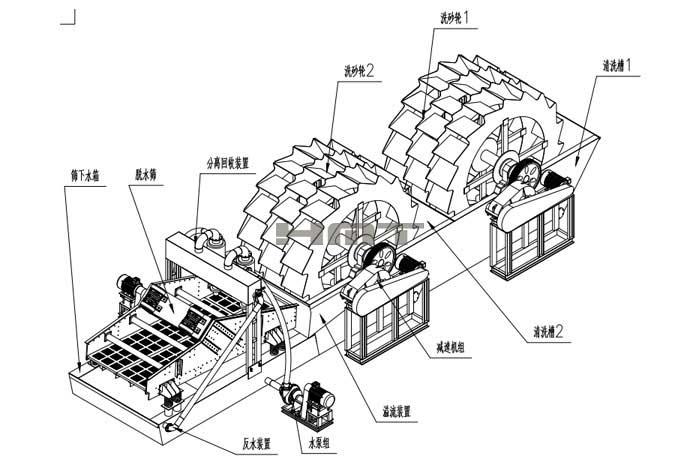

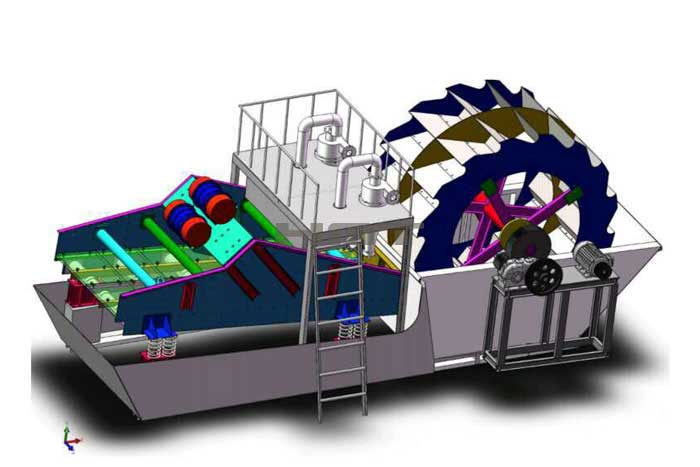

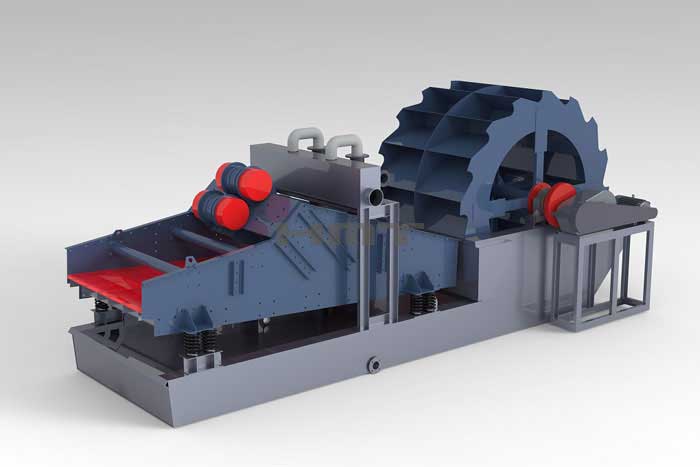

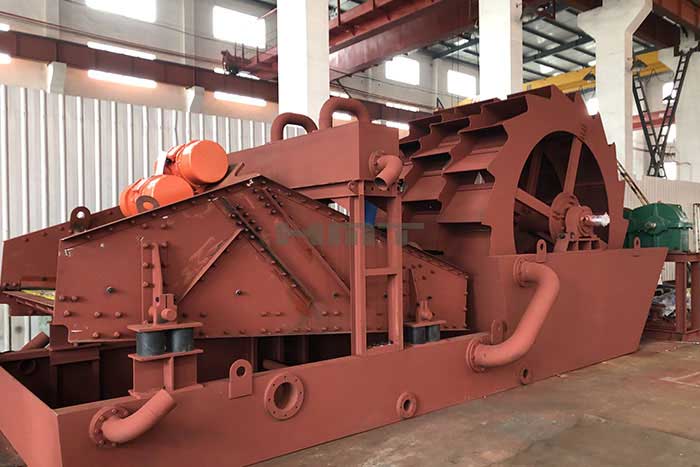

MZ Modularized Screen Washer integrates washing sand and fine sand dehydration and recycling, so it is also called sand washing and recycling connected machine, fine sand recycling and dehydration machine, sand washing and separation equipment. The machine cleverly connects the fine sand recovery machine with the sand washing machine, has reasonable structure, small footprint, and lower investment cost than the price of two equipment. Sand washing and recovery machine is mainly divided into sand washing part and fine sand recovery part; The sand washing part has the same function as the general wheel sand washing machine, which is divided into single wheel sand washing and double wheel sand washing. It is mainly used for washing sand, dewatering and desliming. The recovery part can be combined according to the needs of customers, if you need fine sand recovery, you can connect the general fine sand recovery system, if you need fine sand dehydration recovery, you can connect the dehydrated fine sand recovery machine, if you need different sand production effects, you can also configure multi-layer dewatering screen.


Features

1. Reasonable structure and convenient maintenance;

2. High processing capacity and low power consumption;

3. Durable vulnerable parts and low cost;

PRODUCT DATA: Motor Power
ModelImpeller DiameterMesh SizeCyclone Spec.Used WaterOutput SizeSand CapacityMotor Power
(mm)(mm)(m3/h)(mm)(t/h)(kw)
MZ26-35-122426001200×2400FX350≤100≤1050-8028.4
MZ28-55-153028001500×3000FX250×2≤12080-10033.5
MZ30-55-153030001500×3000FX250×2≤12080-10039
MZ30-65-153030001500×3000FX300×2≤15080-12047
MZ30-75-184030001800×4000FX350×2≤200100-15063
2MZ30-75-184030001800×4000FX350×2≤200100-15074
MZ30-75-184530001800×4500FX350×2≤200110-15059
2MZ30-75-184530001800×4500FX350×2≤200110-15082
MZ30-100-184830001800×4800FX250×4≤240120-16067
2MZ30-100-184830001800×4800FX250×4≤240120-16082
MZ32-75-204532002000×4500FX350×2≤220120-18070.5
2MZ32-75-204532002000×4500FX350×2≤220120-18089
MZ32-100-244532002400×4500FX250×4≤240130-20082
2MZ32-100-244532002400×4500FX250×4≤240130-200104
MZ36-110-204536002000×4500FX350×3≤240130-18081
MZ36-120-244536002400×4500FX300×4≤300150-25089
MZ36-150-246036002400×6000FX350×4≤300180-300112

Note:
According to the nature of the material, the feeding method is different, the processing capacity will be changed;
