CAPACITY : 20-850t/h
MAX FEEDING SIZE : Mesh Size × 2.5
APPLICATION : Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
RAW MATERIALS :River stone, gravel, granite, basalt, minerals, quartz, diabase, etc.
iron ore
copper ore
artificial sand
limestone
60s online
customer service
2 days customize
solutions
Factory
visiting anytime
1-10 days dispatch
the goods
One week
of installation
2 days of
training
365 days
after-sales online
Project tracking
regularly
2 days provide
maintenance plan
Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

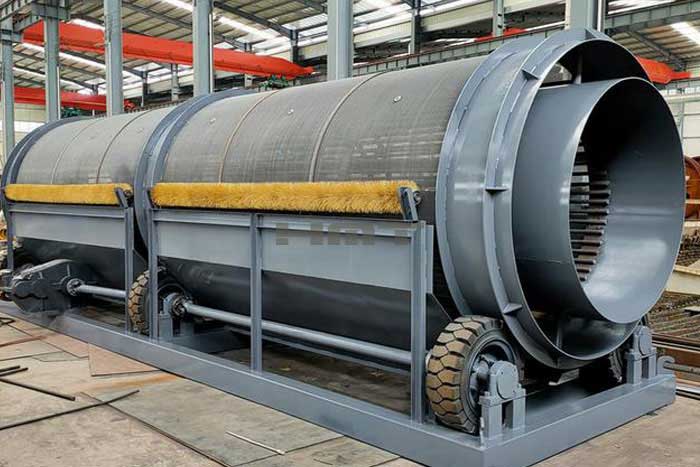

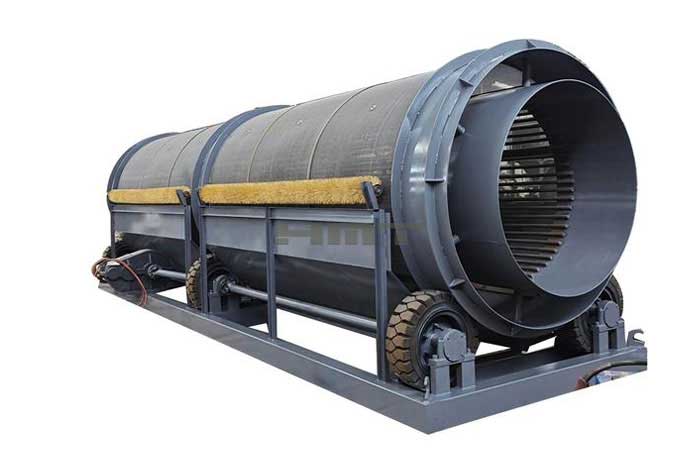

GTS trommel screen is an economical and practical, cost-effective, high efficiency screening equipment developed by our company with Japanese technology combined with domestic working conditions. Because of the simple process layout, it is widely used in cement, new building materials, refractory materials, glass ceramics, transportation, energy, chemical and other industries.
It is commonly used in grading and screening of medium and fine grained materials to improve the quality of materials. According to the structural form.

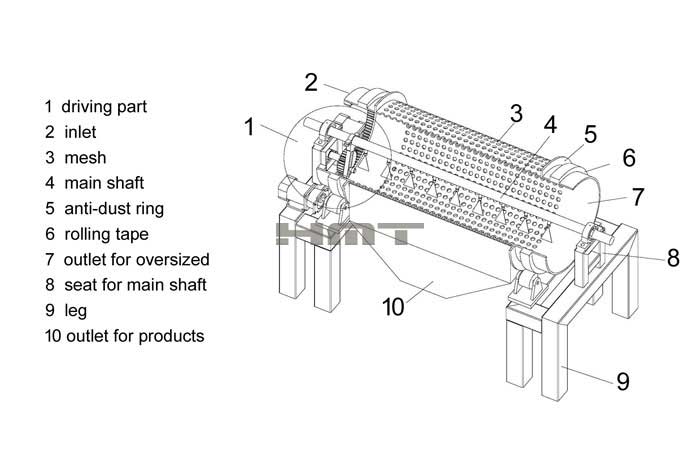

There are two kinds of shaft drum screen and shafeless drum screen.
Shaft drum screen is often used to screen stone, mechanical sand, weathered sand and other materials.

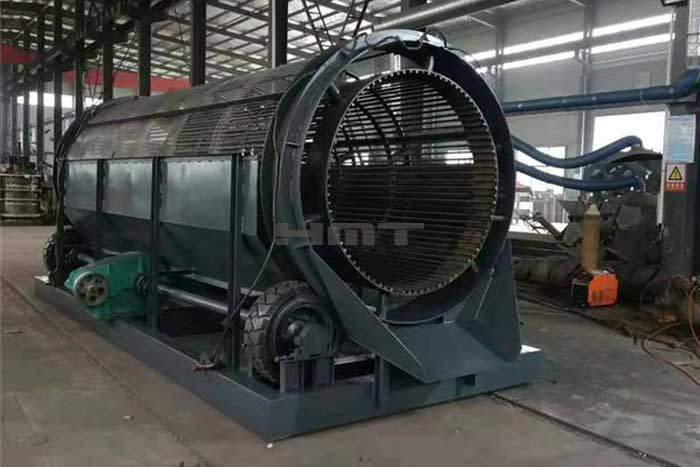

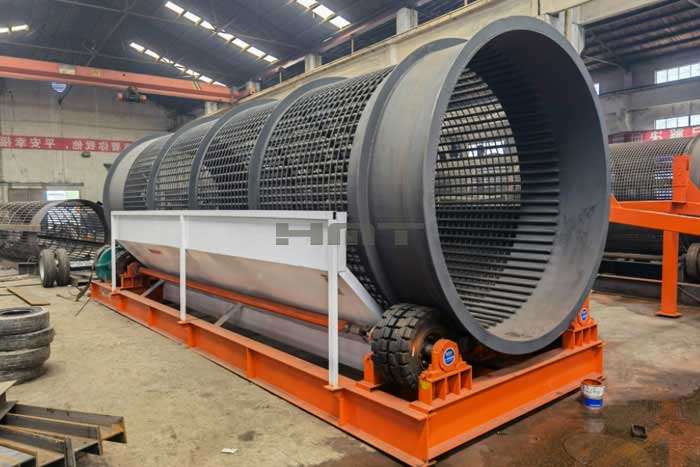

Shafeless drum screen be used for sand and stone screening, but also used to screen various types of building solid waste (building decoration waste, household waste sorting) and wet easily blocked materials screening
1. Simple structure, smooth operation, no vibration, good mute effect.
2. Large processing capacity, strong sorting ability, small installation inclination, screen is not easy to be plugged, accurate particle size sorting.

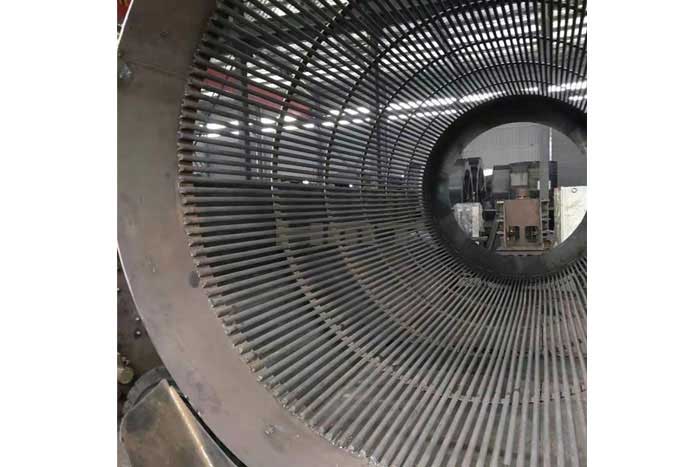

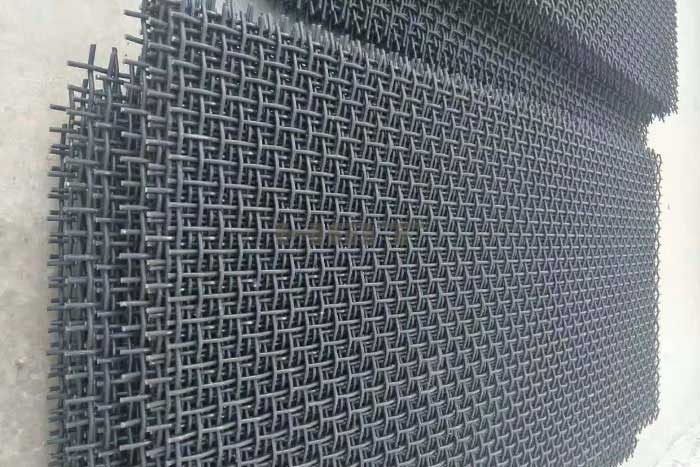

3. The mesh is fixed by layering, and the replacement of the mesh is simple.
4. screen for solid waste screening is equipped with bag-breaking props, reliable bag-breaking and no winding.
| Model | Dia. of Drum | Length of Drum | Installation Angle | Mesh Size | Max Feed edge | Rotate Speed | Capacity | Motor Power |
| （mm） | （mm） | （°） | （mm） | （mm） | （r/min） | （t/h） | (kw) | |
| GTS1545 | 1500 | 4500 | 6-10° | 2-30mm | Mesh Size × 2.5 | 17 | 20-150 | 7.5 |
| GTS1550 | 1500 | 5000 | 17 | 25-160 | 11 | |||
| GTS1560 | 1500 | 6000 | 17 | 25-180 | 11 | |||
| GTS1860 | 1800 | 6000 | 14 | 35-250 | 15 | |||
| GTS1870 | 1800 | 7000 | 14 | 55-350 | 18.5 | |||
| GTS2050 | 2000 | 5000 | 12 | 70-500 | 22 | |||
| GTS2070 | 2000 | 7000 | 12 | 80-580 | 22 | |||
| GTS2170 | 2100 | 7000 | 10 | 100-650 | 22 | |||
| GTS2260 | 2200 | 6000 | 10 | 100-700 | 30 | |||
| GTS2280 | 2200 | 8000 | 10 | 130-850 | 30 |
Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
