GZT Vibration-Motor Vibrating Feeder

CAPACITY : 30-600t/h

MAX FEEDING SIZE : 450-1000mm

APPLICATION : Metallurgical, coal, mineral processing, building materials, chemical engineering, grinding, etc

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

River pebbles
Granite
Basalt
Diabase

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

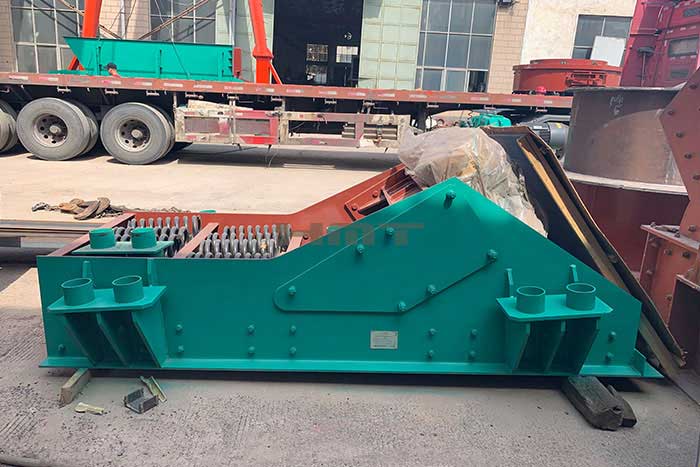

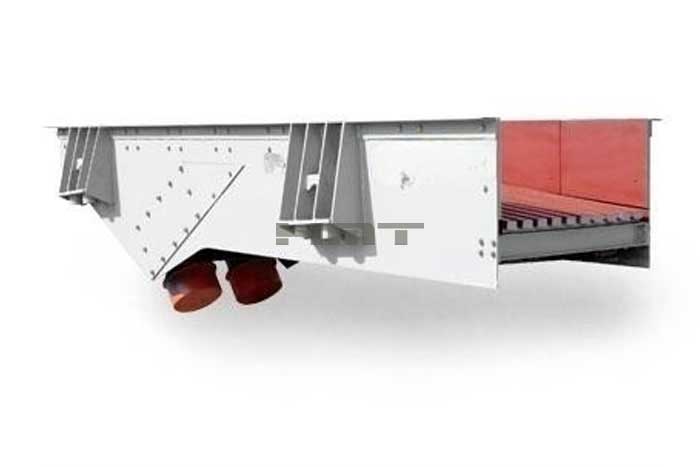

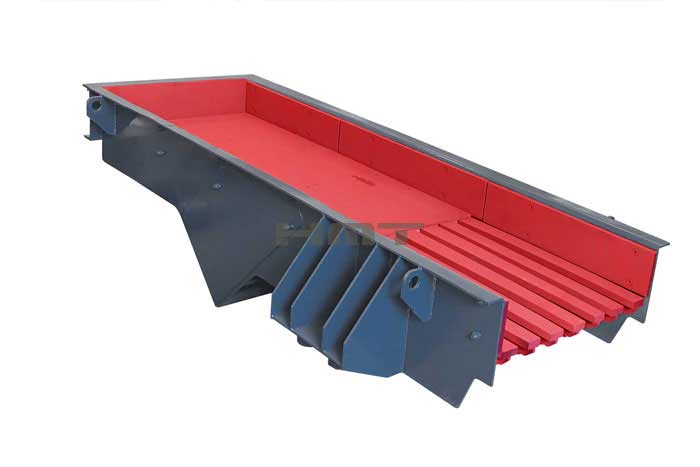

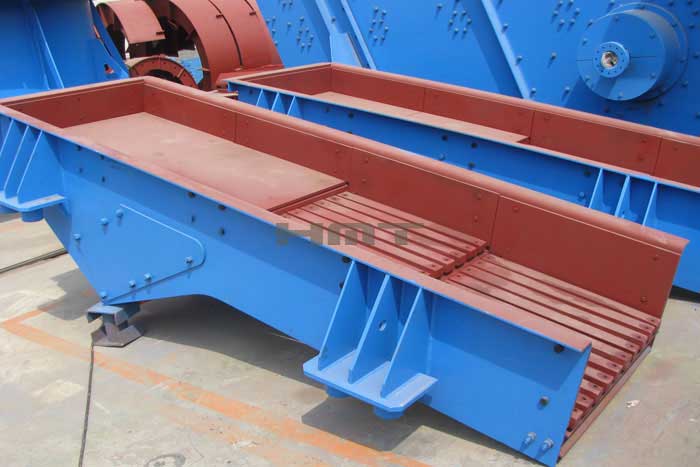

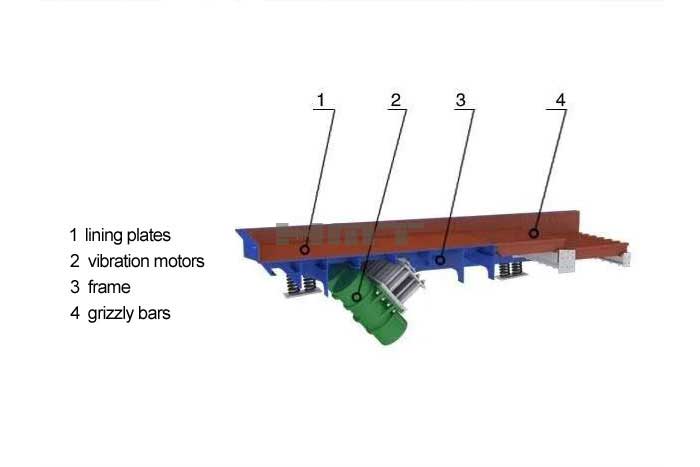

GZT Vibration-Motor Vibrating Feeder uses vibrating motor to produce vibration force. It is used to feed materials into primary crusher homogeneously. Because of the bar-shaped screen, it can increase primary crushing capacity through filtering out filter out soil contained in raw materials. It is widely used in hydropower, building material and mining industries.

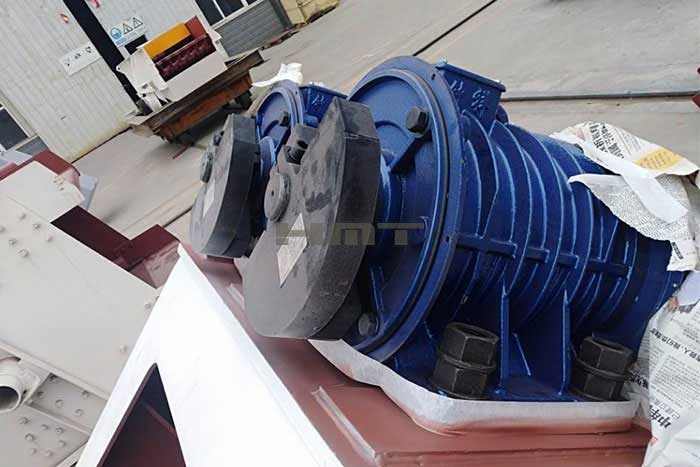

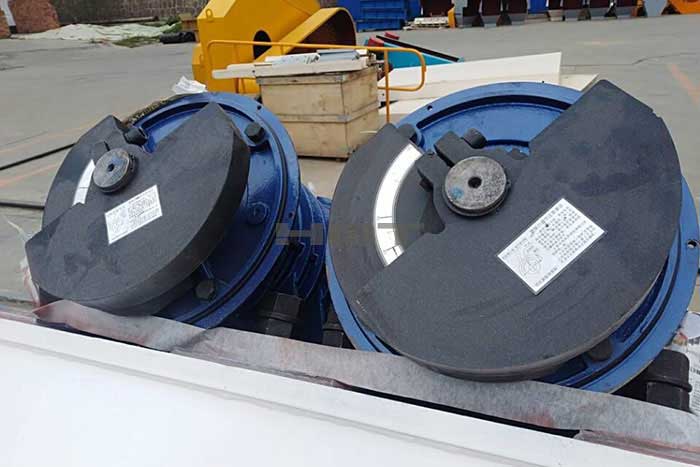

GZT grizzly vibration feeder adopts vibration motor as excitation source. Divided into grizzly type and blind plate type.

Features

1. Simple structure, reliable operation, and convenient installation.

2. This series have many models. It can be specially designed and manufactured according to customers' requirements.

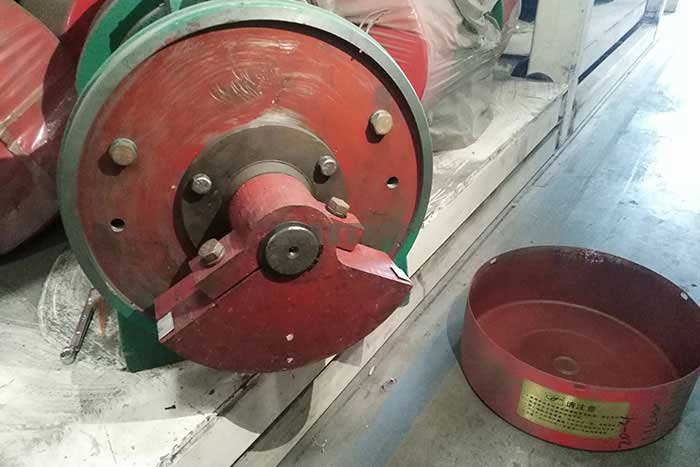

3. Vibrating motor has the characteristics of low noise, low electricity consumption, and excellent adjustability.

PRODUCT DATA:

Model	Funnel Size LxW	Max Feed Edge	Double Amplitude	Installation Angle	Capacity	Motor Power	Overall Dimension
Model	（mm）	(mm)	（mm）	（°）	(t/h)	(kw)	(mm)
GZT0724	700×2400	≤450	4-6	5°	30-80	2×1.5	2480×1128×1035
GZT2575	750×2500	≤450			40-100	2×1.5	2518×1121×741
GZT0830	800×3000	≤450			50-120	2×2.2	3110×1370×1370
GZT0925	900×2500	≤500			60-150	2×2.2	2698×1492×950
GZT0932	900×3200	≤560	4-8		80-150	2×3	3298×1512×1140
GZT1037	1000×3700	≤600			100-180	2×3.7	3980×1878×866
GZT1148	1100×4800	≤600			150-300	2×5.5	4926×1676×1479
GZT1256	1200×5600	≤750			180-400	2×12	5703×1838×1705
GZT1560	1500×6000	≤1000			400-600	2×15	6125×2206×1586

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
