NE BUCKET ELEVATOR

CAPACITY : 15-800m3/h

MAX FEEDING SIZE : 25-270mm

APPLICATION : Metallurgical, coal, mineral processing, building materials, chemical engineering, grinding, etc

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

River pebbles
Granite
Basalt
Diabase

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

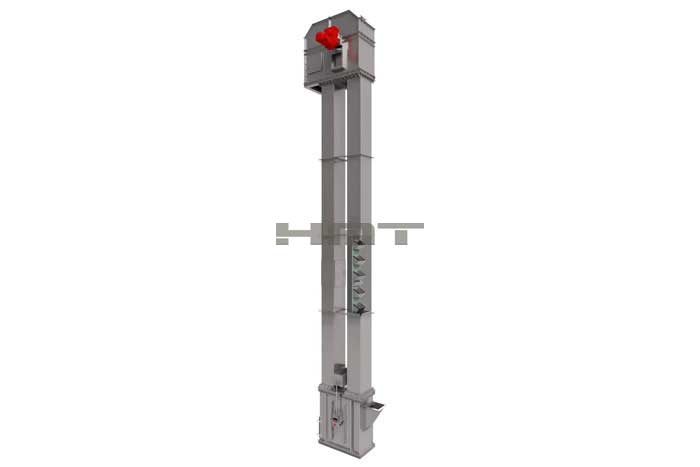

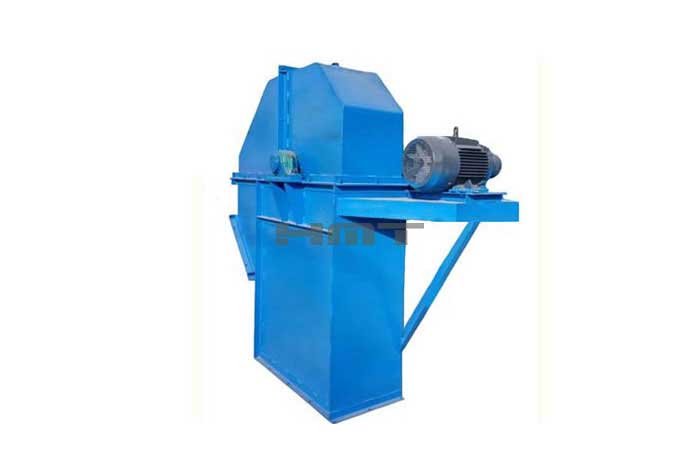

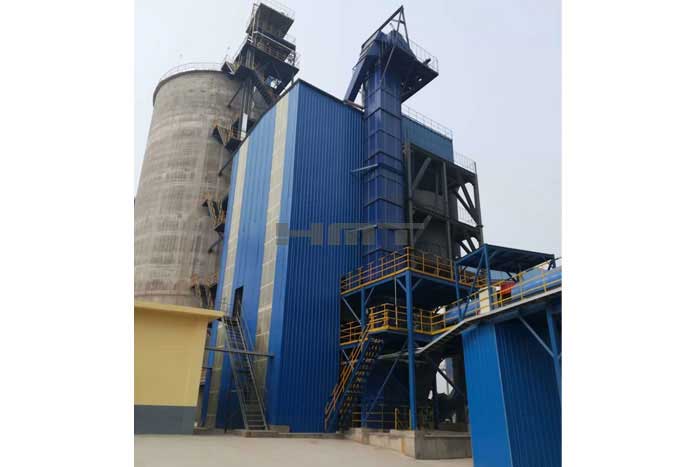

NE bucket elevator is a vertical conveying equipment developed by our company with similar technology from abroad, which has been widely used to lift various bulk materials, such as ore, sand, coal, cement, cement clinker, grain, fertilizer, etc.
In various industrial countries, this type of elevator is widely used to replace the HL and TH type of ring chain elevator choice.

Features

1. Wide lifting range: It can not only lift powder, granular and block materials, but also lift grinding materials. Material temperature ≤250℃.

2. Large conveying capacity: this series of lifting machines have more than NE15-NE800 specifications, lifting range of 10-800m3/h.

3. Small driving power: the machine uses inflow feeding, gravity discharge, the use of intensive layout of large capacity hopper conveying, lifting process almost no material phenomenon.

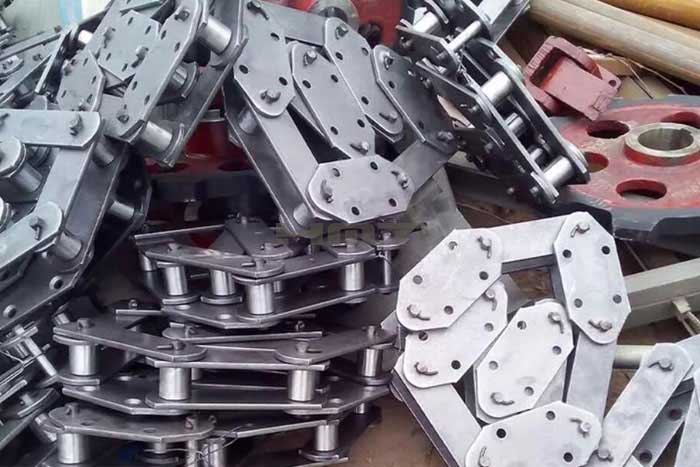

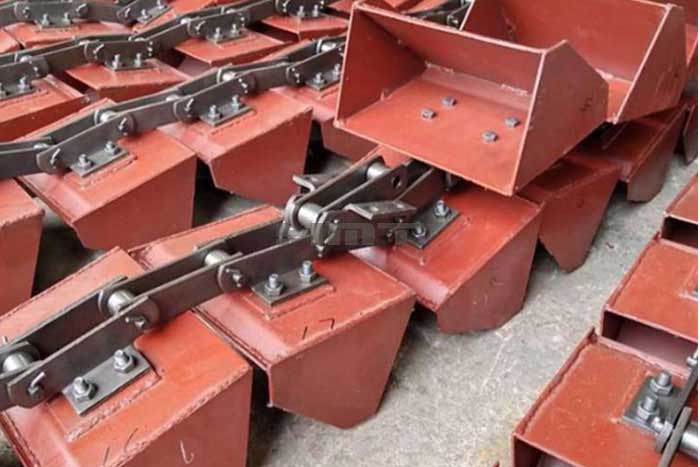

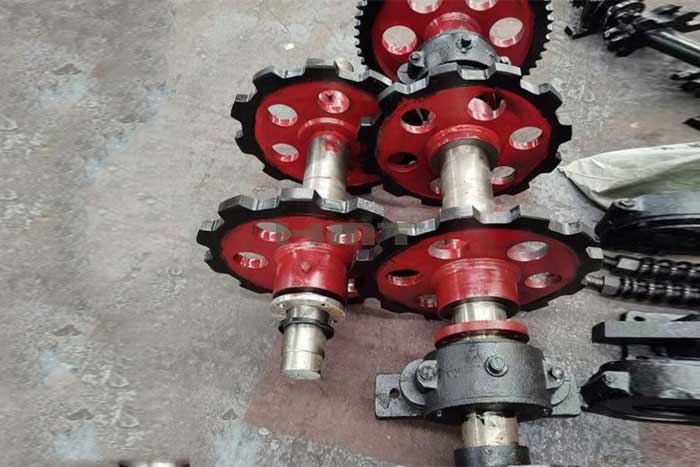

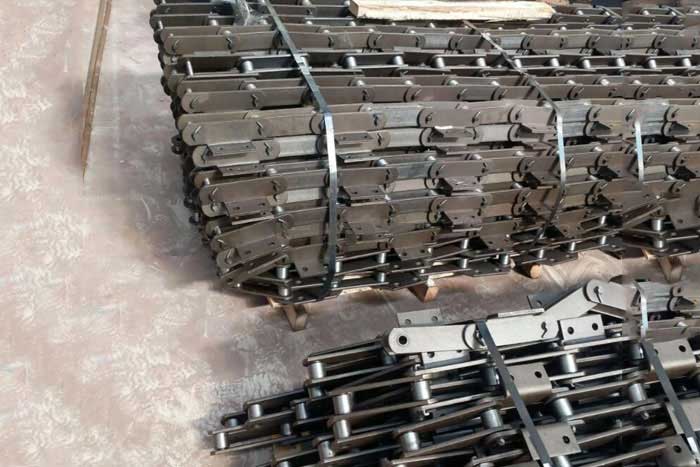

4. Long service life: the conveyor chain adopts wear-resistant chain, the main shaft adopts alloy forging material, and the chain bucket adopts wear-resistant treatment process.

5. Stable operation: The series of elevator chain speed is medium, stable operation, lifting height up to 50 meters.

6. Good sealing, small environmental pollution, easy operation and maintenance, less wearing parts.

PRODUCT DATA:

Model	Hoppere			Maximum Bulk Length of Material（mm）					Lifting Capacity	Motor Powder
	Volume	Distance	Speed	%					（m3/h）	（kw）
	（L）	（mm）	（m/min）	10	25	50	75	100
NE15	2.5	203.2	29.8	65	50	40	30	25	15	1.5-4
NE30	7.8	304.8	30.1	90	75	58	47	40	32	5.5-11
NE50	14.7	304.8	30.1	90	75	58	47	40	60	7.5-18.5
NE100	35	400	31	130	105	80	65	55	110	7.5-30
NE150	52.2	400	31	130	105	80	65	55	165	7.5-45
NE200	84.6	500	30	170	135	100	85	70	220	15-75
NE300	127.5	500	30	170	135	100	85	70	320	18.5-75
NE400	182.5	600	30	205	165	125	105	90	440	22-90
NE500	260.9	700	30	240	190	145	120	100	470	30-90
NE600	300.2	700	30	240	190	145	120	100	600	37-132
NE800	501.8	800	30	275	220	165	135	110	800	55-132

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
