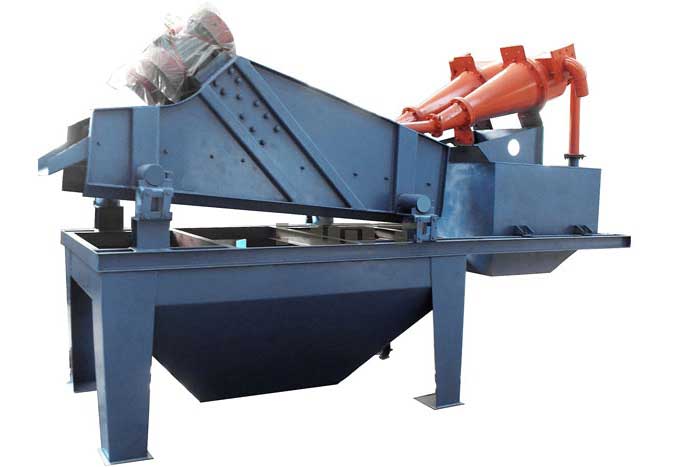

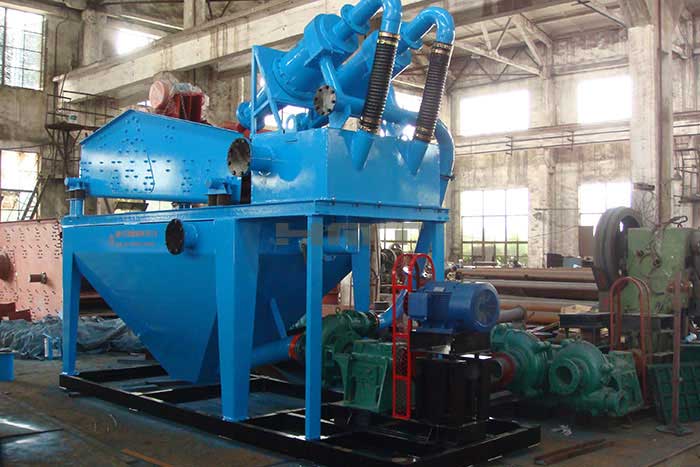

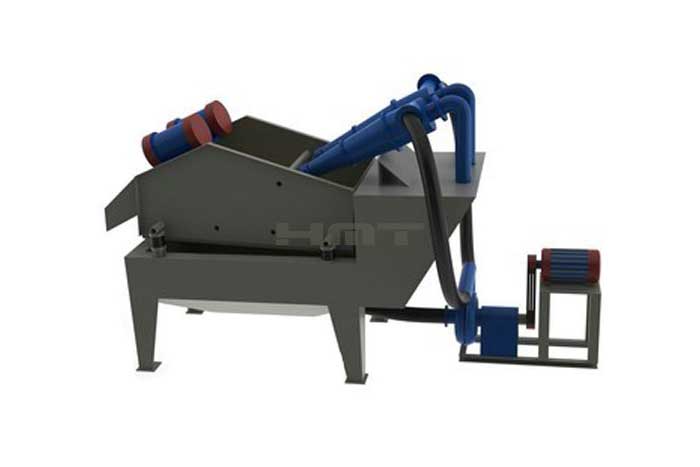

HT Fine Sand Collector

CAPACITY : 30-400t/h

MAX FEEDING SIZE : 1mm

APPLICATION : Aggregate processing system, the processing system of glass raw material, the production line of manufactured

RAW MATERIALS :Artificial sand

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

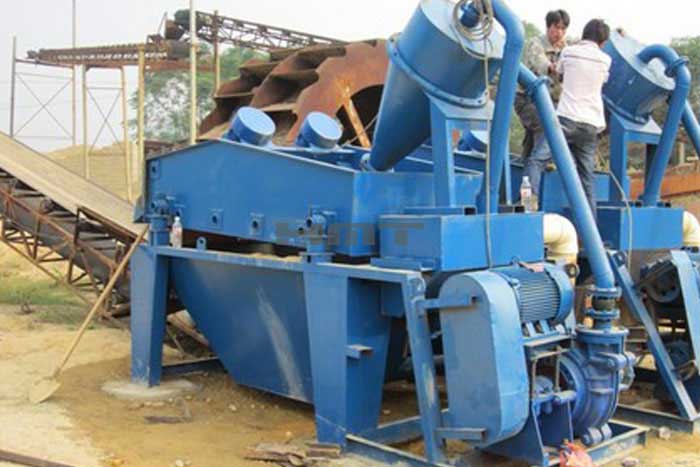

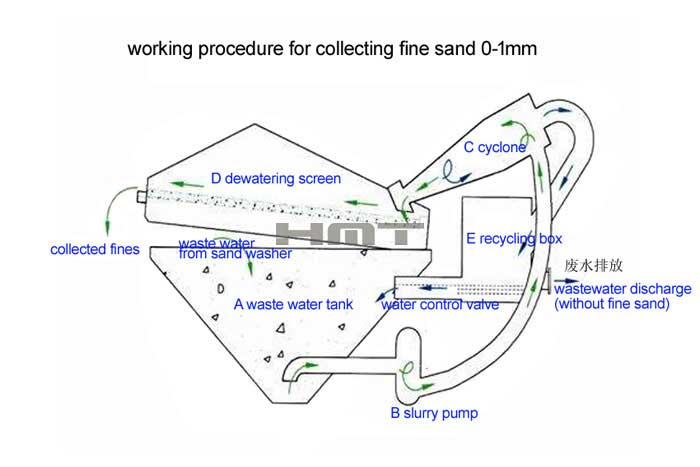

HT Fine Sand Collector is designed on the basis of absorbing world advanced technology. It is widely used in aggregate processing system and manufactured sand production line to solve the fine sand recycling problems.

Features

1. Solving the sand loss problem effectively;

2. Long service life and no blocking phenomenon;

3. Maximum sand recovery rate, unsurpassed technology and economic advantage;

4. Customized specifications according to customers’ requirements;

PRODUCT DATA:

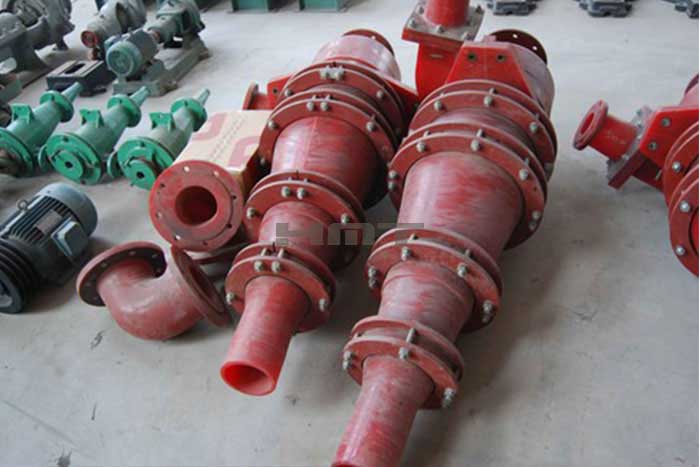

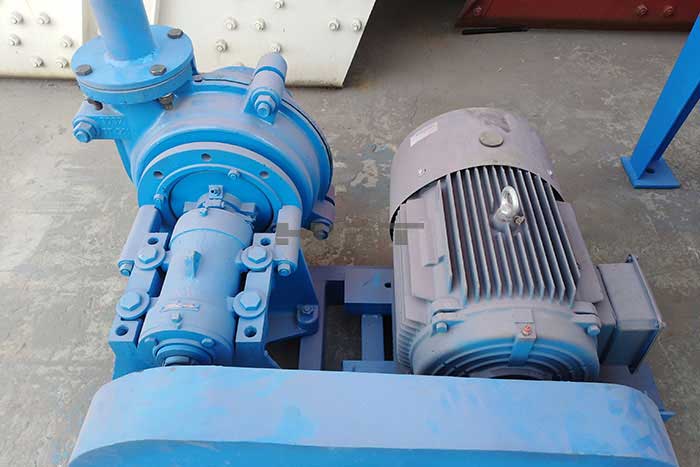

Model	Cyclone Spec.	Slurry Pump Power	Dewatering Screen			Capacity
	Cyclone Spec.	Slurry Pump Power	Size W x L	Mesh Area	Motor Power	Capacity
	（mm）	(kw)	（mm）	（m2）	（kw）	（t/h）
HT-FX250-0924	250	7.5-11	900×2400	2.16	2×0.75	30-60
HT-FX300-1224	300	11-15	1200×2400	2.88	2×1.5	50-70
HT-FX350-1224	350	15	1200×2400	2.88	2×2.2	50-80
HT-FX550-1230	550	22	1200×3000	3.6	2×2.2	80-120
HT-FX750-2040	750	37-45	2000×4000	8	2×11	180-200
HT-FX500-1224	2×250	2×11	1200×2400	2.88	2×2.2	70-130
HT-FX600-1530	2×300	2×15	1500×3000	4.5	2×3	80-160
HT-FX700-1530	2×350	2×15	1500×3000	4.5	2×3	150-200
HT-FX900-1530	3×300	45	1500×3000	4.5	2×3	160-220
HT-FX1000-1840	4×250	2×30	1800×4000	7.2	2×5.5	150-240
HT-FX1050-1845	3×350	45	1800×4500	8.1	2×7.5	190-350
HT-FX1100-1840	2×550	2×22	1800×4000	7.2	2×5.5	200-300
HT-FX1200-1845	4×300	2×30	1800×4500	8.1	2×7.5	160-320
HT-FX1400-2445	4×350	2×30	2400×4500	10.8	2×11	250-300
HT-FX1500-2445	2×750	2×45	2400×4500	10.8	2×11	300-400

Note:
According to the nature of the material, the feeding method is different, the processing capacity will be changed;
