ZSW Eccentric-shafts Vibrating Feeder

CAPACITY : 60-3000t/h

MAX FEEDING SIZE : 450-1600mm

APPLICATION : Metallurgical, coal, mineral processing, building materials, chemical engineering, grinding, etc

RAW MATERIALS :granite, basalt, river stone, limestone, gold ore, iron ore, copper ore, etc

River pebbles
Granite
Basalt
Diabase

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

ZSW eccentric-shafts vibrating feeder is also known as rod vibration feeder, this series of products are configured in the front section of primary crushing equipment, vibration feeder is used in the production process to send block and granular materials from the storage bin evenly, regularly and continuously into the next production equipment, is an indispensable equipment in the complete production line.

It has the characteristics of strong structure, impact resistance and wear resistance. It is widely used in crushing and screening equipment in metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.

The vibrating feeder is divided into three types according to the structure form: (rod + blind plate) vibrating feeder, bar vibrating feeder and double screening vibrating feeder.

Features

1. Heavy duty design, large feeding capacity, stable vibration.

2. The bar structure is designed with dendritic grate, which can prevent material blockage and adjustable grate clearance.

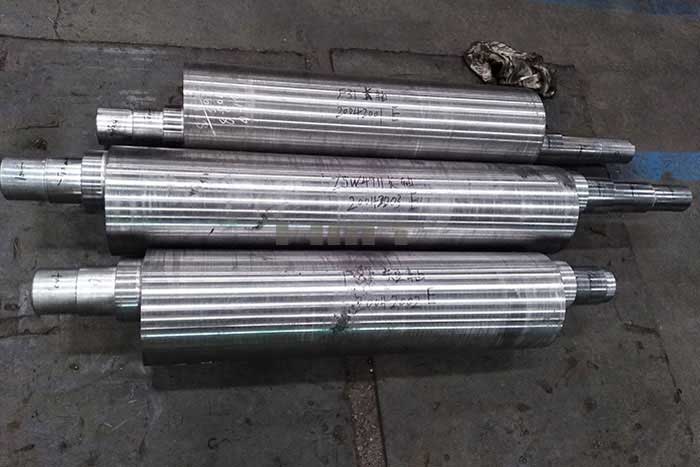

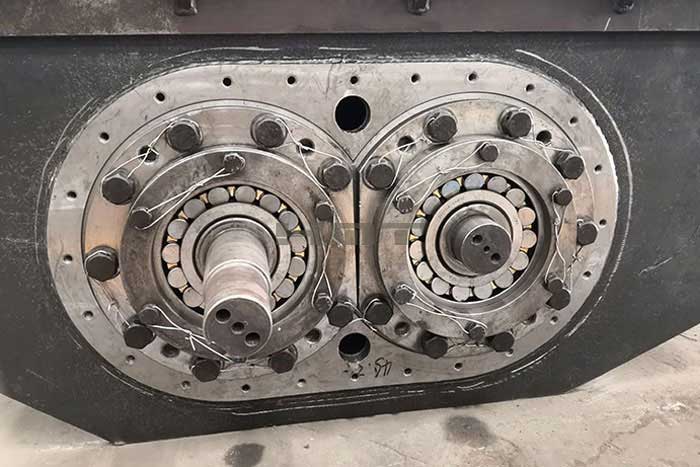

3. Adopts thin oil lubrication, eccentric block exciter of vibration chamber, powerful power.

4. Adopts energy-saving motor, optional frequency conversion controller to achieve accurate adjustment.

5. Installation Angle adjustable from 0 to 15°, side plate bent from the whole plate to prevent tear.

6. Side panel equipped with a wear-resistant plate insde, durable.

7.Coarse and fine material pre-screening, improve the production efficiency of the entire production line, reduce crusher wear.

8. Closed structure body, prevent dust pollution, low noise of the machine

PRODUCT DATA:

Model	Funnel Size LxW	Max Feed edge	Rotate Speed	Capacity	Motor Power	Overall Dimension
Model	（mm）	(mm)	（r/min）	(t/h)	(kw)	(mm)
ZSW0930	3000×900	450	970	60~110	7.5	3050×1430×1550
ZSW3895	3800×950	600	500~800	100~250	11	3880×2175×1957
ZSW4211	4200×1100	700	500~800	150~350	15	4300×2450×2010
ZSW4911	4900×1100	750	500~800	200~380	18.5~22	4957×2371×2125
ZSW5911	5900×1100	750	500~900	300~470	22~30	5957×2467×2151
ZSW4913	4900×1300	750	500~900	400~560	22~30	4980×3277×1525
ZSW6013	6000×1300	900	500~900	450~700	30~37	6080×3277×1525
ZSW6015	6000×1500	1000	500~900	550~1000	37~45	6080×3541×1545
ZSW6018	6000×1800	1200	500~900	750~1500	45~55	6080×3760×1680
ZSW6021	6000×2100	1500	600~900	950~2000	55	6080×4094×1810
ZSW6025	6000×2500	1600	600~900	2000~3000	75	6080×4511×2289

Note:
1. The above capacity in the table is the parameter corresponding to crush the stone with a loose density of 1.6t/m3;
2. According to the nature of the material, the feeding method is different, the processing capacity will be changed;
