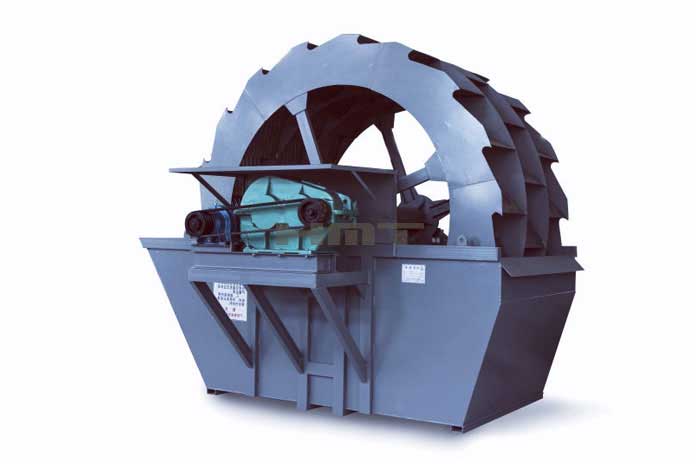

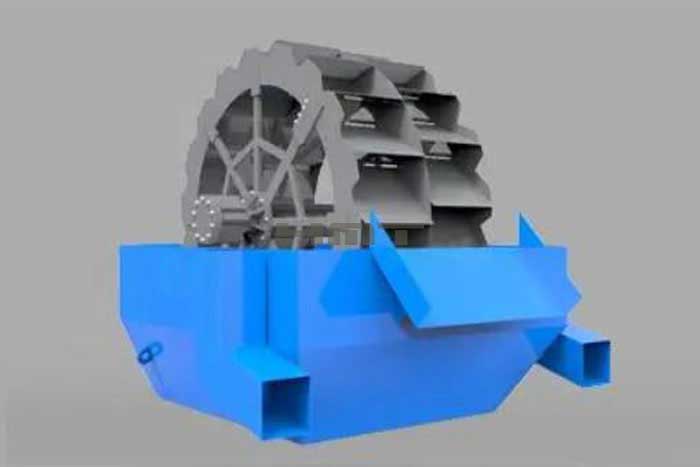

XSD Wheel Bucket Sand Washer

CAPACITY : 20-50t/h

MAX FEEDING SIZE : 10mm

APPLICATION : Aggregate processing system, production line of manufactured sand

RAW MATERIALS :Sand and gravel

Chat Online Get Price List

60s online
customer service

2 days customize
solutions

Factory
visiting anytime

1-10 days dispatch
the goods

One week
of installation

2 days of
training

365 days
after-sales online

Project tracking
regularly

2 days provide
maintenance plan

Pre-sale service

Sales service

After-sales service

Tip1: The specific time arrangement depends on the actual situation. Tip2: Free airport transfer and hotel accommodation.

Introduce

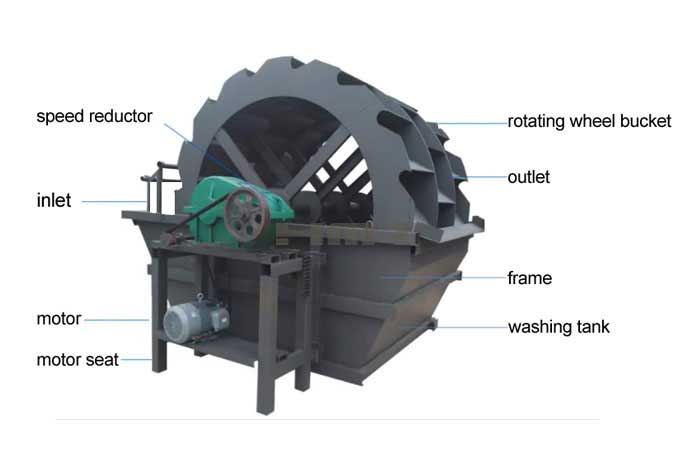

XSD wheel bucket sand washer is a sand washing equipment developed in combination with the actual situation of the sand and stone industry. With the wheel bucket type sand washing equipment used in the sand making machine, it has three functions: cleaning, dehydration and classification.
Widely used in metallurgy, building materials, hydropower and other industries fine-grained and coarse-grained materials washing, grading, impurity removal operations. More suitable for construction sand, road sand.

Features

1. Reasonable structure and convenient maintenance;

2. High processing capacity and low power consumption;

3. Durable vulnerable parts and low cost;

PRODUCT DATA:

Model	Wheel Spec.	Wheel Rotate Speed	Max Feed Size	Capacity	Motor Power
Model	（mm）	（r/min）	（mm）	（t/h）	(kw)
XSD2610	Φ2600×1000	1.2	10	20-50	5.5
XSD2810	Φ2800×1000	1.2		30-60	7.5
XSD2816	Φ2800×1600	1.17		30-75	7.5-11
XSD3016	Φ3000×1600	1.17		80-130	15-18.5
XSD3020	Φ3000×2000	1.17		100-150	18.5
XSD3022	Φ3000×2200	1.17		120-160	18.5
XSD3024	Φ3000×2400	1.18		130-180	18.5
XSD3220	Φ3200×2000	1.18		180-240	18.5-22
XSD3226	Φ3200×2600	1.18		200-260	22
XSD3526	Φ3500×2600	1.18		250-280	22-30
XSD3620	Φ3600×2000	1		260-300	22-30
XSD3624	Φ3600×2400	1		280-350	30

Note:
According to the nature of the material, the feeding method is different, the processing capacity will be changed;
